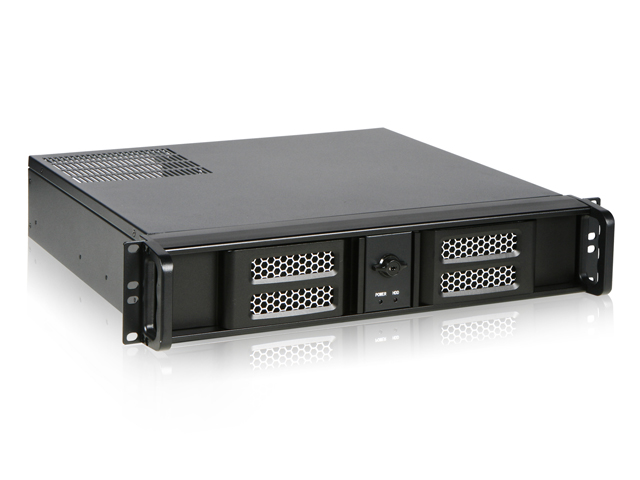

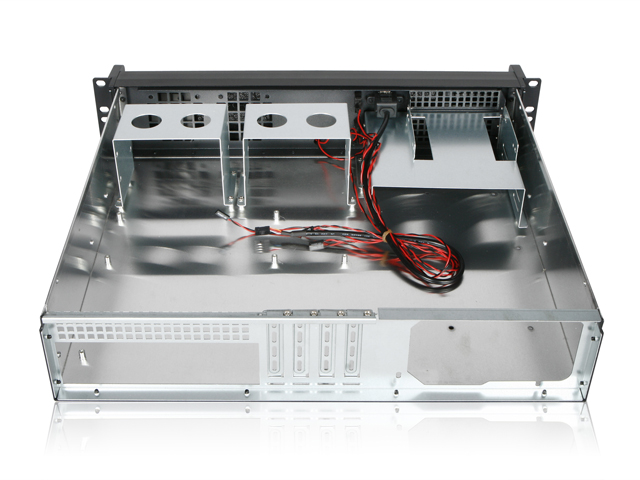

	D-213ASE-MATX 2U Compact Aluminum Rackmount microATX Chassis Industrial Chassis with 15" in Depth Front Access USB2.0 Power and HDD LED Power and Reset Switch Support ATX PS2 Power Supply Support 4 x Low-profile Add-on Cards Aluminum Chassis
Product Introduction D-213ASE-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplate supports 4 low profile add-on cards. This chassis is only 15" in depth with aluminum material. In addition, D-213ASE-MATX supports a standard ATX PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-213ASE-MATX
RoHS Compliance Version	Yes

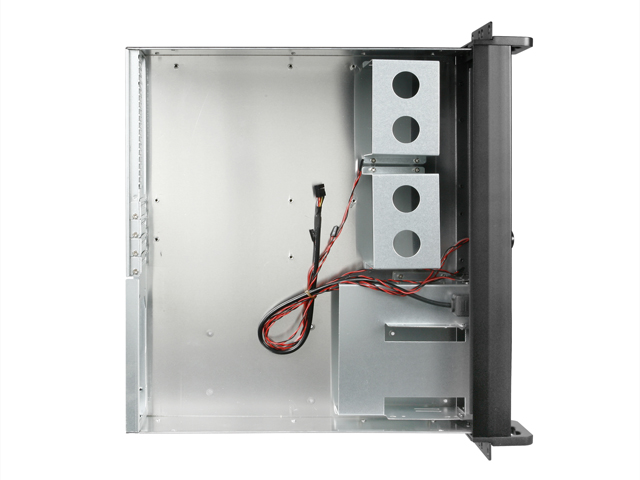

Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 2 5.25" Drives: 1
Indicators	Power, HDD
Switches	Power, Reset

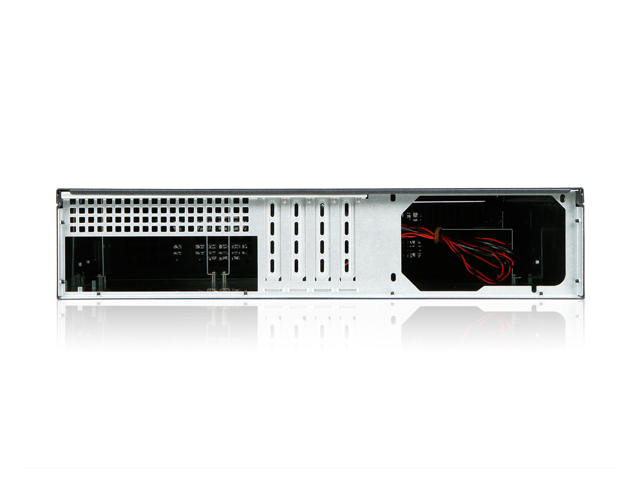

Expansion Slots	4 (Low profile)
Security	Front Bezel
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Aluminum
Color of Front Bezel	Black
Color of Main Chassis	Black

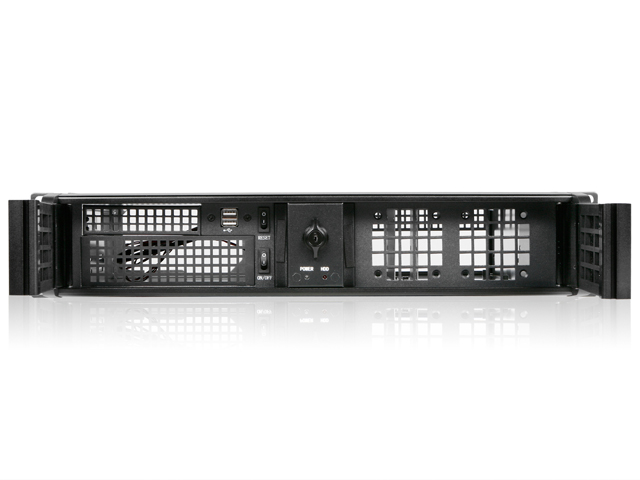

Front Connector	1x USB 2.0

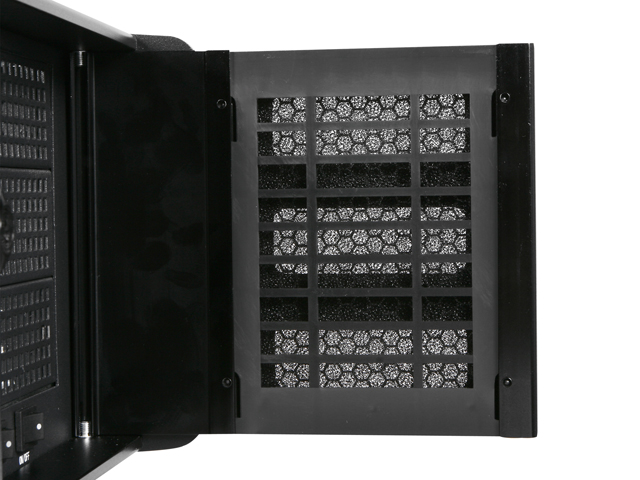

Air Filter	Removable & Washable
Motherboard Size	9.6 x 9.6 (microATX)
Optional Fan:	60mm x2
Dimensions (WxHxD)	19.00" x 3.50" x 17.50" 482.6 mm x 88.9 mm x 444.5 mm

Download

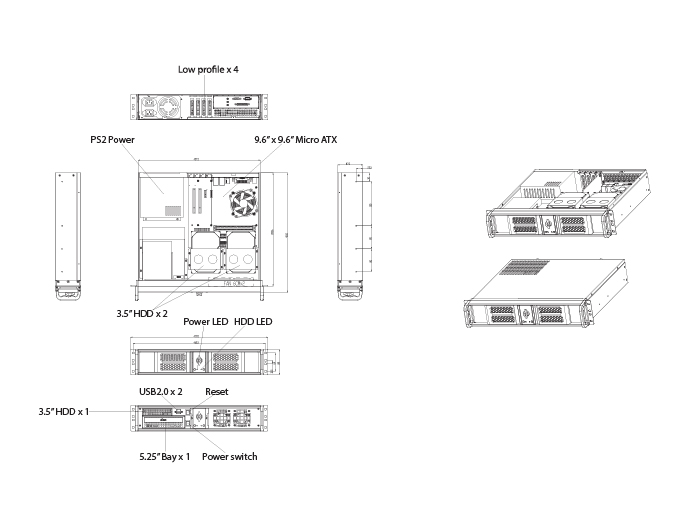

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-FDD35	3.5" to 5.25" Floppy Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD2535F	End of Life - 5.25" Drive Bay Cooling System for Hard Drive
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
