FS-13280

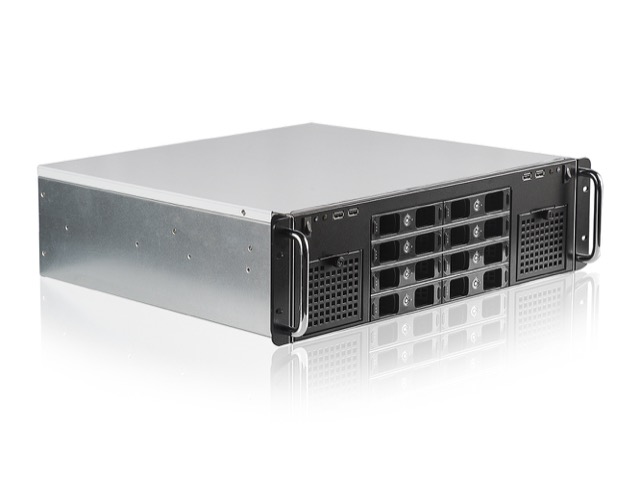

3U Rackmount chassis for 2 x Mini-ITX systems
  • 3U rackmount server chassis for 2 x Mini-ITX motherboards
  • Removable fan cage door and filters; DC cooling fans
  • Steel construction for industrial applications.



Product Introduction
FS-13280 is a 3u rackmount chassis support dual Mini-ITX System. Featured 8 x hot swappable 3.5" , 2 x front accessible fan filter. Support 2 x 2.5" and 2 x 3.5" HDD, 2 x full height expansion cards and dual FLEX ATX power supply.


Model NumberFS-13280
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2 x 2.5" and 2 x 3.5"
Hot Swappable Drive Bay: 8 x 3.5" HDD Tray
Form Factor:3U
Mother Board:Mini-ITX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight30
Mounting OptionOptional Sliding rails
Front LED Indicator 2 x Activity; 2 x Power
Front USB Port4 (2 x 2)
Front Power Switch2
Memory Height Accepts standard size
Expansion Slot2 x PCI
Cooling System:4 x 60mm and 2 x 80mm fan
I/O Shield Standard I/O
Power Supply3U Power Supply
Dimensions (WxHxD)19.00" x 5.19" x 17.56"
482.6 mm x 131.8 mm x 446.0 mm


Download
FAQ


There are no FAQ entries for this model.
