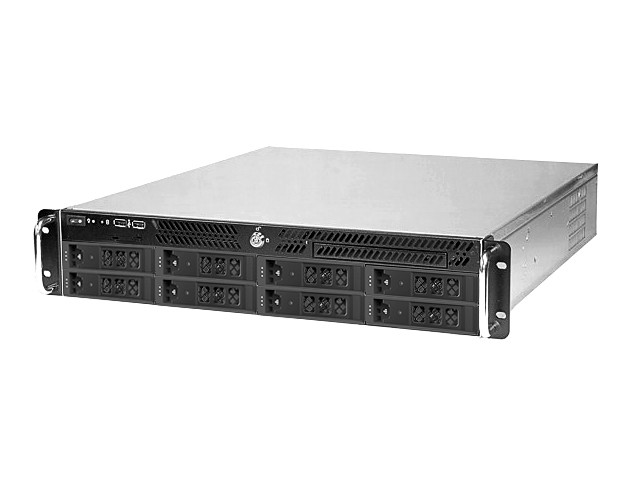

FS-12380
2U Rackmount chassis for Micro-ATX systems
  • 2U industrial rackmount platform for Micro-ATX motherboards (9.6" x 9.6")
  • Supports: 8 x hot-swap, 4 x low profile expansion.
  • Excellent cooling system with 80mm rear fan.



Product Introduction
FS-12380 is a 2u rackmount chassis support MATX motherboard. Featured 8 x hotswappable 3.5" HDD . Support Slim optical drive, internal 1 x 3.5" or 1 x 2.5" HDD, 4 x low profile expansion cards and PS2 ATX power supply.


Model NumberFS-12380
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 1 x 3.5" OR 1 x 2.5"
Hot Swappable Drive Bay: 8 x 3.5" HDD Tray (Front)
Optical Drive Bay: 1 (Slim)
Form Factor:2U
Mother Board:Micro-ATX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight30
Mounting OptionOptional Sliding rails
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch1
Front Audio In/Out1
Memory Height Accepts standard size
Expansion Slot4 x Low Profile
Compact Flash Slot1
Cooling System:1 x 80mm fan
I/O Shield Standard I/O
Power SupplyPSII 300W/400W/500W/600W
Dimensions (WxHxD)19.00" x 3.46" x 19.13"
482.6 mm x 87.9 mm x 485.9 mm
