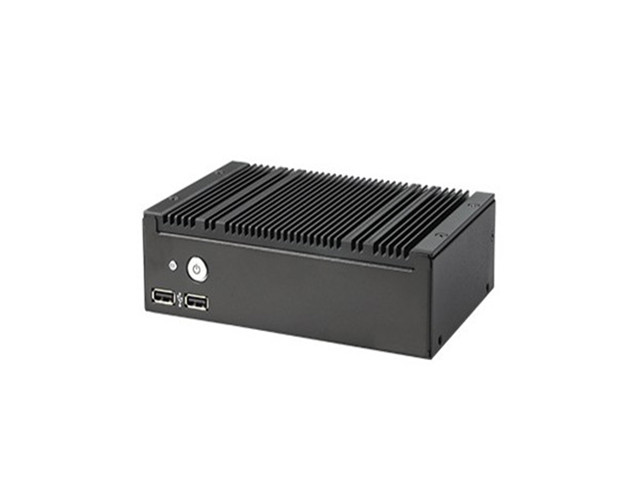

FS-1231
Fanless Chassis for 3.5 inch SBC
  • For 3.5 inch Embedded Board Form factor ASROCK SBC-230 Motherboard with CPU TDP 6W.
  • Simple assembling and Easy system integration
  • Silent, dust-free & energy-efficient operation.



Product Introduction
FS-1231 is a fanless chassis designed for ASROCK SBC-230 mother board. Support 2.5" HDD and USB 3.0 x 2. Aluminum heat sink top cover transfer heat from CPU and chipset to keep the system cool.


Model NumberFS-1231
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1
Mother Board:3.5 inch Embedded Bo
Material Zine-Fe Alloy Sheet
FinishBlack wet paint with texture coat
ColorBlack/Customizable colour
Front LED Indicator 1 x Disk activity (Orange light) ;
Front USB Port2
Front Power Switch1
Memory Height Accept standard size
Cooling System:?*Thermal pads / Copper thermal block combination...
Back Panel USB PortUSB 3.0x2
GPIO1
COM4
HDMI1
ANT1
Gigabit LAN2
VGA1
Audio IN / OUT1
External Adapter Input60W: Input (AC 100~240V);
External Adapter OutputOutput (DC 12V@5A)
Dimensions (WxHxD)4.50" x 2.10" x 6.80"
114.3 mm x 53.3 mm x 172.7 mm
