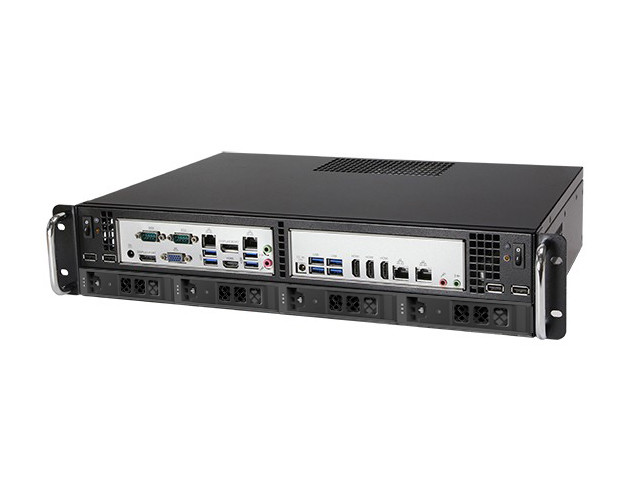

FS-12242
2U Rackmoount chassis for 2 x Mini-ITX systems
  • 2U rackmount server chassis with two mini-ITX systems
  • Standard I/O shield in the front design for easy access
  • 2 x 8 cm two ball bearing fans
  • Steel construction design for industrial environment
  • Support up to 4 x 3.5”Serial ATA trays



Product Introduction
FS-12242 is a unique designs 2U chassis support dual Mini-ITX system with 4 x 3.5" Hot Swapple Drive Bays.Also support 2 x 2.5" internal HDD/SSD and FLEX ATX power supply.


Model NumberFS-12242
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2 x 2.5"HDD
Hot Swappable Drive Bay: 4 x 3.5"HDD
Form Factor:2U
Mother Board:Mini-ITX?
Material All aluminum chassis construction
FinishBlack wet paint textured coat
ColorBlack. Customizable colour
Front LED Indicator 2 x disk activity (Orange light) ; 2 x power on (B...
Front USB Port2x2 (USB 2.0)
Front Power Switch2
Memory Height Accept standard size
Expansion Slotnone
Cooling System:8cm fan x 2
I/O Shield 2 (not included)
Power SupplyFlex ATX 250/300/400 watts Power Supply (AC 110~24...
Dimensions (WxHxD)19.00" x 3.46" x 12.80"
482.6 mm x 87.9 mm x 325.1 mm
