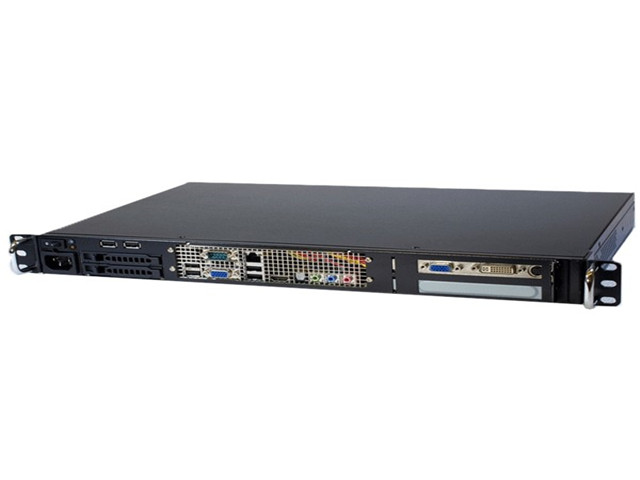

FS-11901
1U rackmount with Multi I/O on the front panel
  • 1U rackmount server chassis for Mini-ITX systems.
  • Front panel I/O placement for easy access
  • Supports: 2 x PCI OR 1 x PCIe expansion slot & 2 x 2.5" hot-swap

Product Introduction
FS-11901 is another unique 1u chassis feature 2 x 2.5" hot swappable drive bays ,front IO and front power supply for easy access. Support mini-ITX motherboard and FLEX ATX power supply.


Model NumberFS-11901
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2 x 2.5" HDD
Hot Swappable Drive Bay: 2 x 2.5" HDD
Form Factor:1U
Mother Board:Mini-ITX
Material Lightweight aluminum alloy and CRS
FinishBlack wet paint textured coat
ColorBlack
Weight10
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch2
Memory Height Accepts standard size
Expansion Slot2 x PCI cards OR 1 x PCIe card
Expansion Slot NotesFront Panel Access
Cooling System:2 x 40mm fan
I/O Shield Standard I/O (Front Panel Access)
Power SupplyFlex ATX 250W/300W/400W
Additional1 x Power socket (Front Panel Access)
Dimensions (WxHxD)19.00" x 1.73" x 11.50"
482.6 mm x 43.9 mm x 292.1 mm
