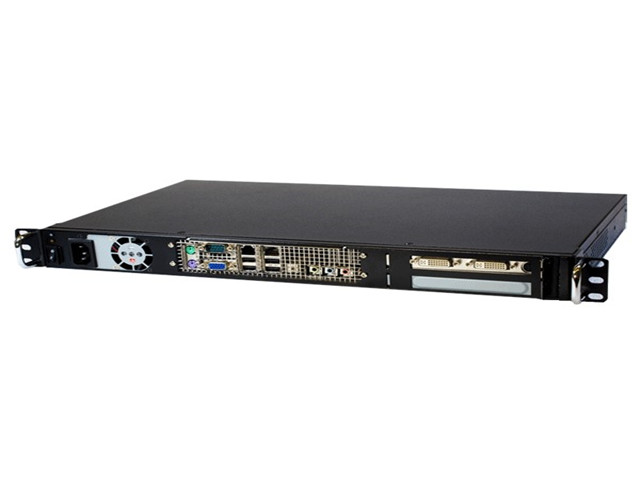

FS-11900
1U chassis with Multi I/O on front panel
  • 1U rackmount server chassis for Mini-ITX systems.
  • Front panel I/O placement for easy access
  • Supports: 2 x PCI OR 1 x PCIe expansion slot

Product Introduction
FS-11900 is a very unique 1u chassis feature front IO and front power supply for easy access.Support mini-ITX motherboard and FLEX ATX power supply.


Model NumberFS-11900
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 1 x 3.5" OR 2 x 2.5"
Form Factor:1U
Mother Board:Mini-ITX
Material Lightweight aluminum alloy and CRS
FinishBlack wet paint textured coat
Weight10
Front LED Indicator 1 x Activity; 1 x Power
Front Power Switch1
Memory Height Accepts standard size
Expansion Slot2 x PCI cards OR 1 x PCIe card
Cooling System:2 x 40mm fan
I/O Shield Standard I/O (Front Panel Access)
Power SupplyDC Solution or Flex ATX 250W/300W/400W
Additional1 x Power Socket (Front Access)
Dimensions (WxHxD)19.00" x 1.73" x 11.10"
482.6 mm x 43.9 mm x 281.9 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Motherboard

Motherboard Model Number
Processor System
Expansion Slot
Memory
Ethernet
SATA
Rear I/O
Internal Connector
Speaker Header
Watchdog Timer
Power Requirements
Environment
Graphics

Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
