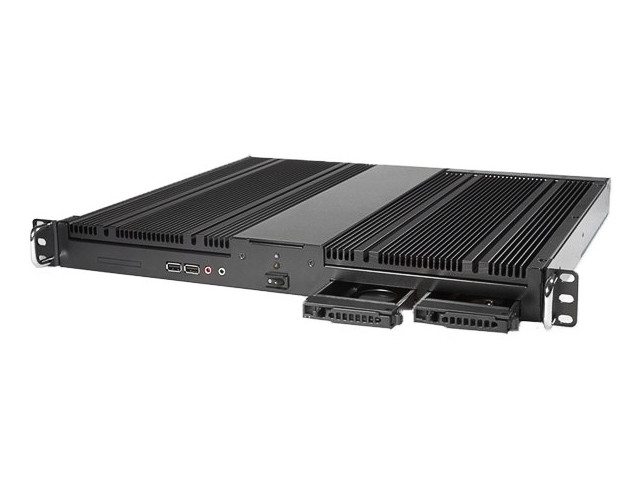

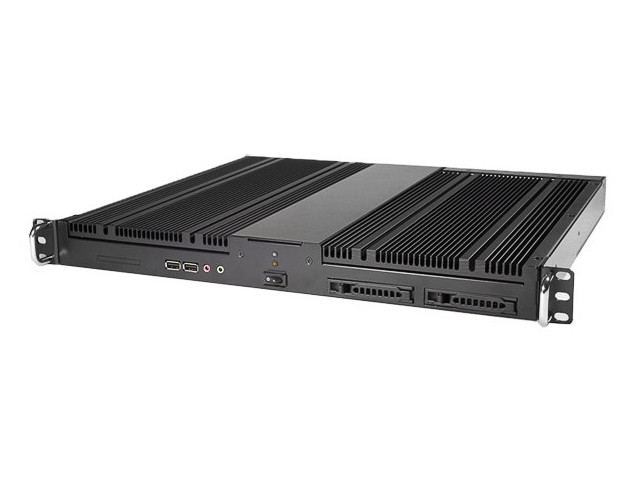

FS-11101
1U rackmount fanless chassis for Mini-ITX
  • Dual extensive aluminum-made heat sinks
  • Primary heat sink for CPU: TDP 35W; Secondary heat sink forexpansion card: TDP 45W.
  • Supports 1 x expansion slot; 2 x 2.5" hot-swap



Product Introduction
FS-11100 is a 1U rackmount Fanless chassis. Support Mini-ITX motherboard and 1 x full height expansion slot. Featured 2 x hot swappable 2.5" hdd and oversize top aluminum lid for best heat dissipation.


Model NumberFS-11101
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2 x 2.5" HDD
Hot Swappable Drive Bay: 2 x 2.5" HDD
Form Factor:1U
Mother Board:Mini-ITX
Material Aluminum chassis with stylish aluminum front bezel
FinishBlack wet paint textured coat
ColorBlack
Weight20
Mounting OptionOptional sliding rail, rear/center mount brackets
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch1
Front Audio In/Out1 x Line Out
MIC 1
Memory Height Accepts standard size
Expansion Slot1 x PCI
Compact Flash Slot1 x CF Cutoff (Front)
I/O Shield 2 x Universal I/O
DB9 Cutoff Hole2
Dimensions (WxHxD)19.00" x 1.73" x 15.60"
482.6 mm x 43.9 mm x 396.2 mm
