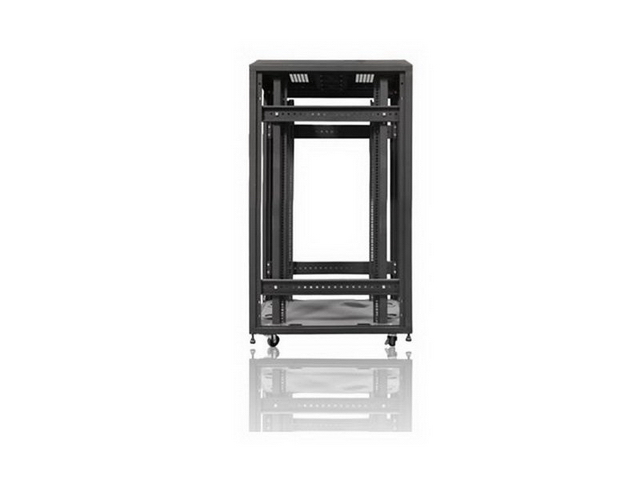

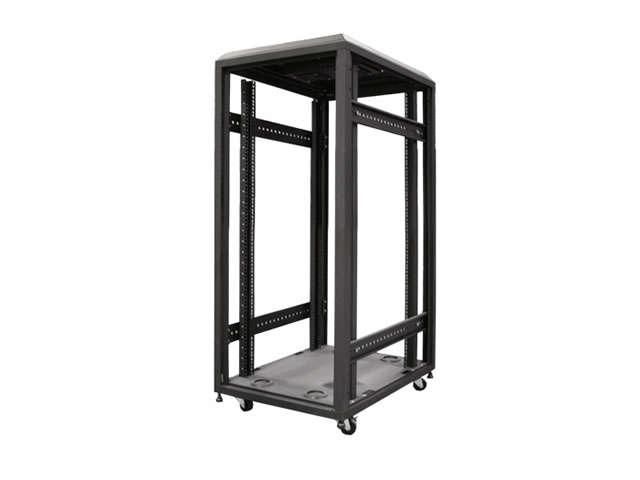

WX-228
22U 4-Post Open Frame Rack
  • Universal Fit Most of Rackmount Chassis and Equipment
  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
  • Fit of Rack-mount Chassis
  • Optional Side Panels
  • Optional Front/Rear Doors
  • Locking Mechanism Design on Casters
  • Comes with M5 Mounting Screws and Cage Nuts



Product Introduction
WX Series 4-Post open frame rack is built with high-quality aluminum/steel structures. This stylish 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat. WX series comes with castors and leveling feet help moving and setting equipment easily to any location. It is a flexible and cost-effective solution for rack-mount devices.


Model NumberWX-228
RoHS Compliance VersionYes
Form Factor22U
MaterialHorizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm
ColorBlack (RAL9011)
Loading Capacity2200 lbs
Supported Chassis Depth29" and under
Internal Dimensions Height: 39.75"
Depth: outer post-to-post 26.5" max
Dimensions (WxHxD)23.50" x 47.75" x 31.50"
597 mm x 1,213 mm x 800 mm

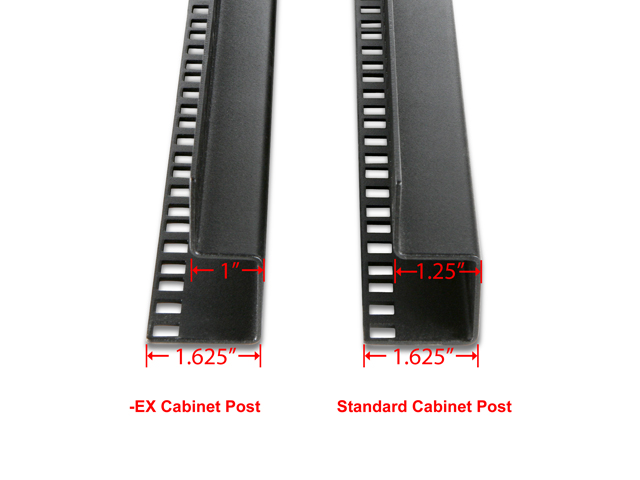

Notes- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-228-EX.
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-KBR80B1U Compact Sliding Keyboard Drawer
WA-LB80BCabinet Supporting Bar
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PD01616 Outlet Lightening Surge Protection Power Distribution Unit
WA-PS010Build-to-Order - 10 Outlet Power Strip
WA-PS012Build-to-Order - 12 Outlet Power Strip
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SF80BHeavy Duty Rackmount Shelf
WA-SFR80BHeavy Duty Sliding Tray
WA-SF120-2FANCabinet 2x 120mm AC Cooling Fans
WA-3FAN-120AC3 x 120mm AC Cooling Fans for Cabinet
WL-217011U Rackmount 17" TFT LCD Keyboard Drawer
WL-217081U Rackmount 17" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WL-219011U Rackmount 19" TFT LCD Keyboard Drawer
WL-219081U Rackmount 19" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
