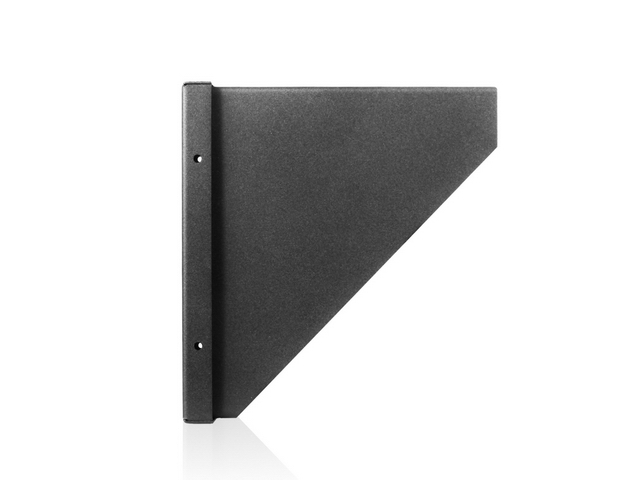

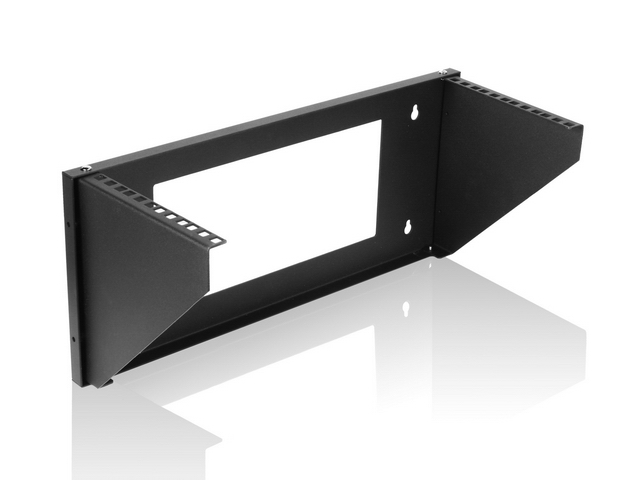

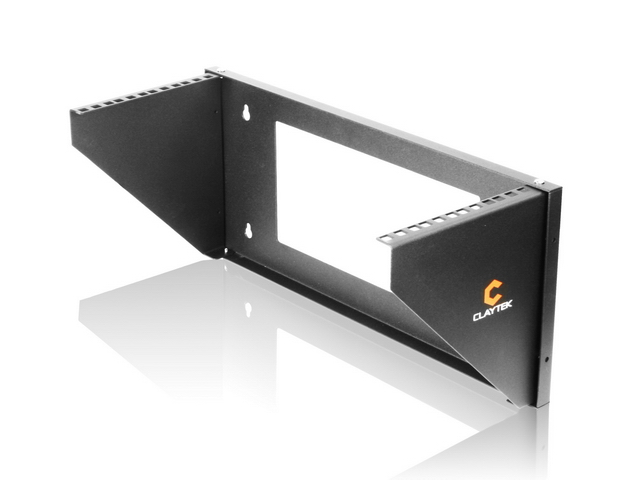

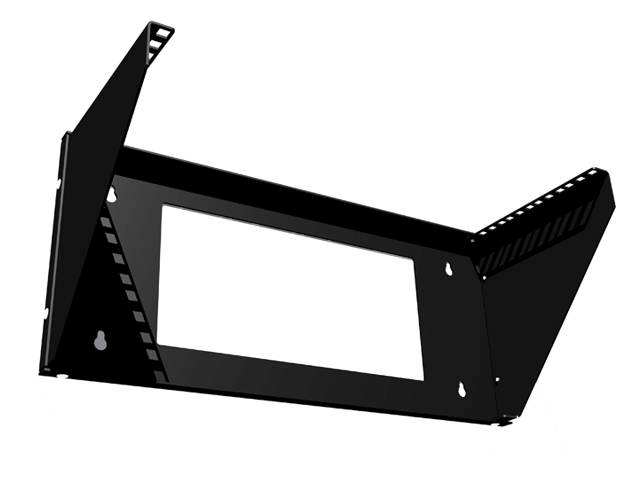

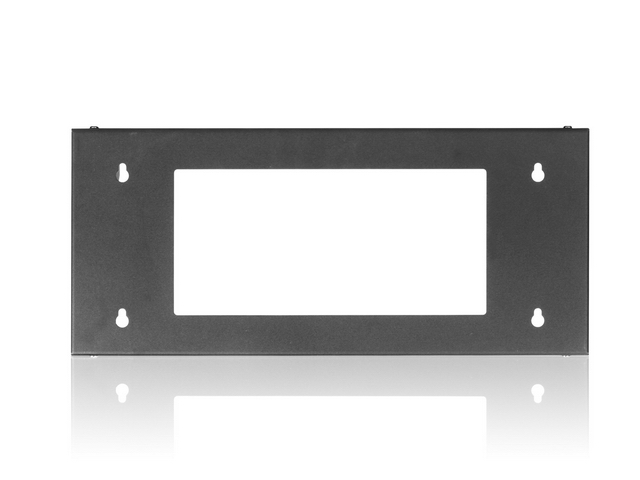

WUT-40B
4U Vertical Rack for Rack-mountable Equipment
  • Mount telecommunication equipment flush with the wall
  • Mount switches under a desk to free up work space
  • Compatible with most 19" rack mountable equipment
  • Meet EIA-310 19" rack standards
  • Equipment can be vertically wall mounted or horizontally mounted under a desk

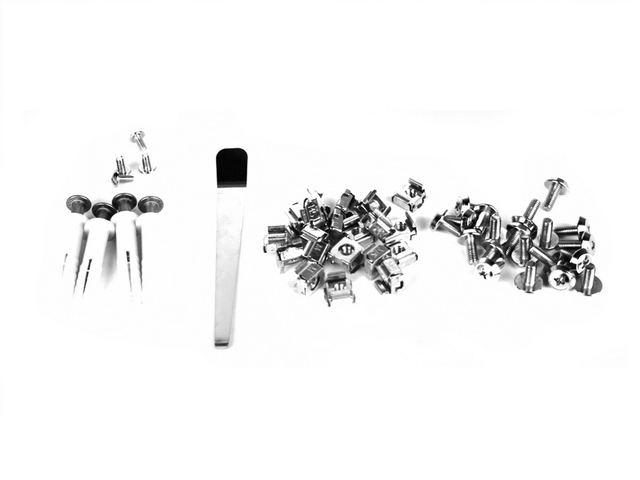

  • Comes with M5 Mounting Screws and Cage Nuts

Product Introduction
WUT series is perfect for small office environments which are lack of space for full size rack-mounted equipment. WUT-40B offers a versatile storage solution for rack-mountable devices, such as power strips, patch panels, switches, routers, and etc, to be mounted vertically against a wall or horizontally under a desk to save space. The mounting holes of the unit are positioned at exactly 16in apart, matching standard construction framework, for greater stability.


Model NumberWUT-40B
RoHS Compliance VersionYes
Form Factor4U
MaterialSteel
Loading Capacity165 lbs
Dimensions (WxHxD)19.50" x 8.70" x 7.70"
495 mm x 221 mm x 196 mm
