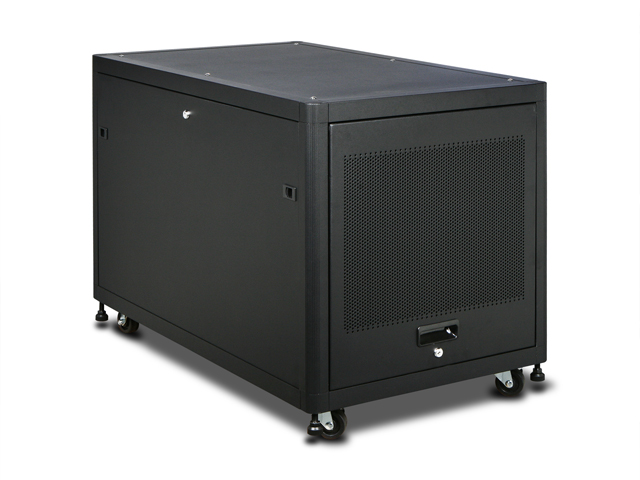

WSE-1010

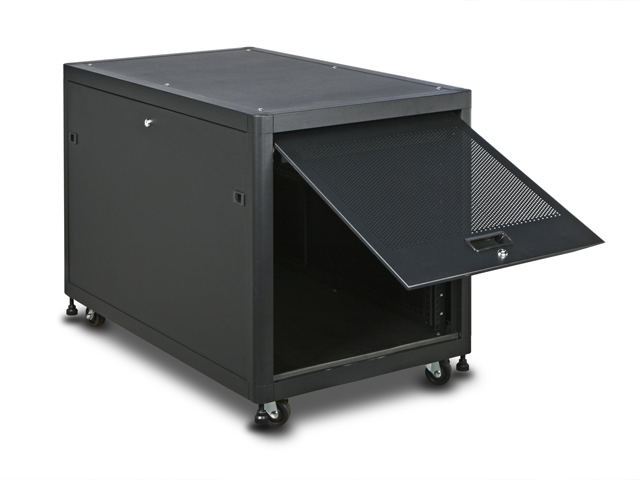

10U 1000mm Depth Stylish Rackmount Cabinet

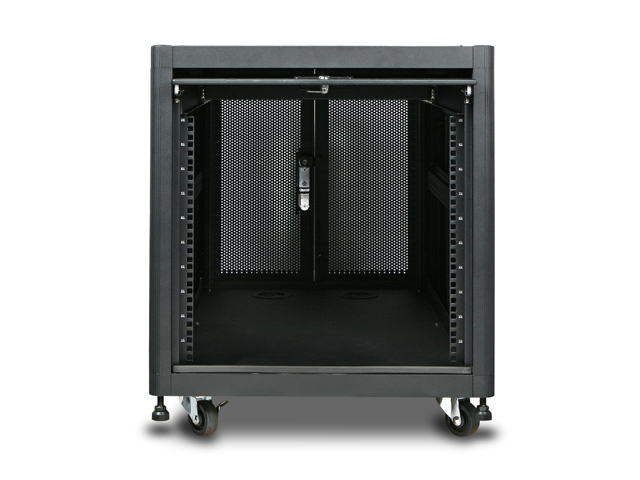

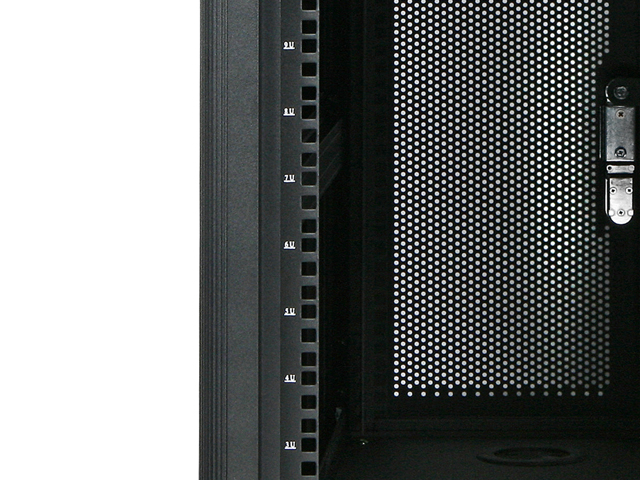

  • Universal fit most of rackmount chassis and equipment

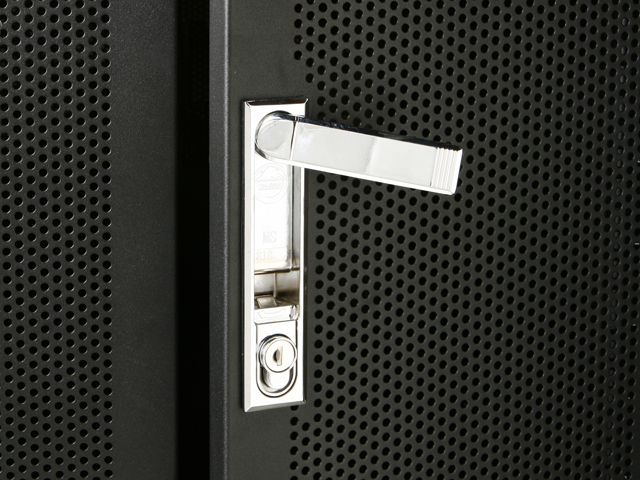

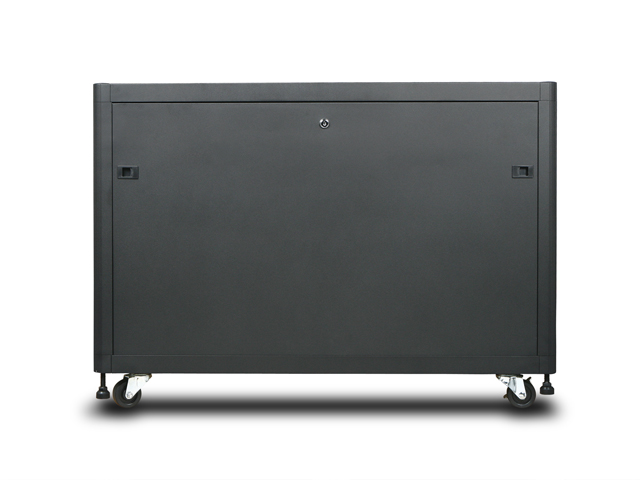

  • Front, rear, and side security key lock to prevent unauthorized access to equipment and data
  • Easy cabling management. cable entry provided at the rear bottom
  • Optional 120mm AC cooling fans (WA-SF120-2FAN) can be installed on the rear door to provide excellent air circulation

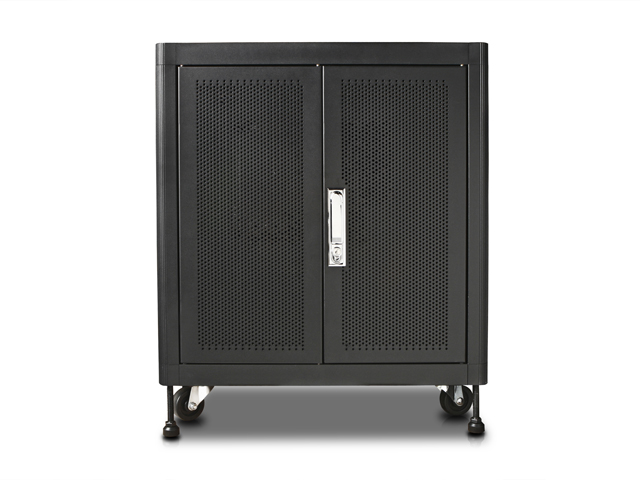

  • Vented doors provide maximum air flow

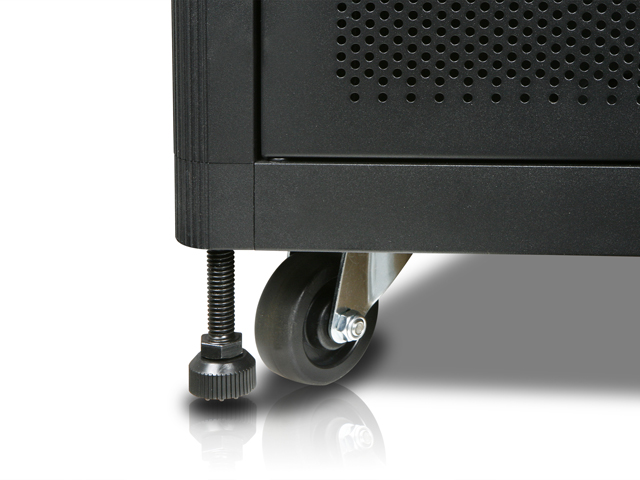

  • Locking mechanism design on casters

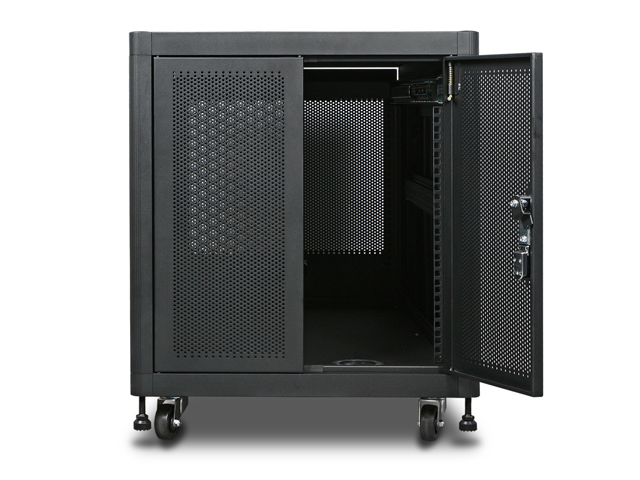

  • Double rear doors provide convenience and take less space to open
  • Compatible with HP/Dell/ IBM servers equipped with sliding rails
  • Comes with M5 Mounting Screws and Cage Nuts

Product Introduction
WSE-1010 cabinet is built with high-quality steel structures with rear vented doors and optional 120mm cooling fans to provides excellent air circulation for servers and other devices. The 10U space supports any combination of standard rack mount servers or equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications. This stylish and secure rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WSE-1010 offers a superior environment for mission-critical equipment.


Model NumberWSE-1010
RoHS Compliance VersionYes
Form Factor10U
ColorBlack
Loading Capacity2200 lbs
Supported Chassis Depth36" and under
Internal Dimensions Depth: 36" max
Coolingup to 2 sets of 120mm 120V AC fans can be installed on the rear
Dimensions (WxHxD)23.60" x 28.00" x 39.40"
599 mm x 711 mm x 1,001 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-P1UB1U Cabinet Front Cover Plate
WA-P2UB2U Cabinet Front Cover Plate
WA-P3UB3U Cabinet Front Cover Plate
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-SF120-2FANCabinet 2x 120mm AC Cooling Fans
WA-DT04141U Digital Temperature Unit
WA-3FAN-120AC3 x 120mm AC Cooling Fans for Cabinet
TC-A100B1U IPC Keyboard and Drawer
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-SFH40B2U Supporting Tray
2U Compact 6x 3.5" Bay Trayless Hotswap microATX Chassis

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
