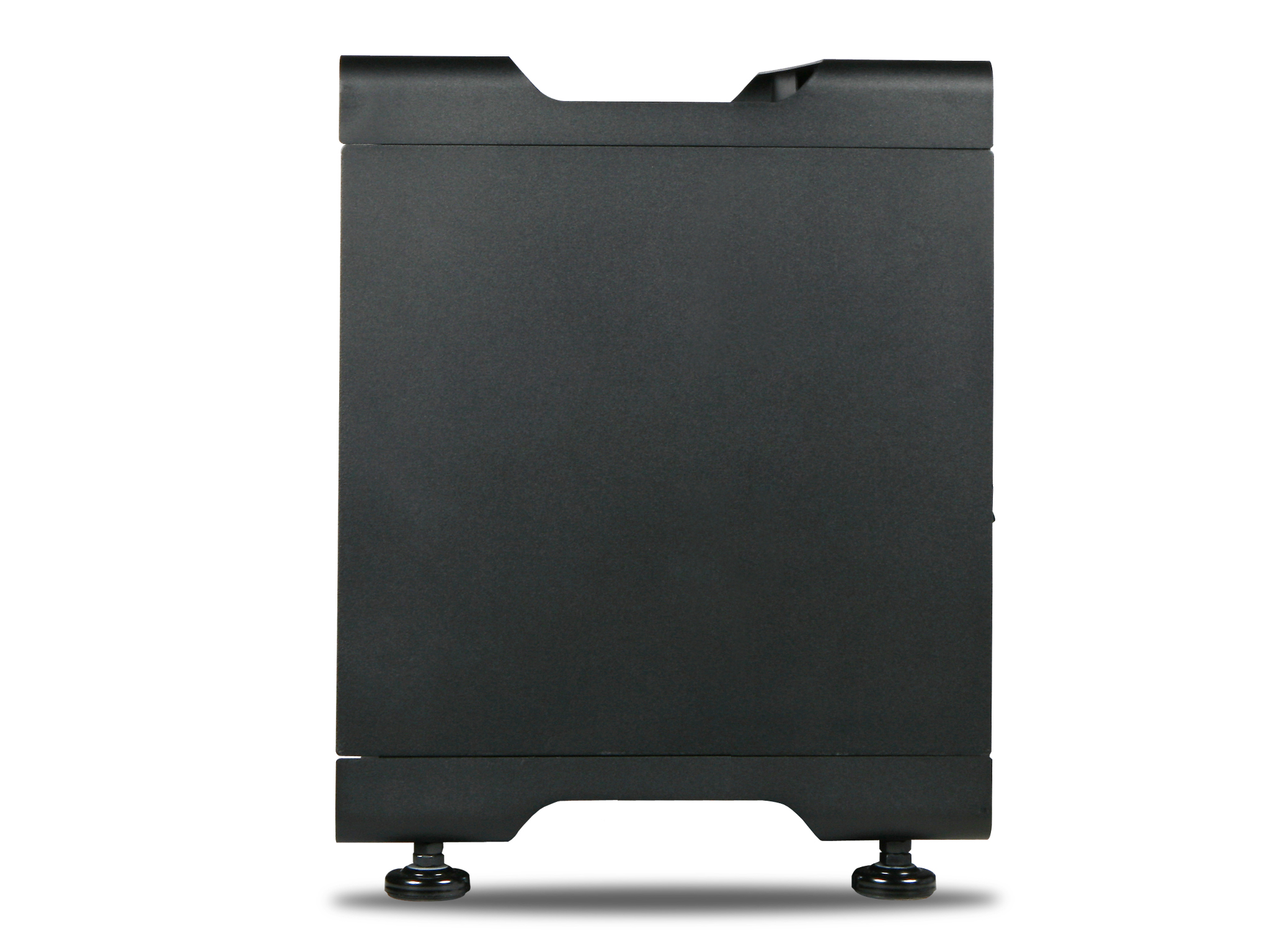

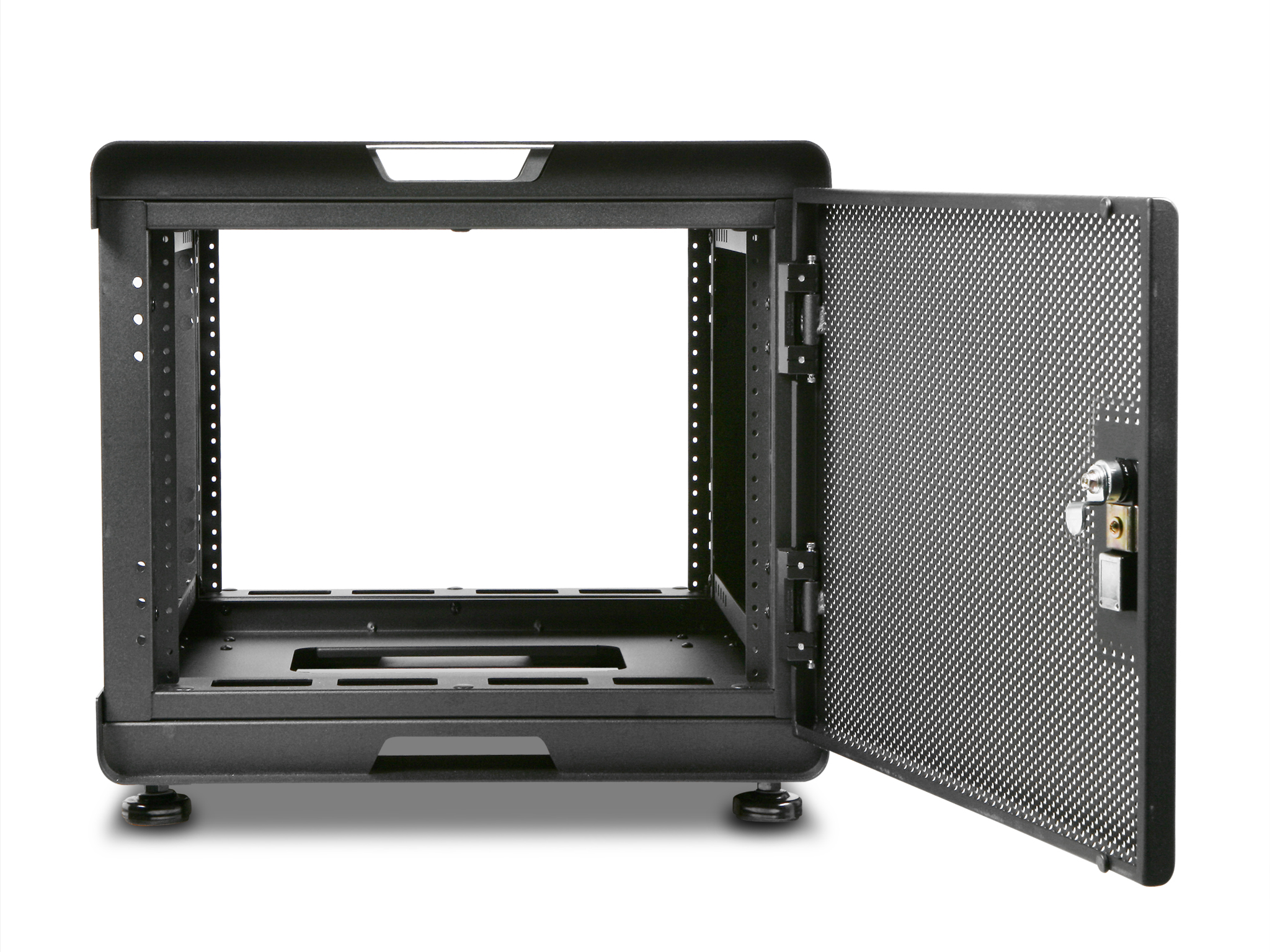

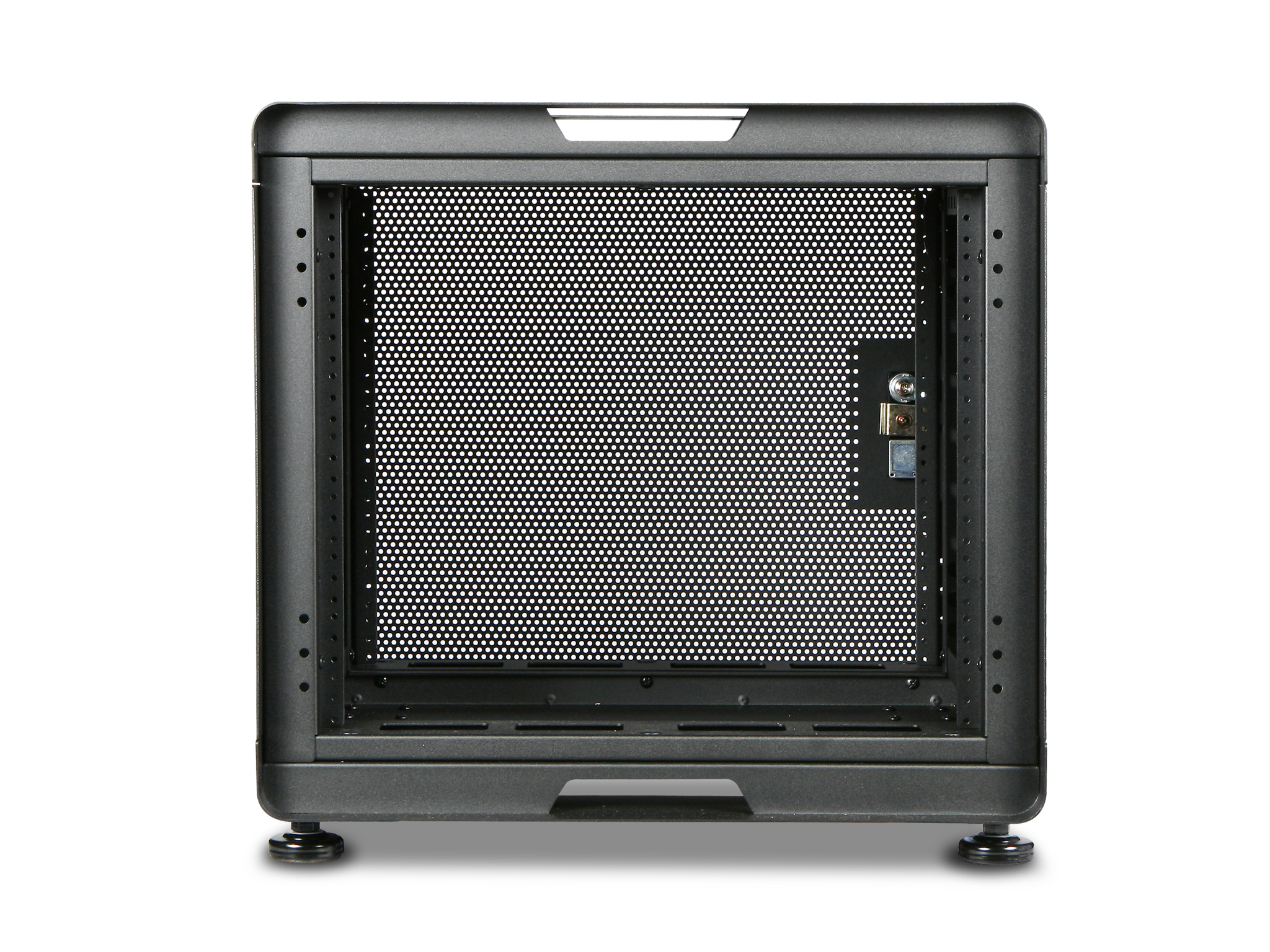

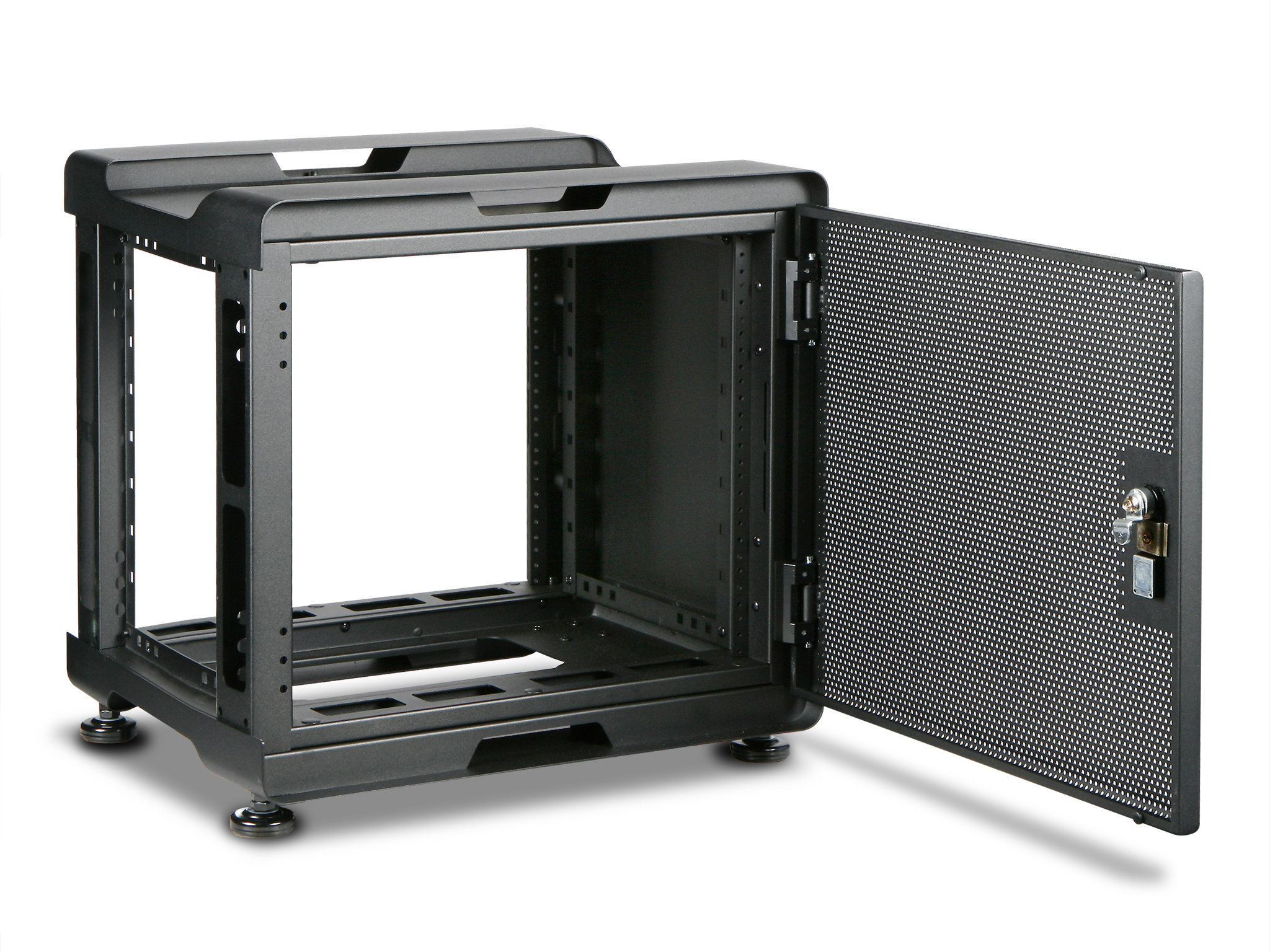

WS-938B
9U 380mm Depth Audio/Video Rackmount Cabinet
  • Universal Fit Most of Rackmount Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data
  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis
  • Vented Doors Provide Maximum Air Flow
  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Equipped with Feet
  • Comes with M5 Mounting Screws



Product Introduction
WS Cabinet series, the newest innovation in audio/video data storage. it is optimized for office, small/medium business (SMB), or professional studio environments (movie animation, music production, etc.). The 4U,6U,7U,9U,10U,14U,20U space supports any combination of standard rackmount equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications. The sleek and compact design makes it suitable for customers looking for IT solutions in a dynamic office environment. WS series cabinet is built with high-quality steel structures with vented doors. Also, it is completely lockable from the front and rear doors to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet is designed to store you content safer, easier, and sleeker than ever before.


Model NumberWS-938B
RoHS Compliance VersionYes
Form Factor9U
MaterialMain Frame:SPCC t1.6
Mounting Rails:SPCC t2.0
Top and Bottom frame:SPCC T1.6 to 2.0
Side Panel:Aluminum t2.0
Vented Door:SPCC t1.2
ColorBlack (Special Color on Request)
Loading Capacity660 lbs
Supported Chassis Depth10" and under
Internal Dimensions Depth: 10" Max
Dimensions (WxHxD)22.50" x 22.20" x 15.00"
572 mm x 564 mm x 381 mm
Notes- mounting rails need to be adjusted inward if chassis handles are more than 0.8", then the internal maximum depth from post-to-post is 7.3".
