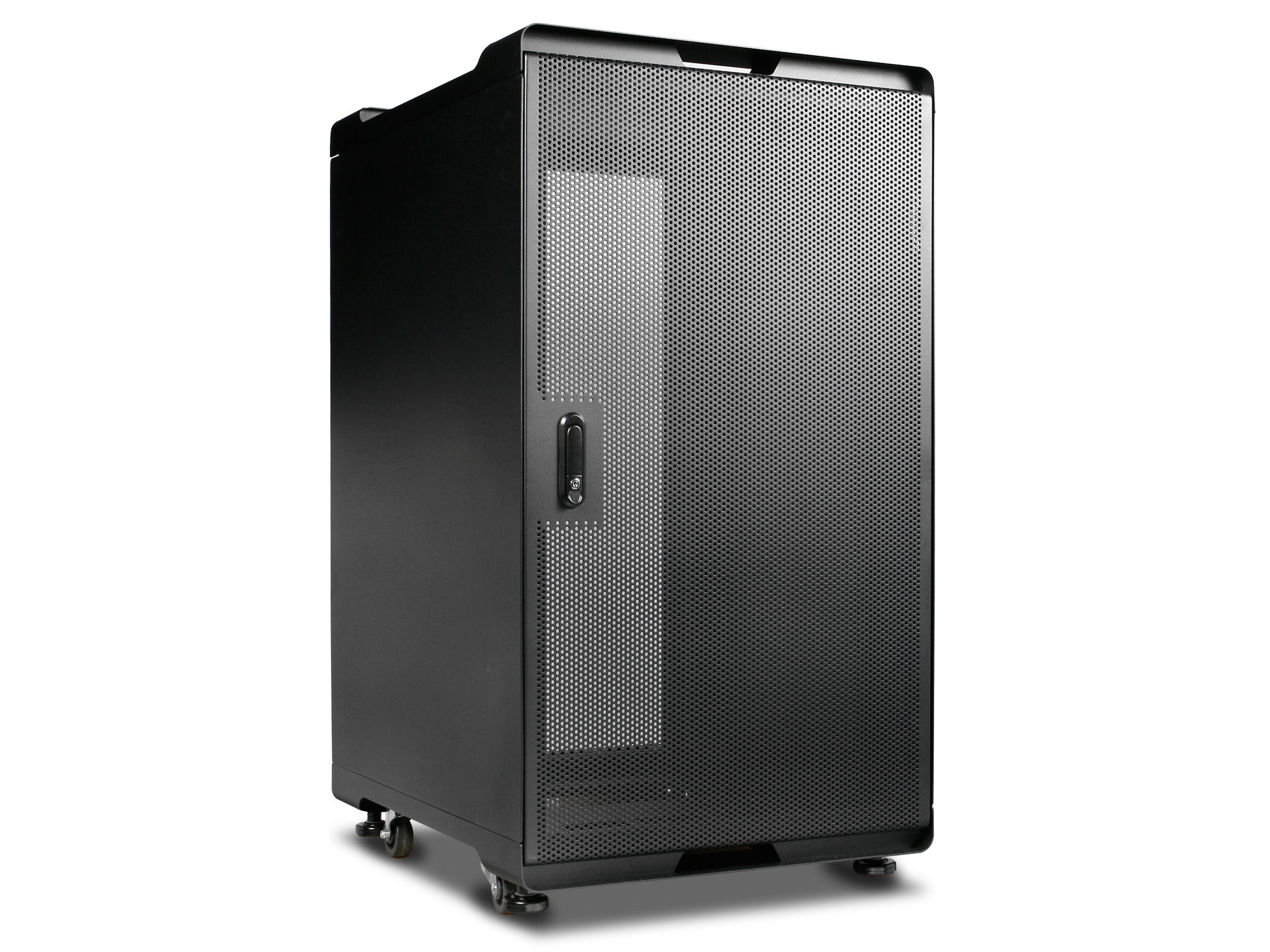

WS-2070B
20U 700mm Depth Audio/Video Rackmount Cabinet
  • Universal Fit Most of Rackmount Chassis and Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data

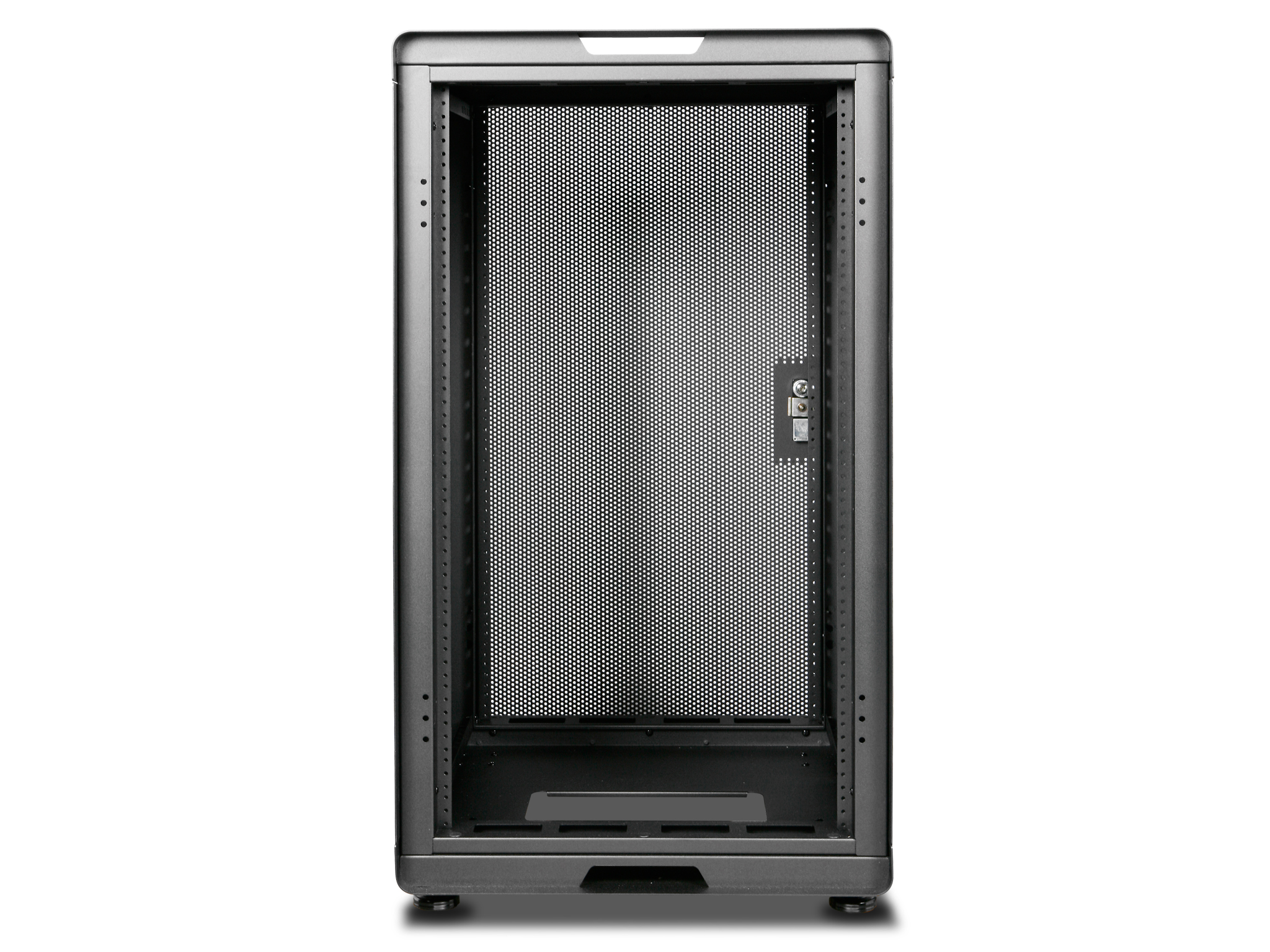

  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis

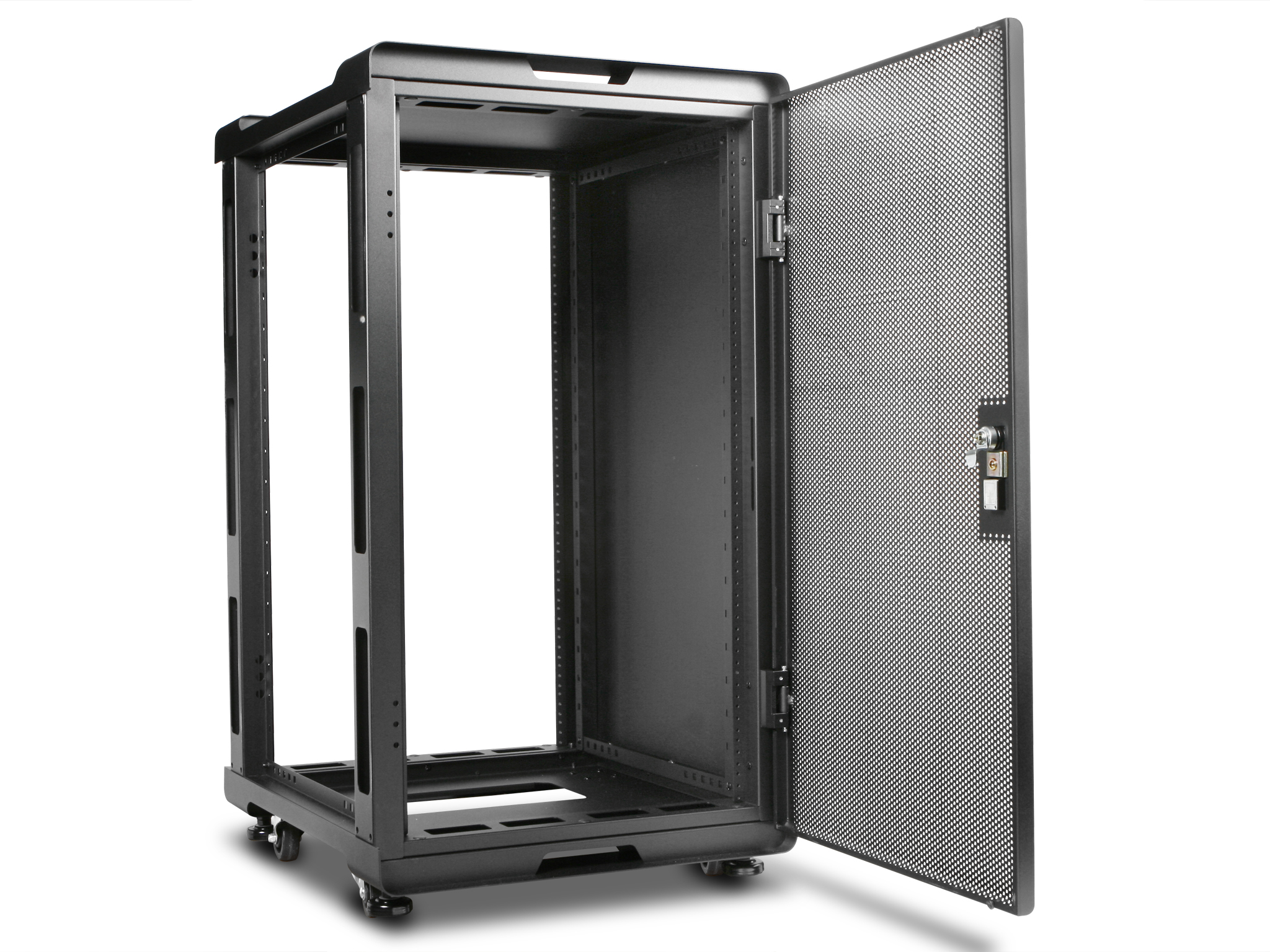

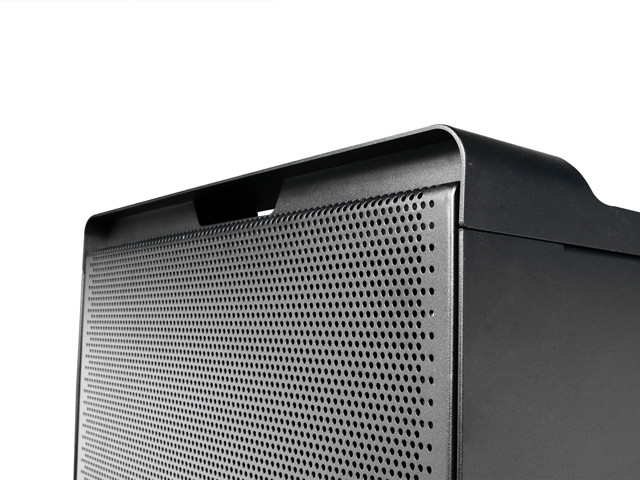

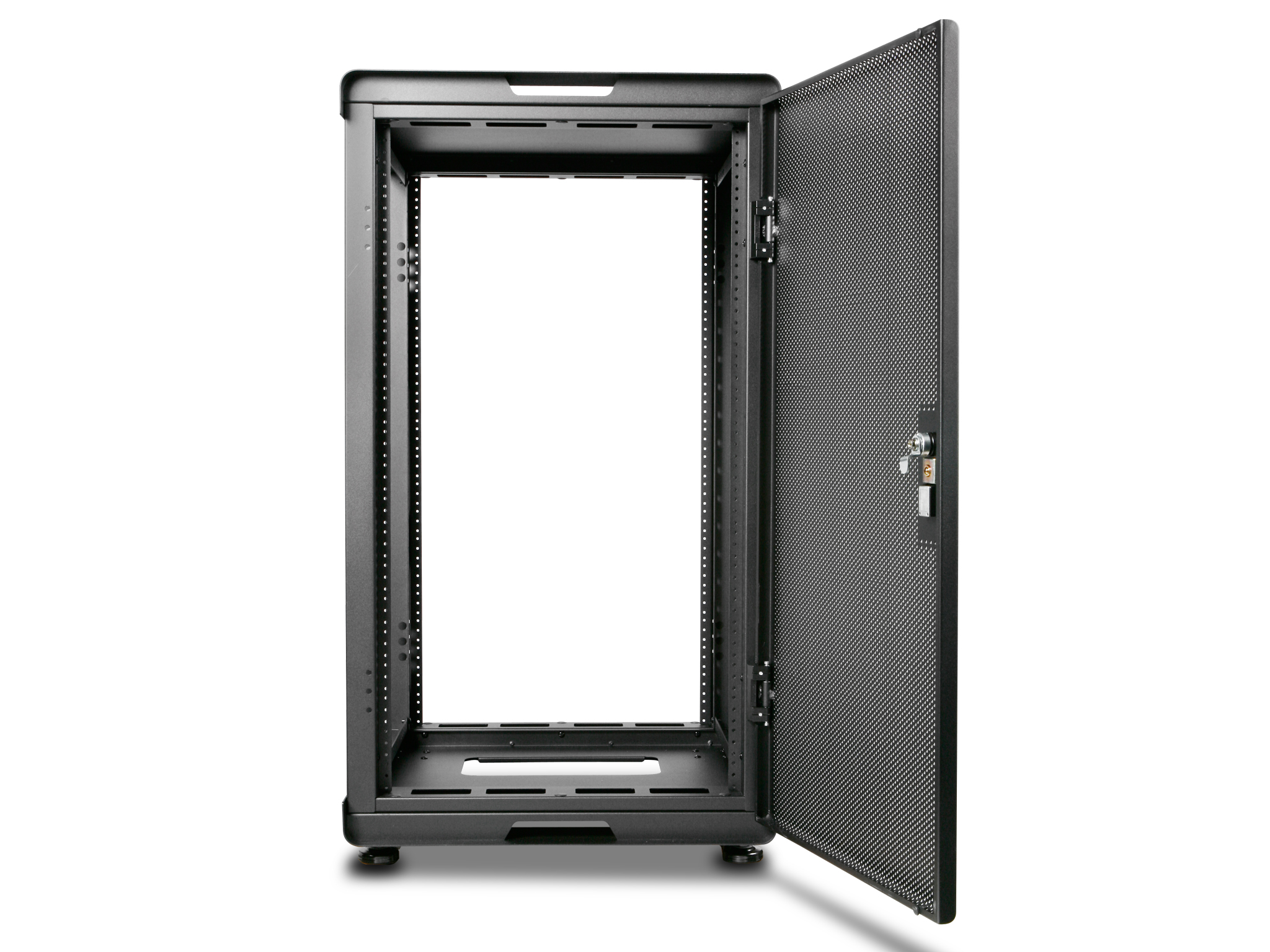

  • Vented Doors Provide Maximum Air Flow

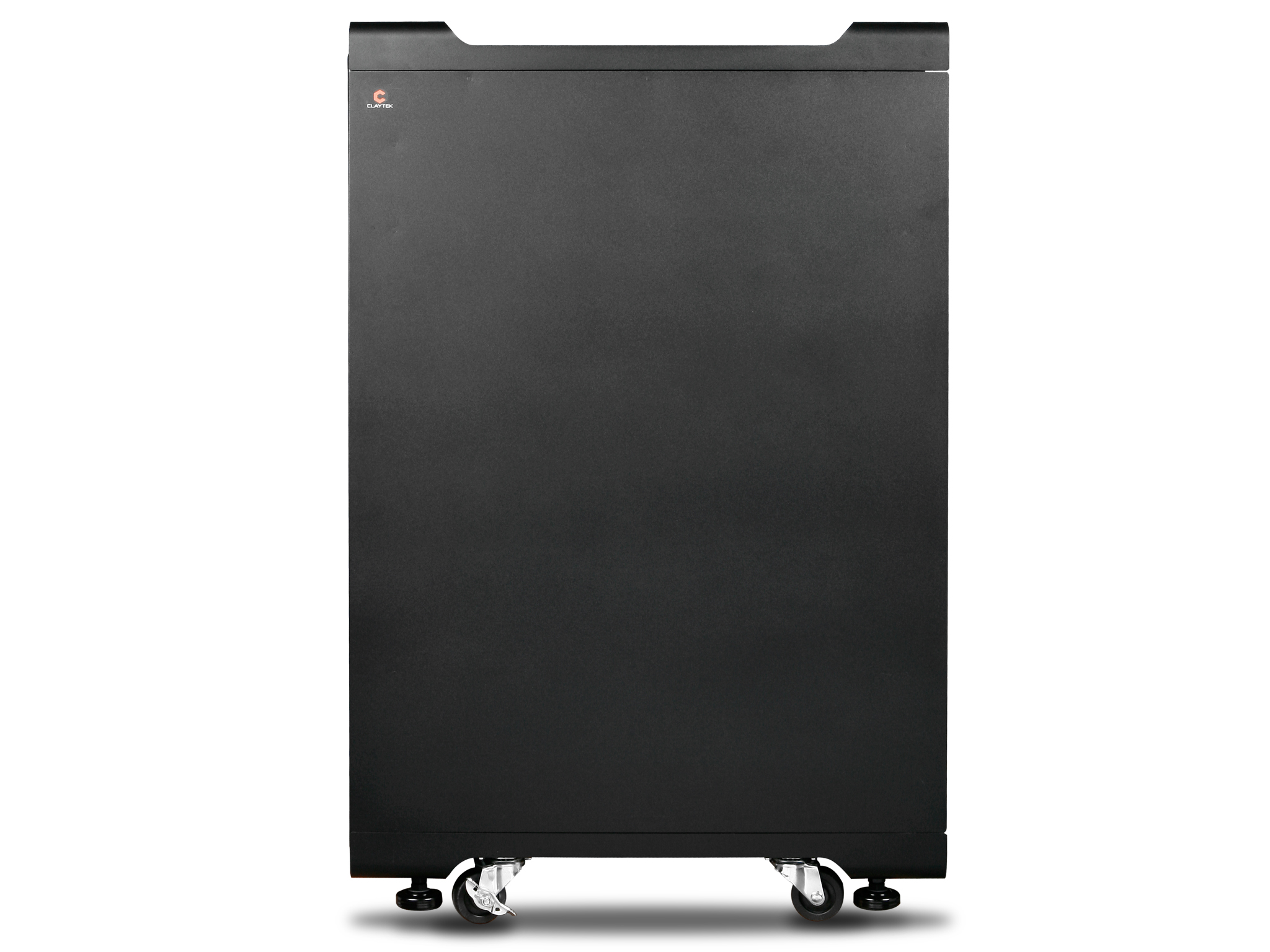

  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Locking Mechanism Design on Casters
  • Equipped with Casters and Feet
  • Comes with M5 Mounting Screws



Product Introduction
WS Cabinet series, the newest innovation in audio/video data storage. it is optimized for office, small/medium business (SMB), or professional studio environments (movie animation, music production, etc.). The 4U,6U,7U,9U,10U,14U,20U space supports any combination of standard rackmount equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications. The sleek and compact design makes it suitable for customers looking for IT solutions in a dynamic office environment. WS series cabinet is built with high-quality steel structures with vented doors. Also, it is completely lockable from the front and rear doors to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet is designed to store you content safer, easier, and sleeker than ever before.


Model NumberWS-2070B
RoHS Compliance VersionYes
Form Factor20U
MaterialMain Frame:SPCC t1.6
Mounting Rails:SPCC t2.0
Top and Bottom frame:SPCC T1.6 to 2.0
Side Panel:Aluminum t2.0
Vented Door:SPCC t1.2
ColorBlack (Special Color on Request)
Loading Capacity660 lbs
Supported Chassis Depth22" and under
Internal Dimensions Depth: 22.5" max
Dimensions (WxHxD)22.40" x 41.90" x 27.60"
569 mm x 1,064 mm x 701 mm
Notes- mounting rails need to be adjusted inward if chassis handles are more than 0.8", then the internal maximum depth from post-to-post is 19.9".


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-SFH40B2U Supporting Tray
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
TC-A100B1U IPC Keyboard and Drawer
WA-DT04141U Digital Temperature Unit
WA-3FAN-120AC3 x 120mm AC Cooling Fans for Cabinet
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-P1UB1U Cabinet Front Cover Plate
WA-P2UB2U Cabinet Front Cover Plate
WA-P3UB3U Cabinet Front Cover Plate
WL-217011U Rackmount 17" TFT LCD Keyboard Drawer
WL-217081U Rackmount 17" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WL-217161U Rackmount 17" TFT LCD Keyboard Drawer with Built-in 16-port KVM
WL-219011U Rackmount 19" TFT LCD Keyboard Drawer
WL-219081U Rackmount 19" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WL-219161U Rackmount 19" TFT LCD Keyboard Drawer with Built-in 16-port KVM

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
