WS-1470B-MP
Build-to-Order - 14U 700mm Depth Audio/Video Rackmount Cabinet
  • Universal Fit Most of Rackmount Chassis and Equipment
  • Front Security Locks to Prevent Unauthorized Access to Equipment and Data
  • Horizontal Adjustable Mounting Rails to Ensure the Best Fit of Rack-mount Chassis

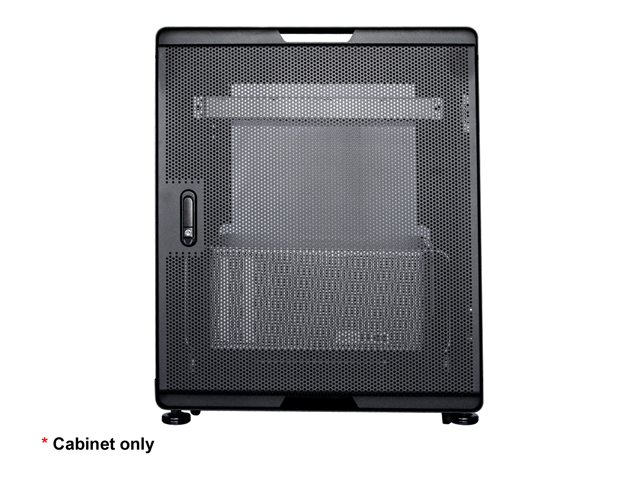

  • Vented Doors Provide Maximum Air Flow
  • Removable Side Panels for Easy Access
  • Tapped Mounting Holes (M5 size) for Audio/Video Equipment
  • Locking Mechanism Design on Casters
  • Equipped with Casters and Feet

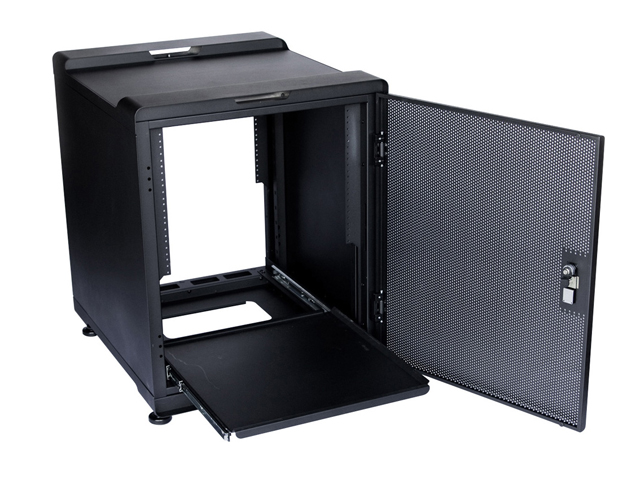

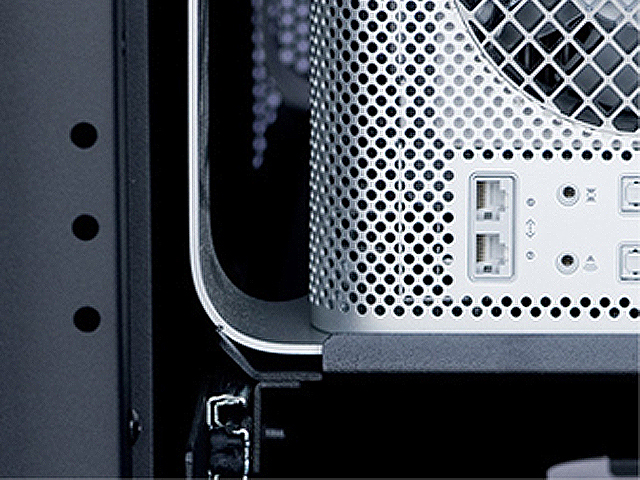

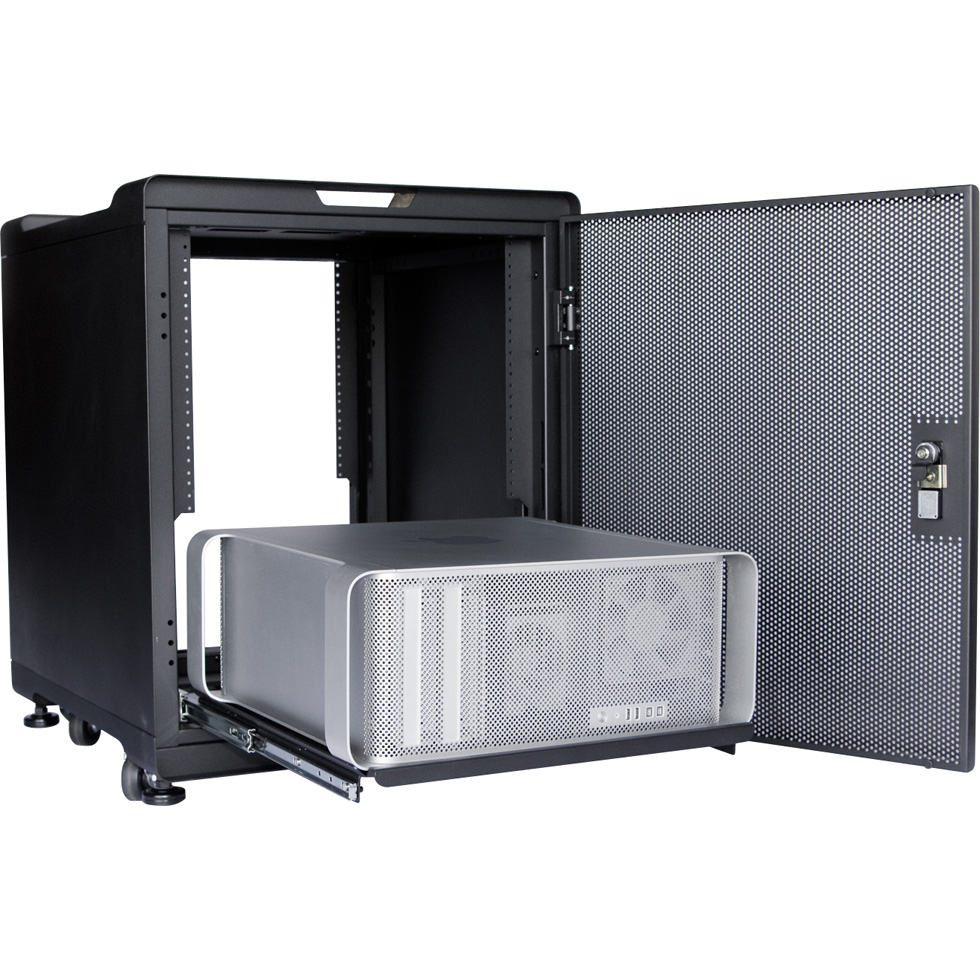

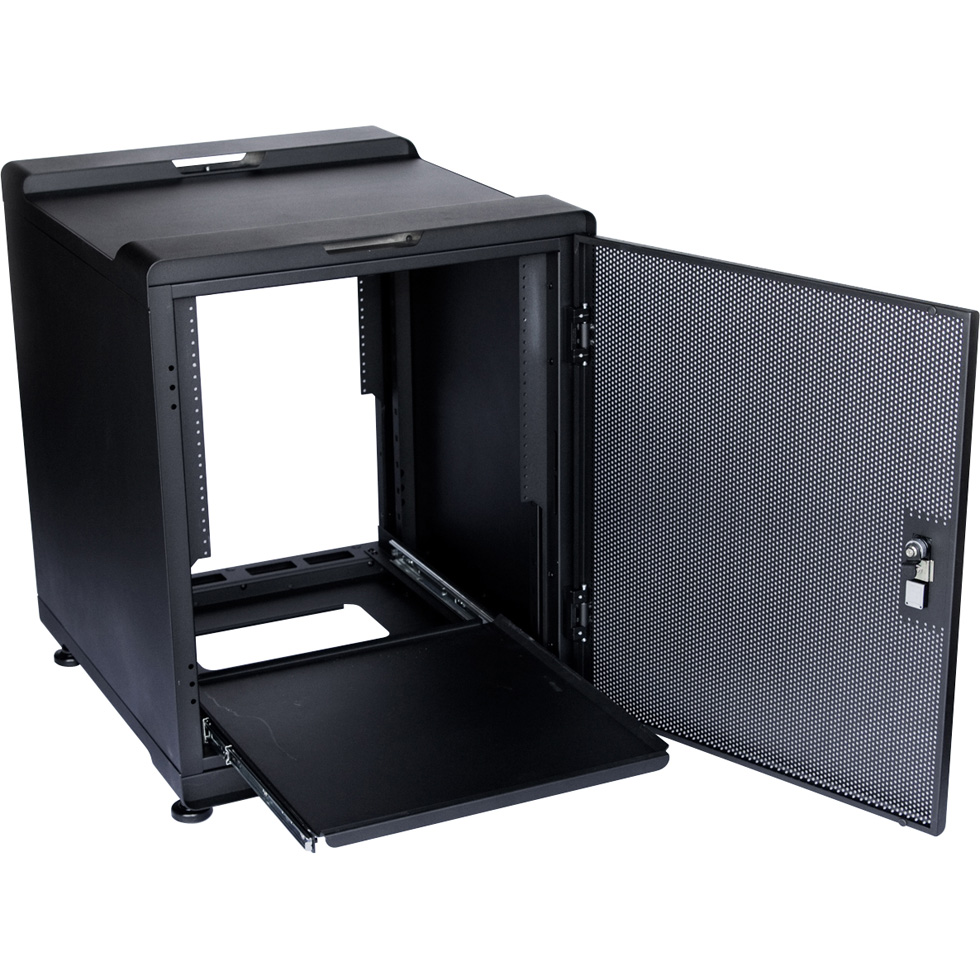

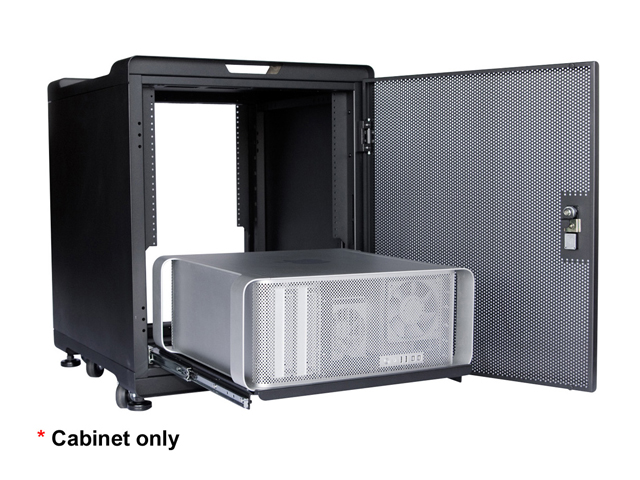

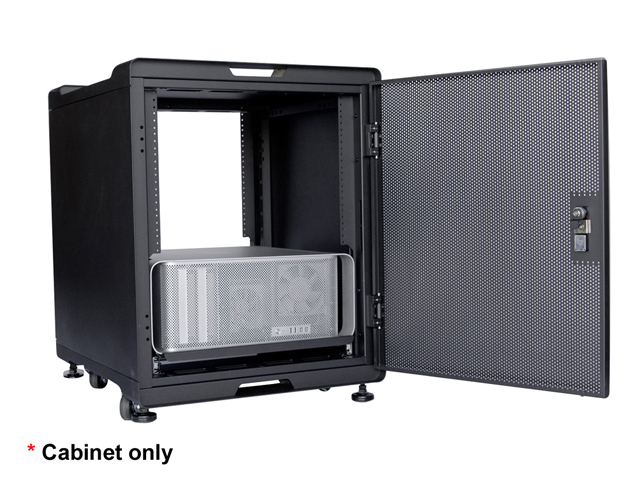

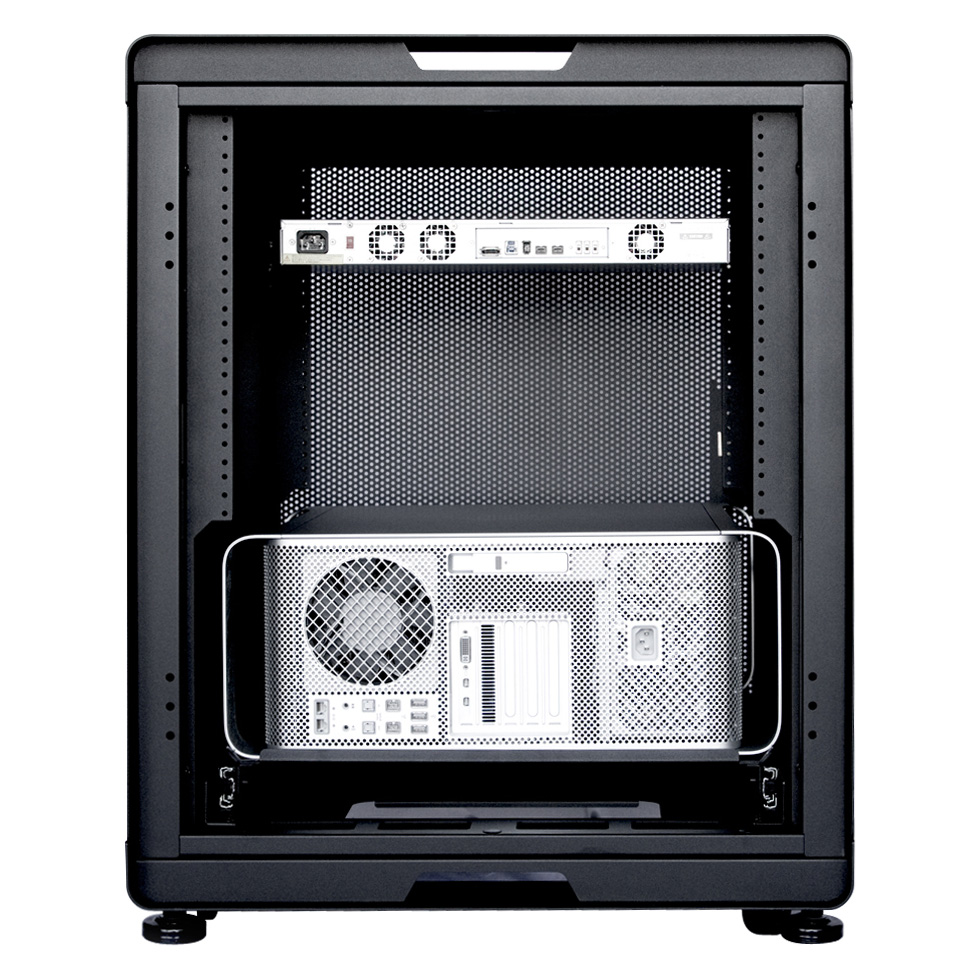

  • Sliding Tray Equipped to Hold Mac Pro at Bottom



Product Introduction
WS Cabinet series, the newest innovation in audio/video data storage. it is optimized for office, small/medium business (SMB), or professional studio environments (movie animation, music production, etc.). The WS-1470B-MP supports any combination of standard rackmount equipment in a compact form factor and also fits a Mac Pro at the bottom with a sliding tray supported, which offering ease of maintenance and flexibility for different IT applications. The sleek and compact design makes it suitable for customers looking for IT solutions in a dynamic office environment. WS series cabinet is built with high-quality steel structures with vented doors. Also, it is completely lockable from the front and rear doors to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet is designed to store you content safer, easier, and sleeker than ever before.


Model NumberWS-1470B-MP
RoHS Compliance VersionYes
Form Factor14U
MaterialMain Frame:SPCC t1.6
Mounting Rails:SPCC t2.0
Top and Bottom frame:SPCC T1.6 to 2.0
Side Panel:Aluminum t2.0
Vented Door:SPCC t1.2
ColorBlack (Special Color on Request)
Loading Capacity330 lbs
Supported Chassis Depth22" and under
Internal Dimensions Depth: 22.5" max
Dimensions (WxHxD)24.21" x 31.30" x 27.60"
615 mm x 795 mm x 701 mm

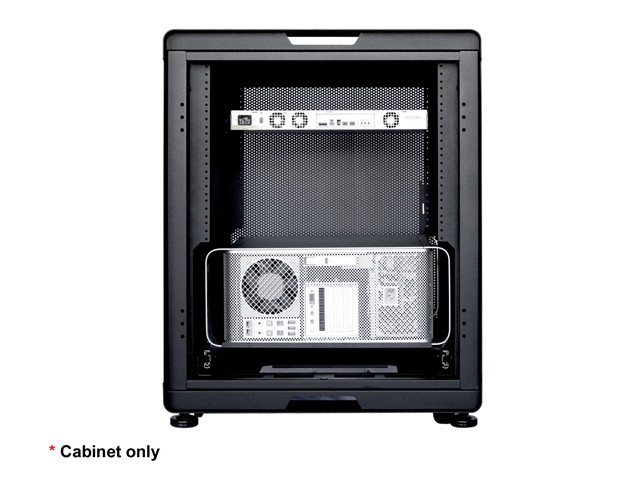

Notes- 8U space for rackmount chassis/equipment. Refer to drawing for more details.


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-SFH40B2U Supporting Tray
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
TC-A100B1U IPC Keyboard and Drawer
WA-DT04141U Digital Temperature Unit
WA-3FAN-120AC3 x 120mm AC Cooling Fans for Cabinet
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-P1UB1U Cabinet Front Cover Plate
WA-P2UB2U Cabinet Front Cover Plate
WA-P3UB3U Cabinet Front Cover Plate
WL-217011U Rackmount 17" TFT LCD Keyboard Drawer
WL-217081U Rackmount 17" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WL-217161U Rackmount 17" TFT LCD Keyboard Drawer with Built-in 16-port KVM
WL-219011U Rackmount 19" TFT LCD Keyboard Drawer
WL-219081U Rackmount 19" TFT LCD Keyboard Drawer with Built-in 8-port KVM
WL-219161U Rackmount 19" TFT LCD Keyboard Drawer with Built-in 16-port KVM
