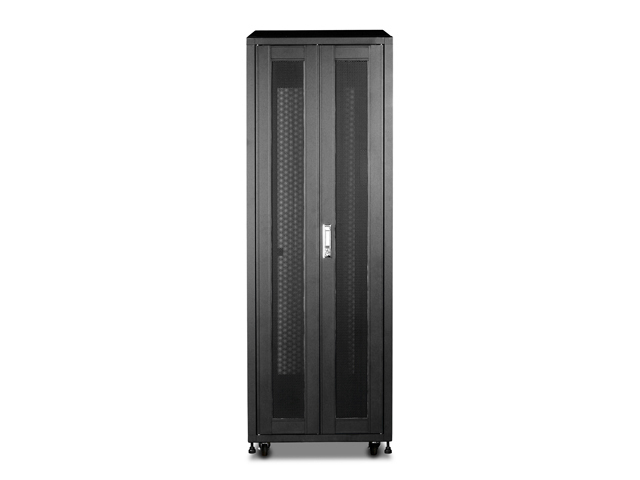

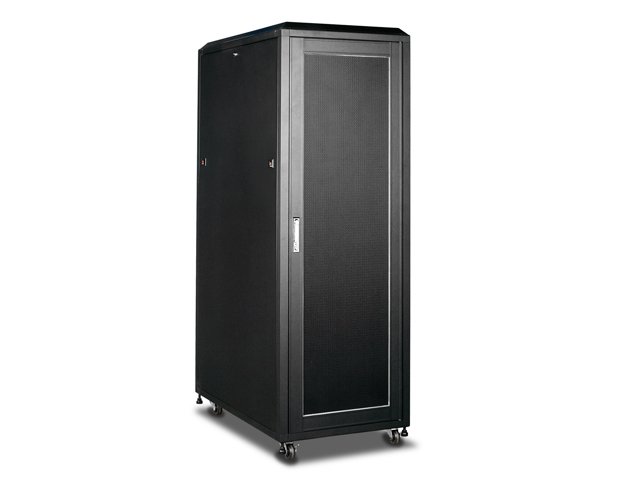

WN3610
36U 1000mm Depth Rack-mount Server Cabinet
  • Universal Fit Most of Rackmount Chassis and Equipment

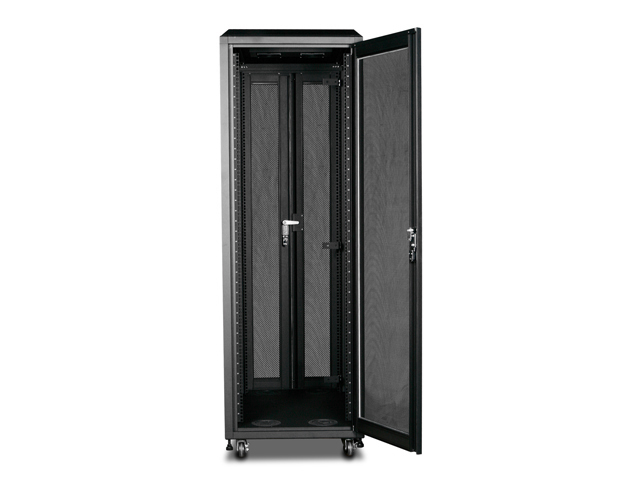

  • Double Rear Doors Provide Convenience and Take Less Space to Open

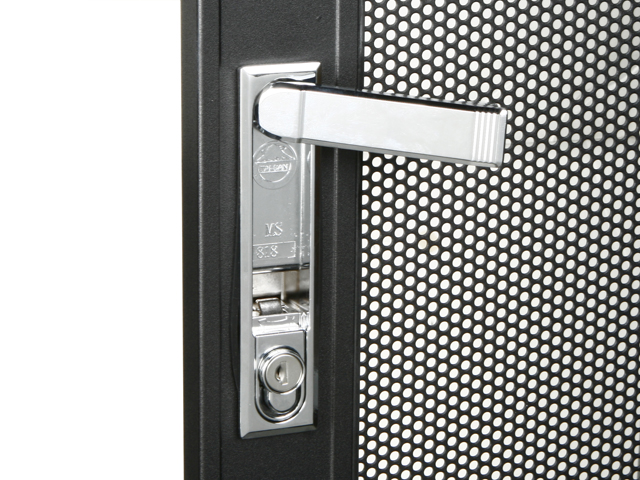

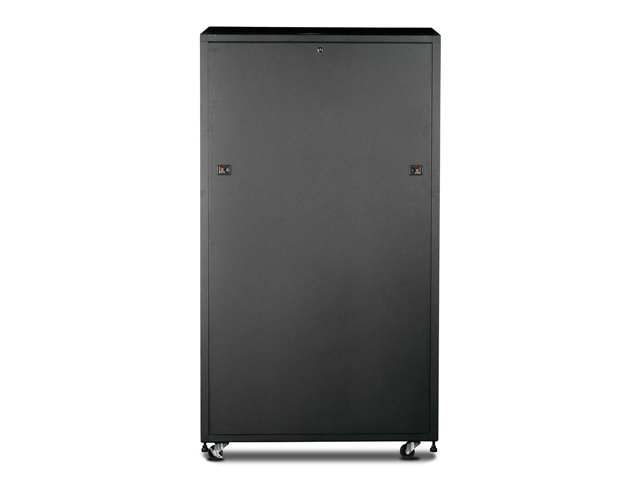

  • Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data

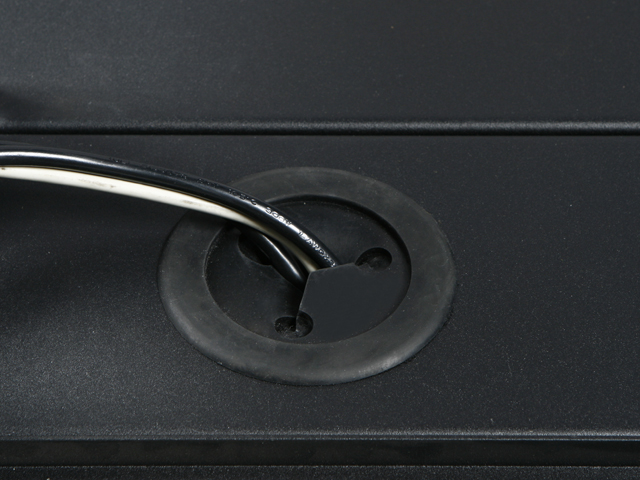

  • Easy Cabling Management. Cable Entry Provided from Top/ Bottom and Front/ Back
  • Vented Doors Provide Maximum Air Flow
  • 120mm AC Cooling Fans Provide Excellent Air Circulation

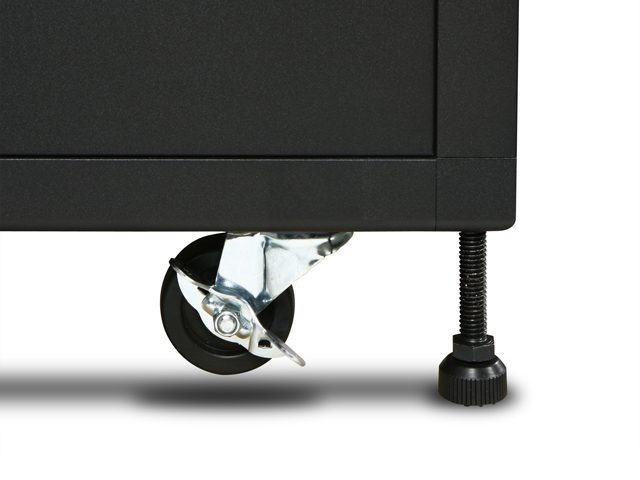

  • Locking Mechanism Design on Casters
  • Comes with 50 sets of M5 Mounting Screws and Cage Nuts



Product Introduction
WN Series Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WN series provides excellent air circulation for servers and other devices. Cabinet is completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WN Series offer a superior environment for mission-critical equipment.


Model NumberWN3610
RoHS Compliance VersionYes
Form Factor36U
MaterialSide Panel:SPCC t:0.8mm
Horizontal Rails:SPCC t:2.0mm

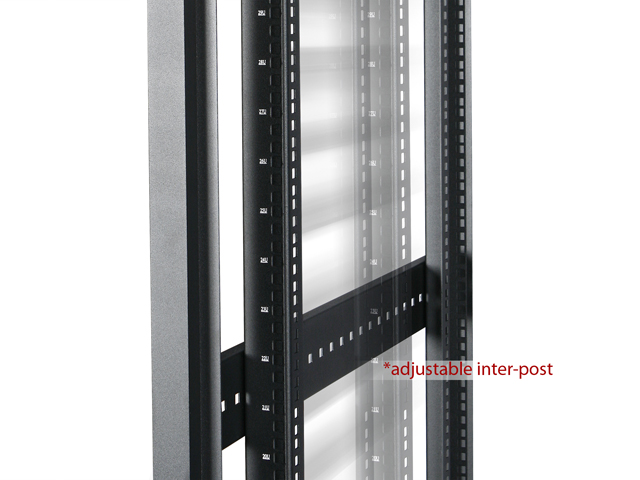

Vertical Rails:SPCC t:2.0mm
Top Panel:SPCC t:1.2mm Frame: Extruded Aluminium
ColorBlack (RAL9011)
Loading Capacity2200 lbs
Supported Chassis Depth34" and under
Internal Dimensions Height: 64.25"
Depth: 34.25" max

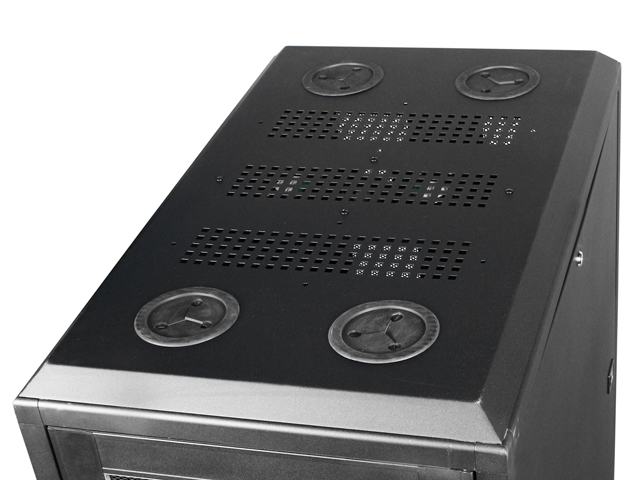

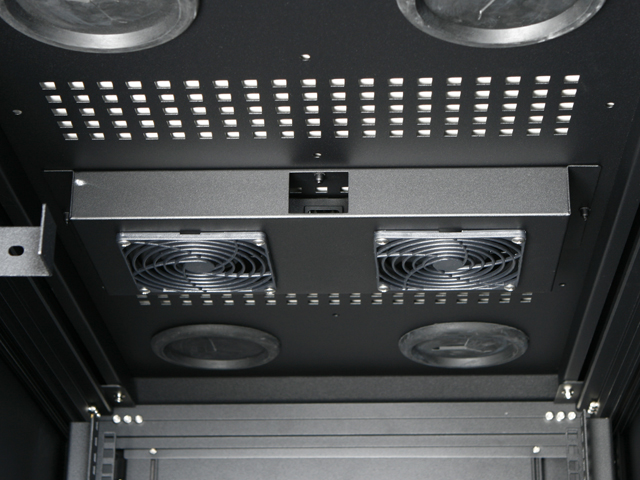

CoolingUp to 3 sets of 120mm 120V AC fans can be installed on the top. Pre-installed 1 set.
Dimensions (WxHxD)23.50" x 71.75" x 39.50"
597 mm x 1,822 mm x 1,003 mm
Notes- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WN3610-EX.


Download
FAQ

QCan I move the fully loaded cabinet with castor installed?
AThe load capacity of the castor is 600 lbs when moving; 2200 lbs when stand still.

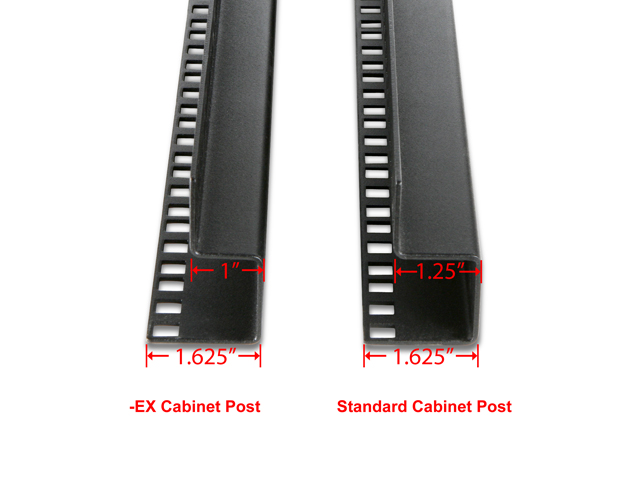

QWhat is the difference between WN series and WN-EX series?
APlease refer to the PDF.


QIs there an option to do flat packaging for WN cabinet series?
AYes, it will be four separated packages. Please see packing dimensions in PDF. The flat packaging will only be available by special requests. Please contact sales person for more details.

Optional Accessories

Model #Description
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-DT04141U Digital Temperature Unit
WA-KBR96B1U Compact Sliding Keyboard Drawer
WA-LB96BCabinet Supporting Bar
WA-P1UB1U Cabinet Front Cover Plate
WA-P2UB2U Cabinet Front Cover Plate
WA-P3UB3U Cabinet Front Cover Plate
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PD01616 Outlet Lightening Surge Protection Power Distribution Unit
WA-PS010Build-to-Order - 10 Outlet Power Strip
WA-PS012Build-to-Order - 12 Outlet Power Strip
WA-PS022Build-to-Order - 22 Outlet Power Strip
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SF120-2FANCabinet 2x 120mm AC Cooling Fans
WA-SF96BHeavy Duty Rackmount Shelf
WA-SFR96BHeavy Duty Sliding Tray

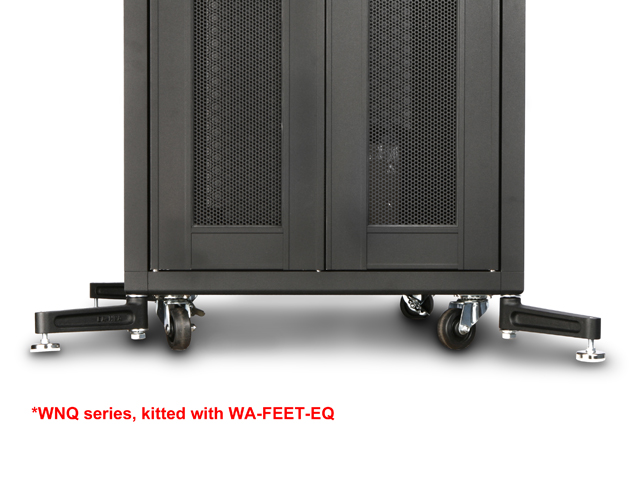

WA-FEET-EQAnti-vibration Feet

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
