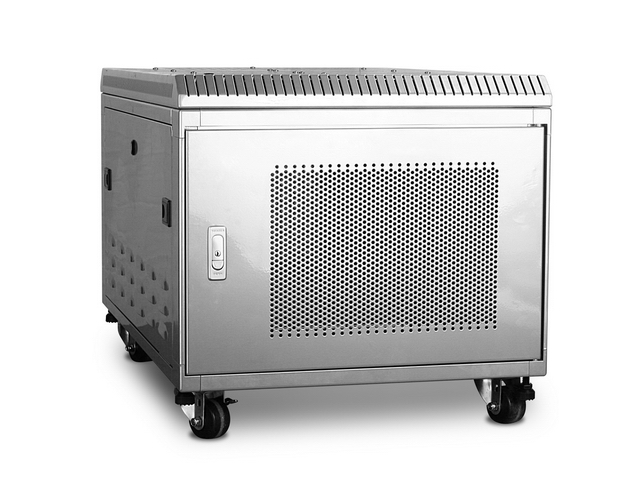

WG-790-S

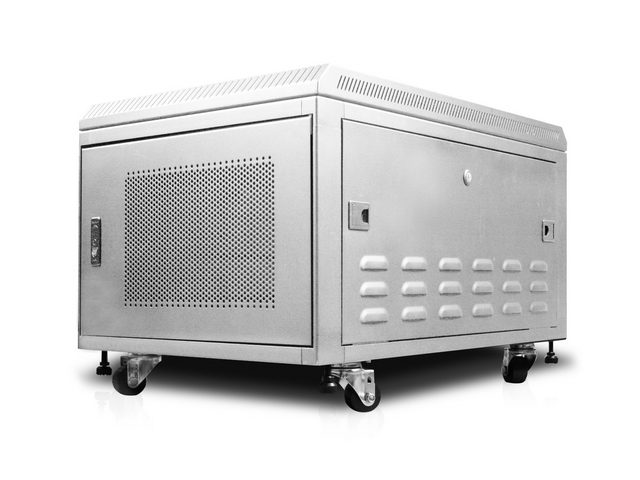

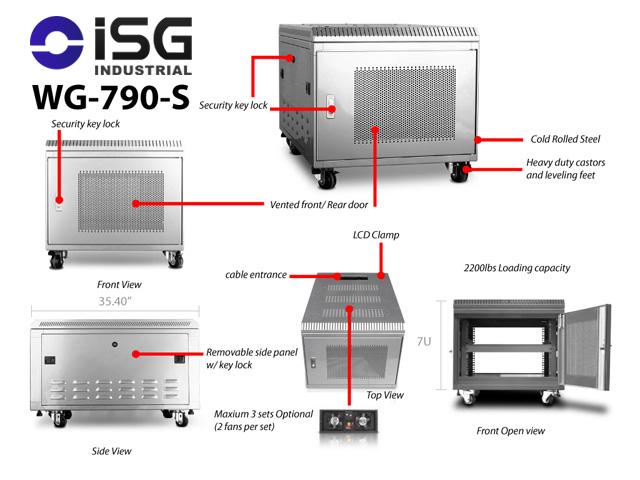

7U 900mm Depth Rack-mount Server Cabinet
  • Universal Fit Most of Rackmount Chassis and Equipment

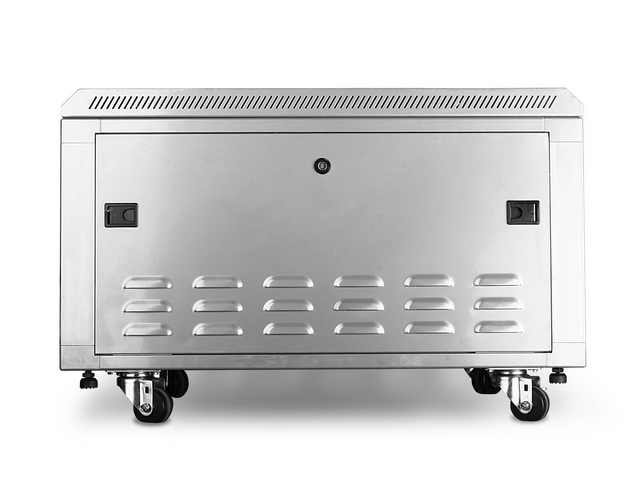

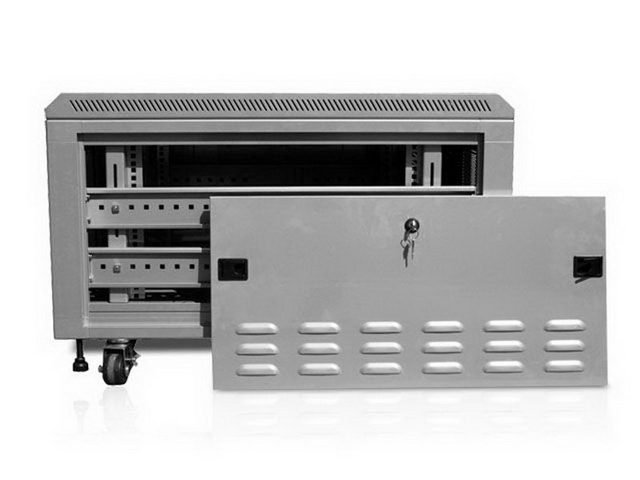

  • Front, Rear, and Side Security Lock to Prevent Unauthorized Access to Equipment and Data

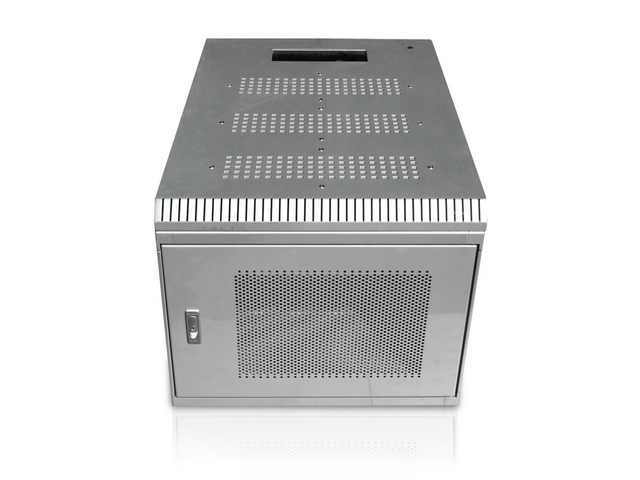

  • Easy Cabling Management. Cable Entry Provided from Top/ Bottom

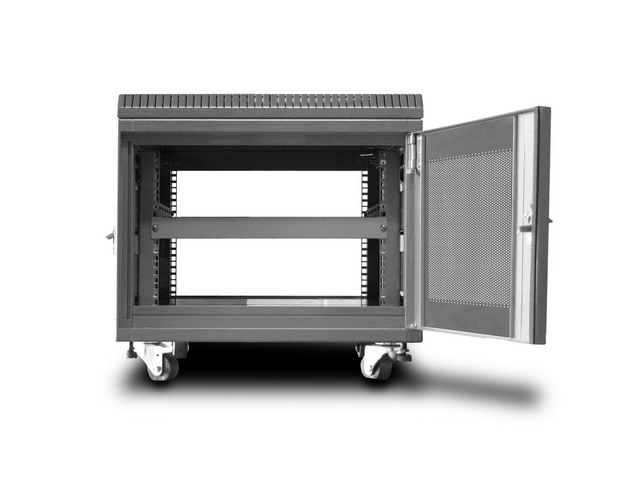

  • Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best Fit of Rack-mount Chassis
  • Vented Doors and Frames Provide Maximum Air Flow
  • Custom Front Panel Door with Silk Screen Option Enhance Product Image and Uniformity in Product Line

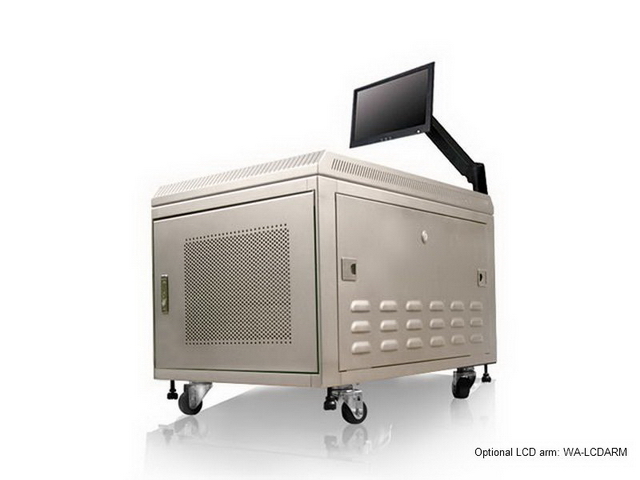

  • Optional Monitor Mount
  • Locking Mechanism Design on Casters
  • Comes with M5 Mounting Screws and Cage Nuts



Product Introduction
The WG Cabinet Series is optimized for office, small/medium business (SMB), research and academic institutions or professional studio environments (movie animation, music production, etc.). The 6U,7U,9U,12U space supports any combination of standard rack mount servers or equipment in a compact form factor offering ease of maintenance and flexibility for different IT applications. The WG Cabinet's desk-side design features security, mobility and options for sound dampening to reduce overall system noise levels. It's sleek and compact Element ID design makes it suitable for customers looking for IT solutions in a dynamic office environment. WG Series Cabinet is built with high-quality aluminum/steel structures. With vented doors and cooling fans, WG series provides excellent air circulation for servers and other devices. Cabinets are completely lockable from the front/ rear doors and side panels to prevent unauthorized access. This stylish and secure 19" rack-mount cabinet protects your investment in computer equipment against environmental elements heat and dust. WG Series offer a superior environment for mission-critical equipment.


Model NumberWG-790-S
RoHS Compliance VersionYes
Form Factor7U
MaterialFrame:Aluminum
Base:SPCC Cold Rolled Steel t1.2
Mounting Rails:SPCC Cold Rolled Steel t2.0
Top Panel:SPCC Cold Rolled Steel t1.2
Side Panels:SPCC Cold Rolled Steel t1.2
Doors:SPCC Cold Rolled Steel t1.5
ColorSilver (Special Color on Request)
Loading Capacity2200 lbs
Supported Chassis Depth29" and under
Internal Dimensions Depth: 29" max
CoolingOptional 3 sets of 120mm 120V AC fans can be installed on top. Pre-installed 1 set
Dimensions (WxHxD)23.60" x 23.00" x 35.40"
599 mm x 584 mm x 899 mm

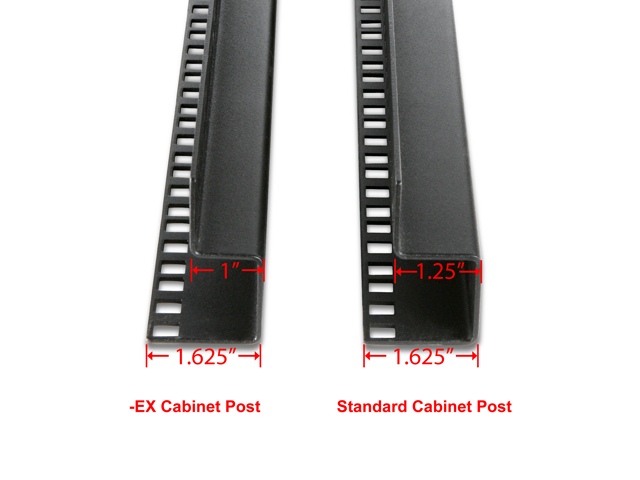

Notes- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WG-790S-EX


Download
FAQ

QHow to install cooling fans onto WG cabinet series?
AOptional cooling fan, WA-SF120-2FAN, can be installed on the top of cabinet. Please refer to the PDF for details.


Optional Accessories

Model #Description
WA-3FAN-120AC3 x 120mm AC Cooling Fans for Cabinet
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-DT04141U Digital Temperature Unit
WA-KBR80B1U Compact Sliding Keyboard Drawer
WA-LB80BCabinet Supporting Bar
WA-LCDARMLCD Monitor Arm
WA-P1UB1U Cabinet Front Cover Plate
WA-P2UB2U Cabinet Front Cover Plate
WA-P3UB3U Cabinet Front Cover Plate
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SF120-2FANCabinet 2x 120mm AC Cooling Fans
WA-SF80BHeavy Duty Rackmount Shelf
WA-SFH40B2U Supporting Tray
WA-SFR80BHeavy Duty Sliding Tray
WA-KBR96B1U Compact Sliding Keyboard Drawer

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
