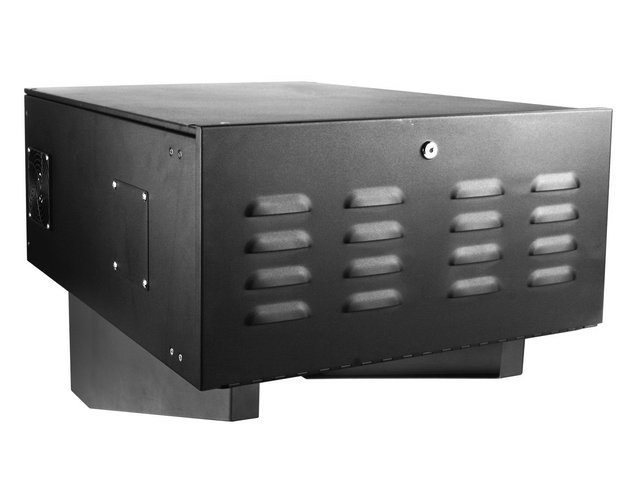

WB-670
Build-to-Order - 6U Chassis Cabinet Rack

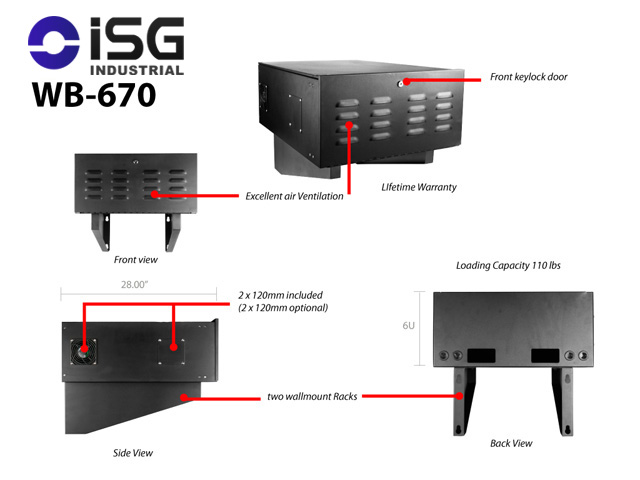

  • Wallmount or Desktop Standalone
  • Excellent Air Ventilation Design with Dual AC Cooling Fans
  • Lifetime Warranty
  • Universal Fit Most of Rackmount Chassis and Equipment

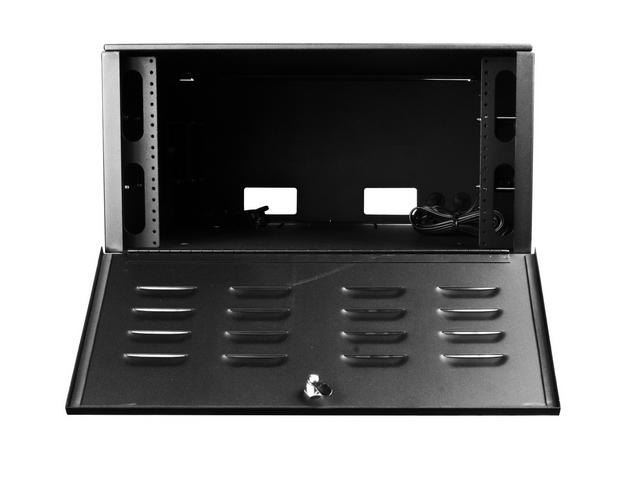

  • Front Lockable Door

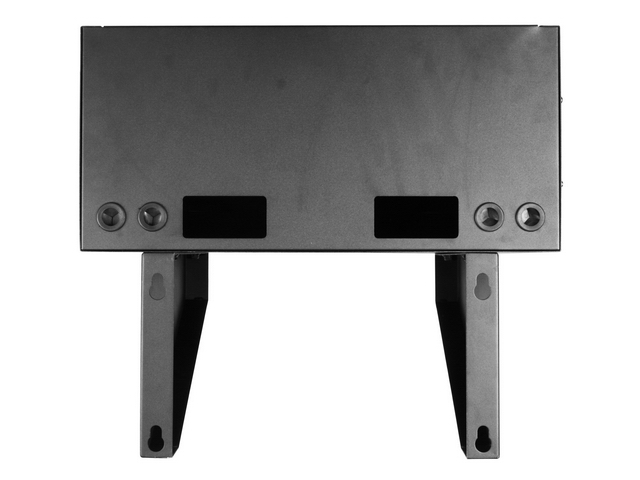

  • Two walllmount Racks

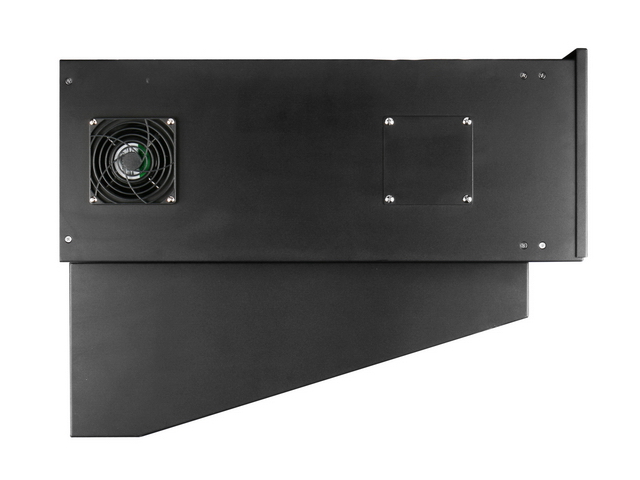

  • Optional 2*120mm Cooling Fans

Product Introduction

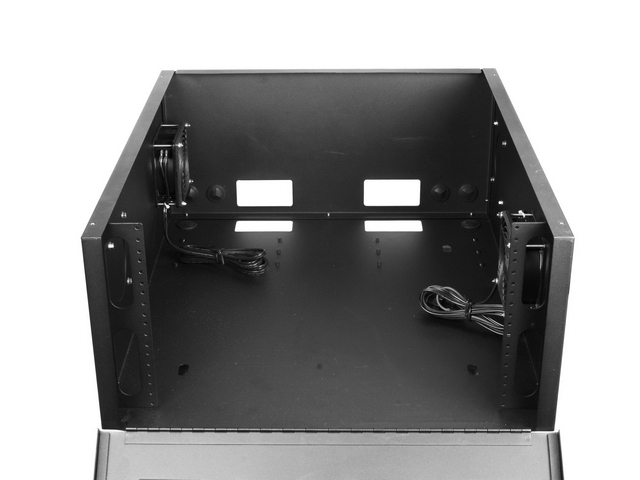

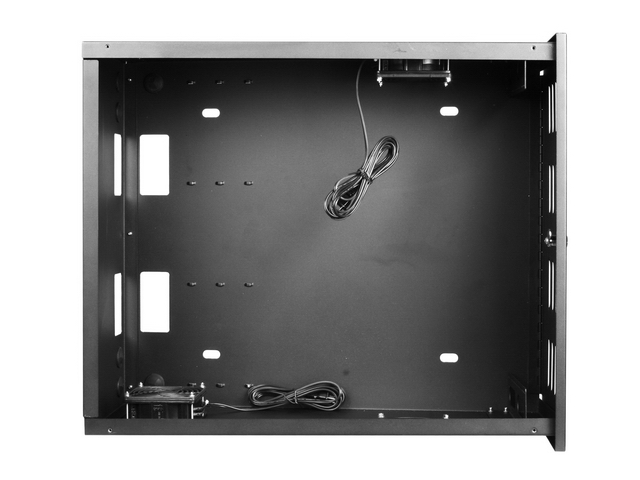

WB series wallmount cabinet is built with high-quality aluminum/steel structures and anti-vibration patent design. The cabinet is standing on the two racks, which are mounted on the wall. Optional 2*120mm Cooling Fans are able to provide excellent air circulation. This stylish and secured cabinet is optimized for small business, research institutions, and professional studio.


Model NumberWB-670
RoHS Compliance VersionYes
Form Factor6U
MaterialSteel
ColorBlack
Loading Capacity110 lbs
Supported Chassis Depth28" and under
Internal Dimensions Width: 23"
Height: 11"
Depth: 28" max
CoolingUp to 4x120mm 120V AC fans can be installed. Pre-installed 2x120mm fans
Dimensions (WxHxD)23.30" x 11.20" x 28.20"
592 mm x 284 mm x 716 mm
