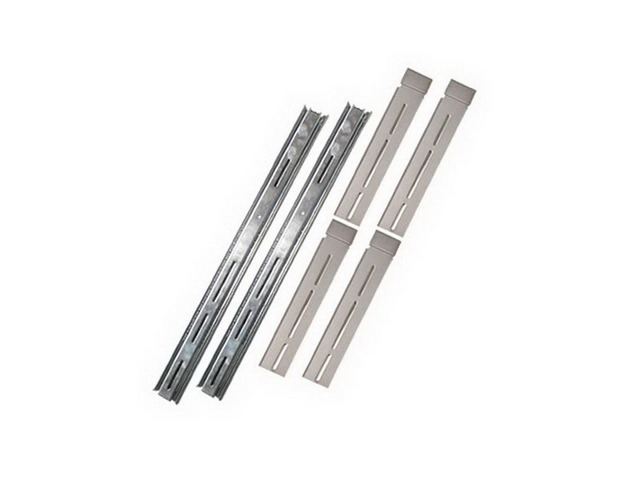

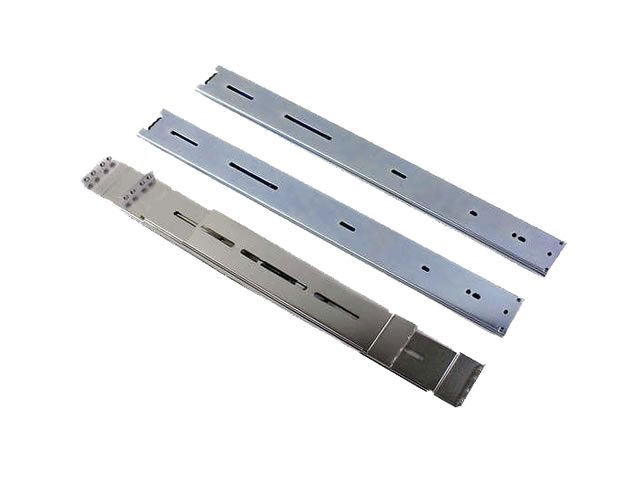

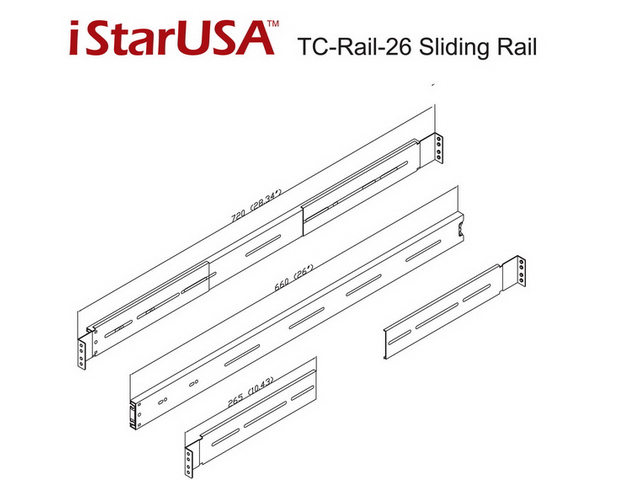

TC-RAIL-26
26" Sliding Rail Kit for Most Rackmount Chassis
  • Solid Ball Bearing Sliding Rails
  • Three Stages Temporary Lockable
  • Adjustable Length
  • Load Rating Up to 85 lbs
  • Supported Chassis: up to 29" in length
  • Supported Cabinet: 28" ~ 39" in depth



Product Introduction
The TC-RAIL-26 is a ball bearing sliding rails built from SECC steel. The rail is built to last and can hold system weight up to 85 lbs. Increase your accessibility to your rackmount server with this easy to install rackmount sliding rails.


Model NumberTC-RAIL-26
RoHS Compliance VersionYes
Standard Drive Bays None
Material of Main Chassis1.2mm SECC Steel
Supported Chassis Depthup to 29"
Supported Cabinet Depth28" to 39" (front mounting posts to rear posts)
Notes- HTS code: 8473.30.0002


Download
FAQ

QHow to install TC-Rail 22/24/26?
APlease follow the rail installation guide.


QWhat size of screw comes with the rails?
AScrew size is M4.
