S-919

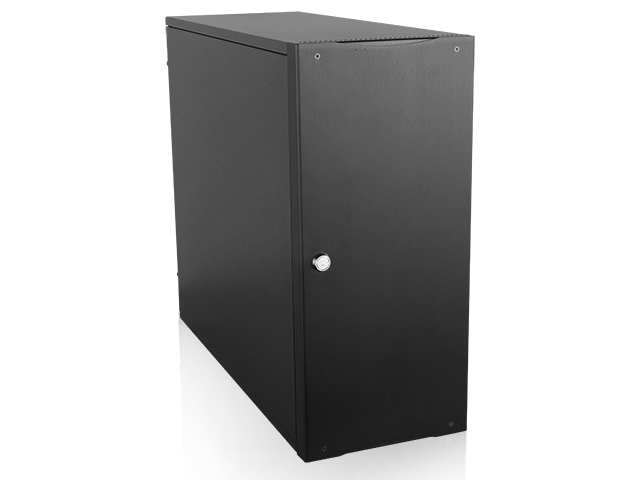

Build-to-Order - Compact Stylish 9x 5.25" Bay microATX Tower

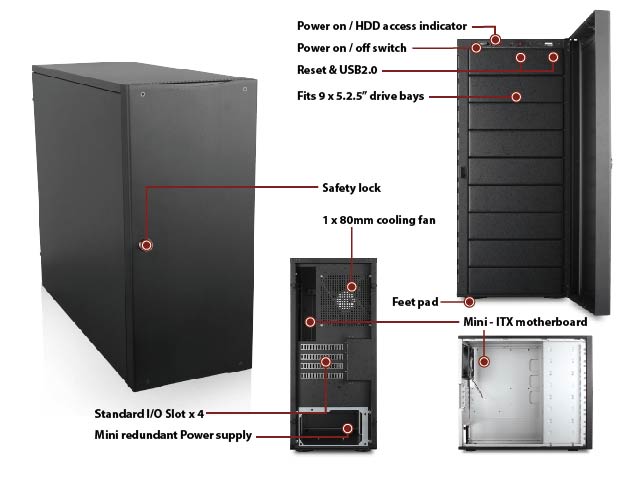

  • Sleek Front Panel with Power On & Reset Button

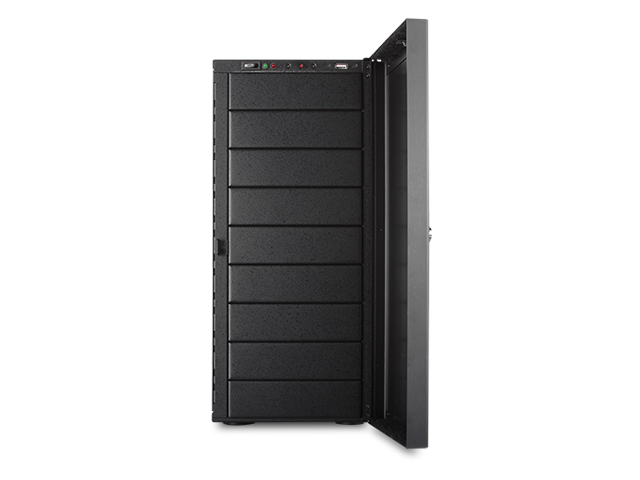

  • 9x5.25" Bays Available for Mobile Drive Cage
  • Aluminum Front Panel with USB 2.0
  • Front Door Keylock design to secure data inside
  • Heavy Duty SECC Construction
  • Compatible with Mini Redundant Power Supply

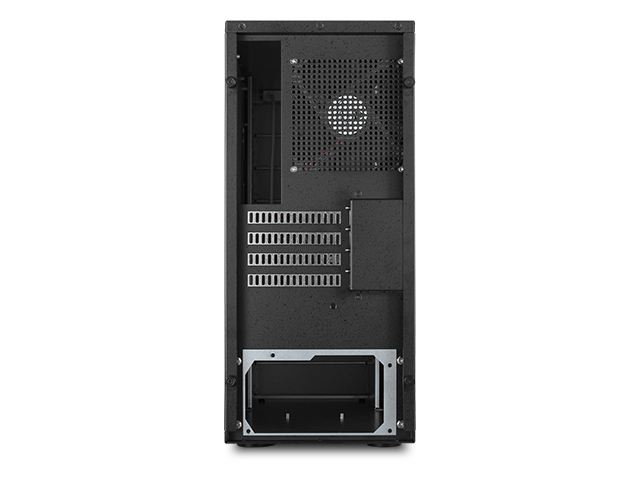

  • Support Standard I/O Slot
  • Support microATX Motherboard
  • Power and HDD LED Indicators
  • One 120mm Cooling Fan
  • Internal 3.5" Bay for OS HDD



Product Introduction
The external multi-bay NAS tower series are designed specially for storage applications. The wide variety of the tower with hard drive cages is able to easily max the hard drive capacity up to 54 bays for storing mass data. Quiet 120mm cooling fan enhances the ventilation inside. The external NAS tower chassis with solid construction is a cost-effective and flexible solution for your critical data storage.


Model NumberS-919
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 1
5.25" Drives: 9
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypeATX PS2
Expansion Slots4
Material of Front BezelAluminum
Material of Main ChassisSECC 0.8mm
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector1x USB 2.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan1x120mm

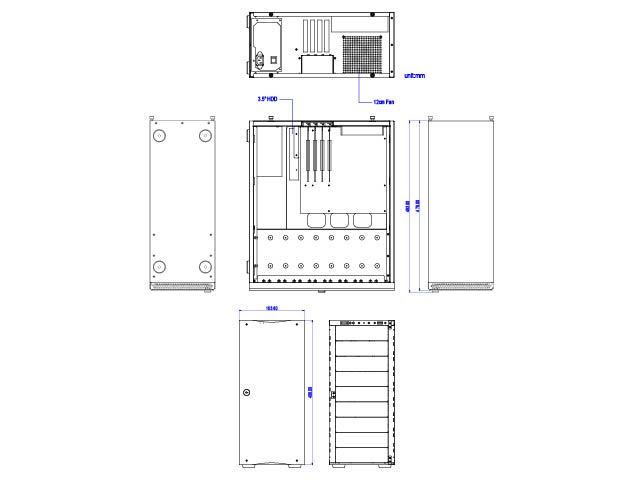

Dimensions (WxHxD)7.23" x 16.06" x 18.82"
183.6 mm x 407.9 mm x 478.0 mm
