S-915-DE5
Compact Stylish 5x 3.5" Hotswap Trayless mini-ITX Tower

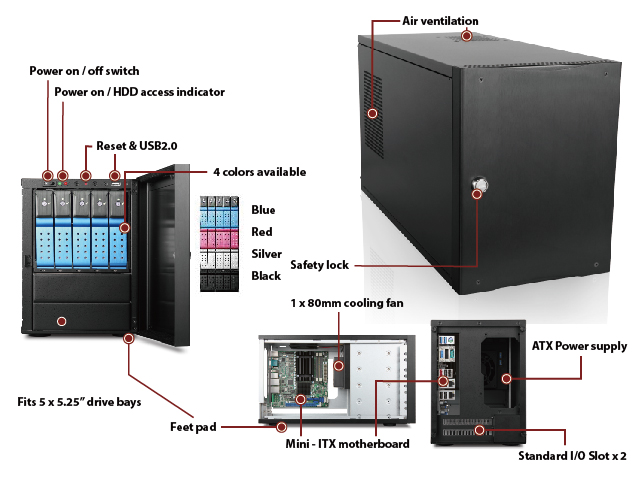

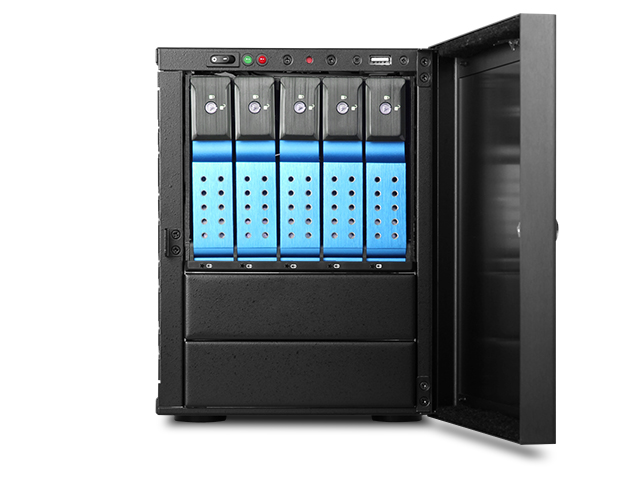

  • 5x 3.5"HDD Trayless Hot-Swap Bays
  • 2x5.25" Bays Available for Mobile Drive Cage
  • Aluminum Front Panel with USB 2.0
  • Front Door Keylock Design to Secure Data inside
  • Heavy Duty SECC Construction
  • Compatible with Standard PS2 Power Supply
  • Support Standard I/O Slot

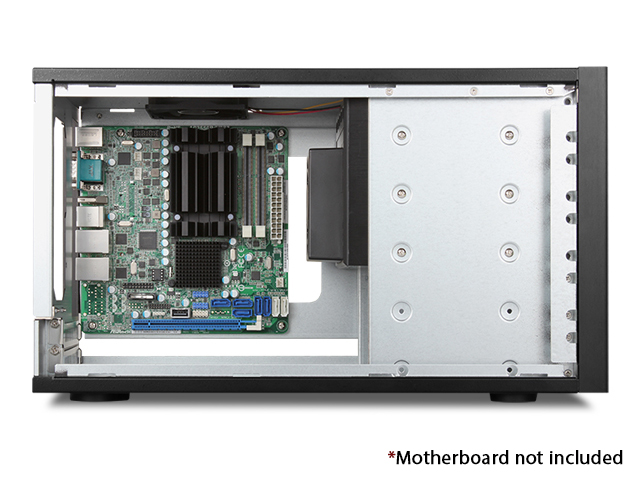

  • Support mini-ITX Motherboard
  • Power and HDD LED Indicators
  • One 80mm Cooling Fan
  • Internal 2.5" Bay for OS HDD



Product Introduction
The external multi-bay NAS tower series are designed specially for storage applications. The wide variety of the tower with hard drive cages is able to easily max the hard drive capacity up to 8 bays for storing mass data. Quiet 80mm cooling fan enhances the ventilation inside. The external NAS tower chassis with solid construction is a cost-effective and flexible solution for your critical data storage.


Model NumberS-915-DE5
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 5
5.25" Drives: 2
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypeATX PS2
Expansion Slots2
SecurityKey Lock
Material of Front BezelAluminum
Material of Main ChassisSECC 0.8mm
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector1x USB 2.0
Motherboard Size6.7 x 6.7 (mini-ITX)
Cooling Fan1x80mm
Ordering Information
(Part Number)		Black HDD Handle:S-915-DE5BK Blue HDD Handle:S-915-DE5BL Red HDD Handle:S-915-DE5RD Silver HDD Handle:S-915-DE5SL
Dimensions (WxHxD)7.23" x 9.29" x 16.46"
183.6 mm x 236.0 mm x 418.1 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name

Featured Videos

There are currently no iStarVideos for this Item.
