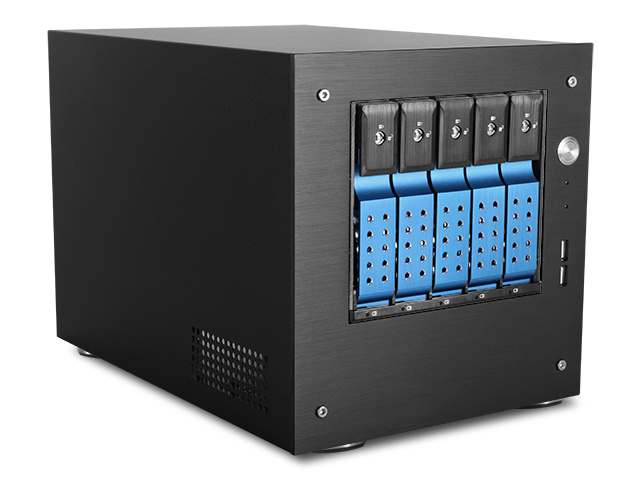

S-35-DE5
Compact Stylish 5x 3.5" Hotswap Trayless mini-ITX Tower
  • Sleek Front Panel with Power On Button
  • 5x 3.5" Trayless Hotswap Bays
  • 4mm Aluminum Front Panel
  • Support 6.0Gb/s SATA/SAS HDDs
  • Compatible with Flex Power Supply
  • Heavy Duty SECC Construction
  • Support Standard I/O Slot
  • Support mini-ITX Motherboard

Product Introduction
The external multi-bay tower series are designed specially for storage applications. The wide variety of the tower with hard drive cages is able to easily max the hard drive capacity up to 5 bays for storing mass data. Optional 120mm cooling fan can be added to enhance the ventilation inside. The external NAS tower chassis with solid construction is a cost-effective and flexible solution for your critical data storage. YouTube video: How to build a NAS or HTPC with the iSG Industrial S-35-DE4 4x 3.5" Hotswap Trayless mini-ITX Tower https://youtu.be/dyT8PdKIjiQ


Model NumberS-35-DE5
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 5
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Supported PSU Type1U Flex
Expansion Slots1
Material of Front BezelAluminum 4mm
Material of Main ChassisSECC 0.8mm
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size6.7 x 6.7 (mini-ITX)
Optional Fan:120mm x1
Ordering Information
(Part Number)		Black HDD Handle:S-35-DE5BK
Blue HDD Handle:S-35-DE5BL
Red HDD Handle:S-35-DE5RD
Silver HDD Handle:S-35-DE5SL
Dimensions (WxHxD)8.68" x 8.90" x 12.76"
220.5 mm x 226.1 mm x 324.1 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
