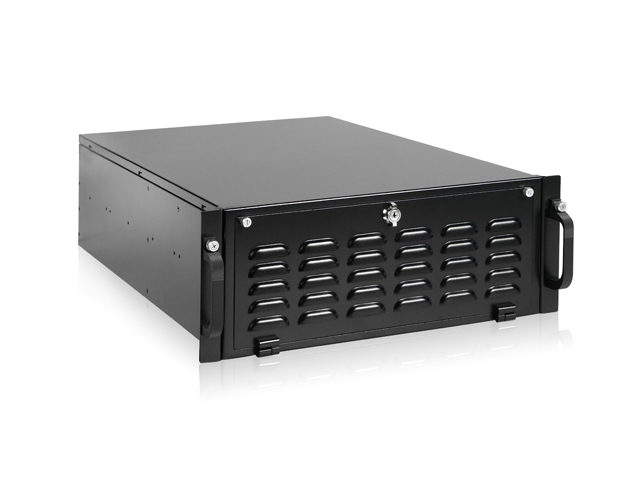

RG-4630-14
4U Rugged 14-slot Backplate High Performance Rackmount Chassis

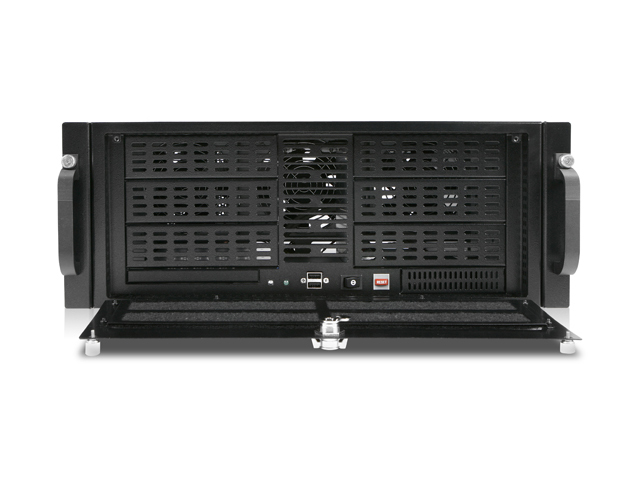

  • Spill-proof bezel with Lock
  • 1.6mm SGCC heavy-duty cold-rolled steel
  • Anti-vibration drive cage design
  • Removable air filter
  • Front access USB 2.0 x2
  • Redundant power supply compatible

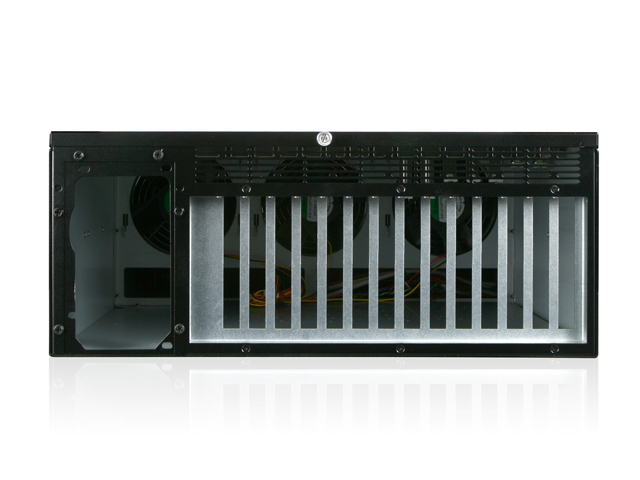

  • 14-slot passive backplate



Product Introduction
The Rugged Series rackmount chassis are designed to withstand the toughest and compact environment and perform industrial applications that require spill proof with 26?? in depth. The RG-4630-14 is designed with a spill proof bezel with a key lock, 1.6mm heavy-duty SECC stell, and shock absorbing drive cage to have the maximum protection. This 4U rugged high performance rackmount chassis is designed with a 14-slot backplate, 2 front access USB2.0 ports, 6x 5.25?? Bay, 2x 3.5?? internal bay, 1x 3.5?? external bays, and 5.25?? slim bay. The IPC Rugged series is the most versatile and tough rackmount chassis for critical application


Model NumberRG-4630-14
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 2
5.25" Drives: 6
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots14
SecurityKey Lock
Material of Main ChassisHeavy-duty SECC 1.6mm Cold-rolled Steel
Color of Main ChassisBlack
Front Connector2x USB 2.0
Air FilterBezel Filter
Motherboard SizePassive backplane/ Single board
Cooling Fan3x120mm
Dimensions (WxHxD)19.00" x 7.00" x 26.00"
482.6 mm x 177.8 mm x 660.4 mm
