RG-3400T
3U Rugged Rackmount Chassis
  • Rugged, durable chassis made with 1.6mm-thickness SGCC

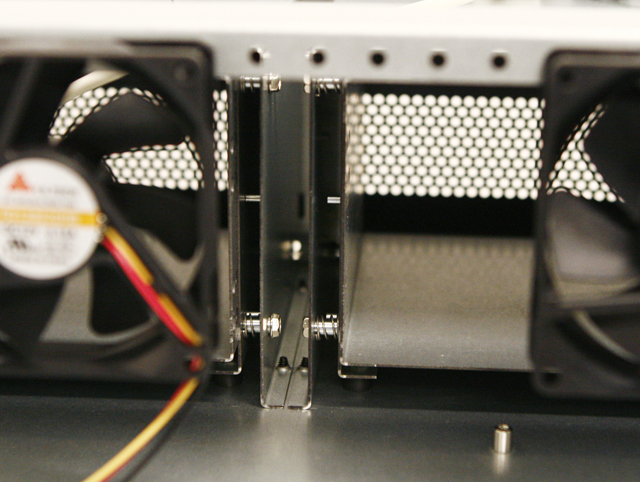

  • Anti-vibration HDD cage design for shock and high-vibration environments

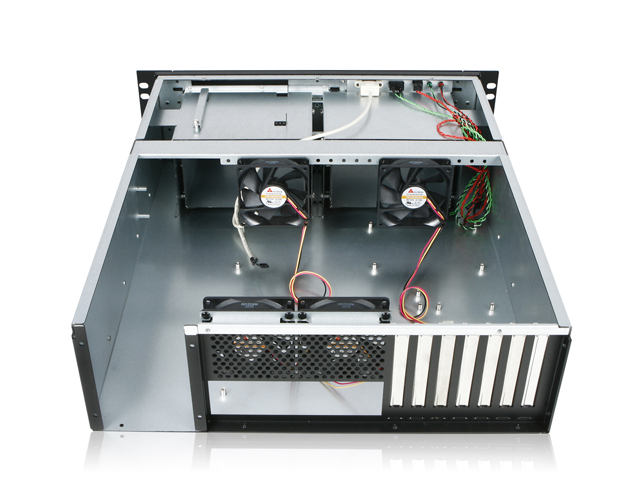

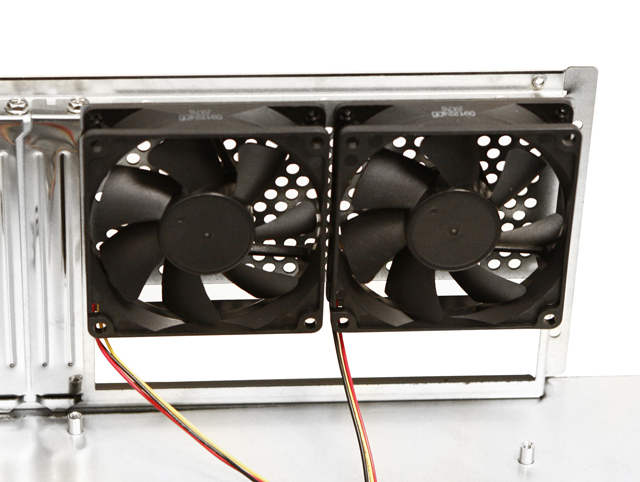

  • Cooling provided by 4x 80mm fans in middle and back of chassis for high pressure air flow

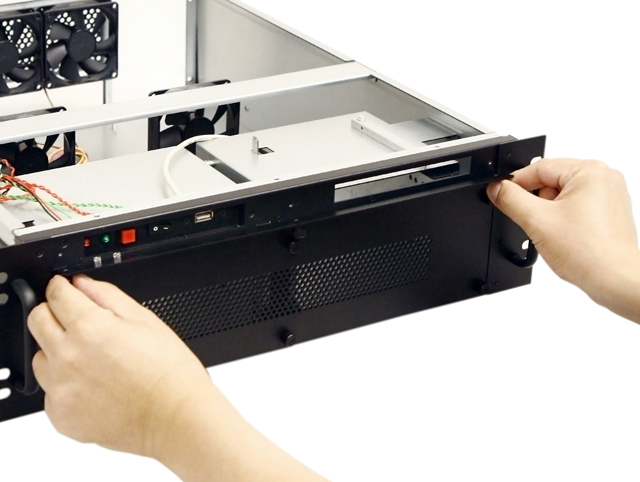

  • Power and reset buttons mounted behind the removable bezel to prevent unintentional access

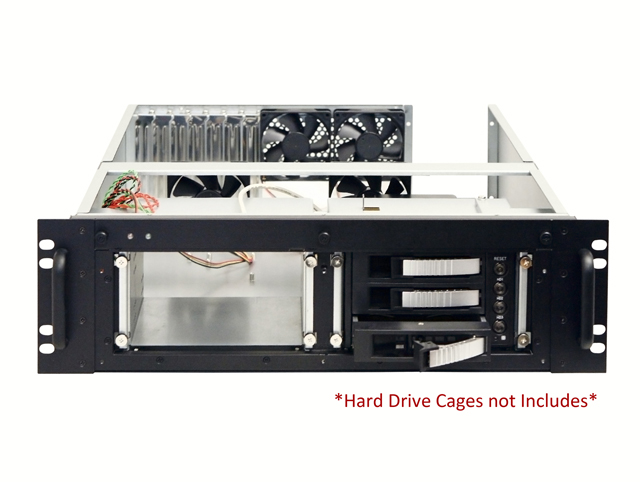

  • Removable front plate; easy access to drive cages
  • Compatible with ATX and microATX motherboards
  • Power and HDD access indicator LEDs are visible through front bezel
  • Compatible with redundant power supplies for zero downtime
  • 4x 5.25" drive bays + 1x internal 3.5" bay + 1x 5.25" slim optical drive bay



Product Introduction

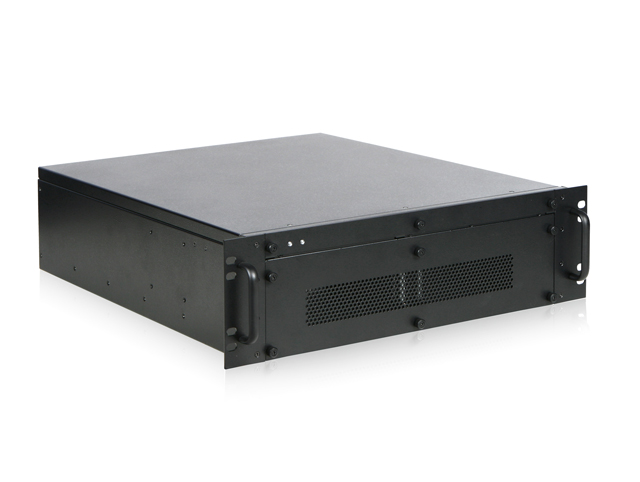

The Rugged Series RG-3400T rackmount chassis is designed to withstand the toughest environments and industrial applications. The RG-3400T is designed with a spill proof bezel, 1.6mm heavy-duty SECC steel, 21" depth, and shock-absorbing drive cages to provide maximum protection. This 3U rugged rackmount chassis is designed with 2 front access USB2.0 ports, 1x 3.5" internal bay, 4x 5.25" bays, and 1x 5.25" slim ODD bay. The IPC Rugged Series is the most versatile and toughest rackmount chassis for critical applications.


Model NumberRG-3400T
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 1
5.25" Drives: 4
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset

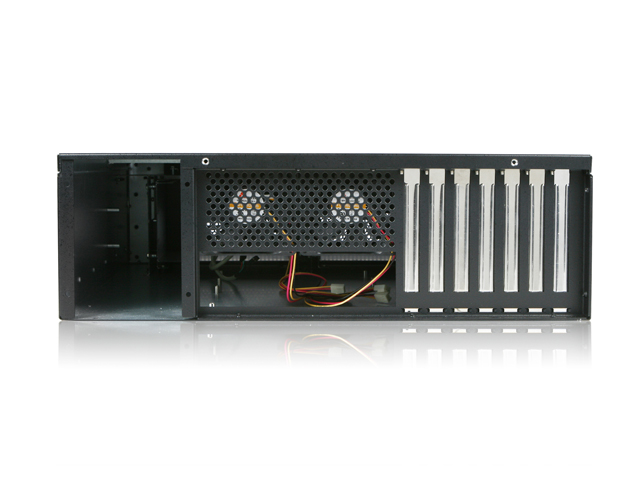

Expansion Slots7
Material of Main ChassisHeavy-duty SGCC 1.6mm
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan4x80mm
Dimensions (WxHxD)19.00" x 5.23" x 20.50"
482.6 mm x 132.8 mm x 520.7 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P9X79 WSCEBASUS

Z8PE-D18EEBASUS

Z9PE-D16EEBASUS

Z9PR-D12EEBASUS

Z9PE-D16/2LEEBASUS

Z9PE-D8 WSEEBASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

EN2C602CEBASRock

EN2C602-4LCEBASRock

EN2C602/D12EEBASRock

EN2C602-4L/D12EEBASRock

EP2C602EEBASRock

EP2C602/D16EEBASRock

EP2C602-4LEEBASRock

EN2C602-4L/D16EEBASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S7002CEBTYAN

S7040CEBTYAN

S7010EEBTYAN

S7050EEBTYAN

S7052EEBTYAN

S7045EEBTYAN

S7053EEBTYAN

S7012EEBTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE

GA-7PCSLCEBGIGABYTE

GA-7PESH4EEBGIGABYTE

GA-7PESH2EEBGIGABYTE

GA-7PESH3EEBGIGABYTE

GA-7PESH1EEBGIGABYTE

GA-7PESE3EEBGIGABYTE

GA-7PESLEEBGIGABYTE
