RG-3023H

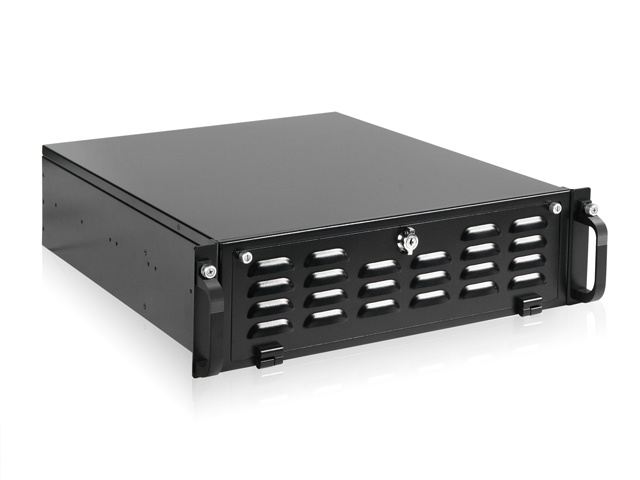

3U Rugged 3x3.5" HDD Hotswap Rackmount Chassis

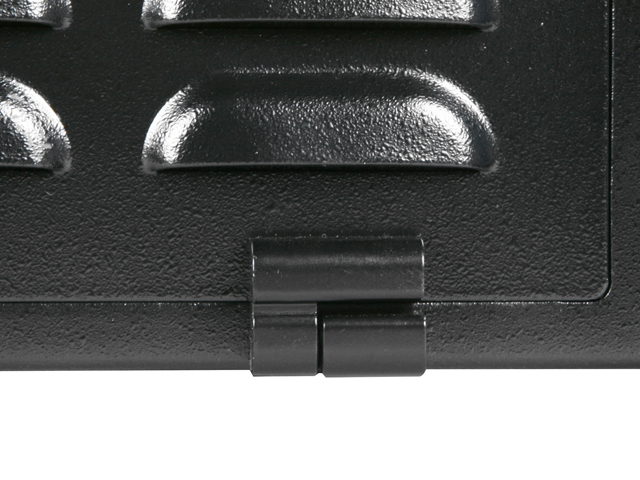

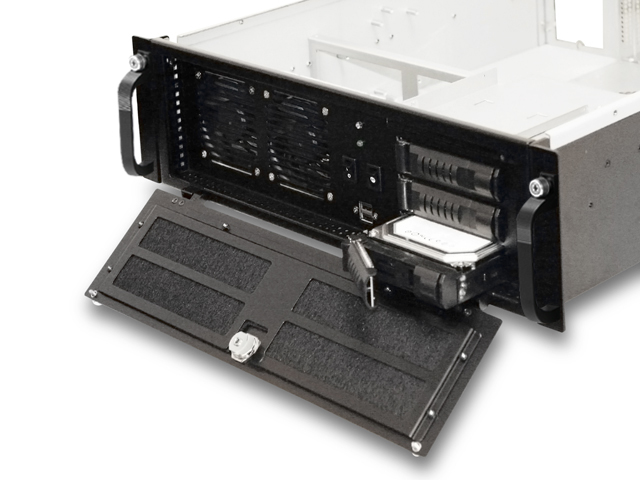

  • Spill-proof bezel with Lock
  • 1.6mm SGCC heavy-duty cold-rolled steel

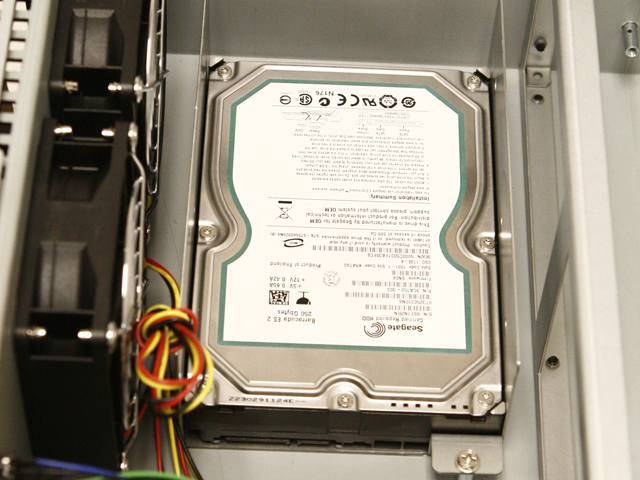

  • Anti-vibration drive cage design
  • Removable air filter
  • Front access USB 2.0 x2
  • Redundant power supply compatible

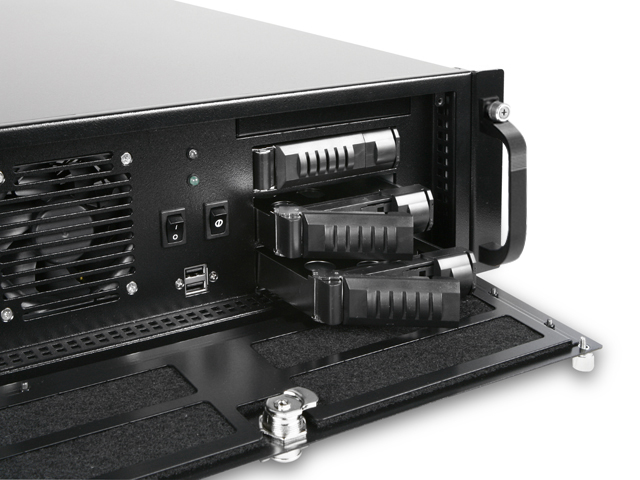

  • Built-in 3x 3.5" HDD hotswap
  • 3.5" Hotswap bay supports SATA/SAS 6.0Gb/s

Product Introduction

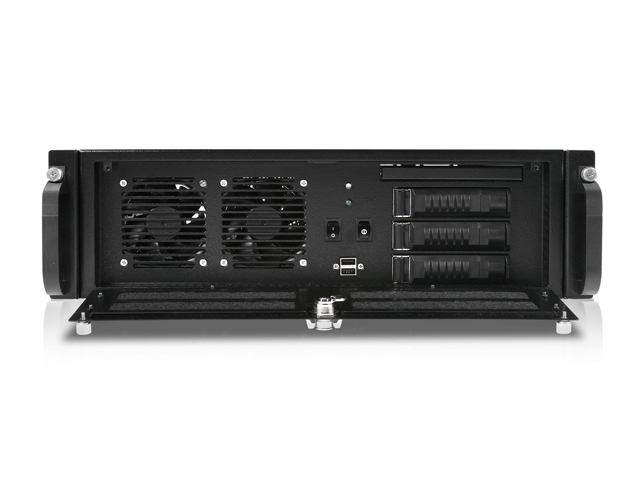

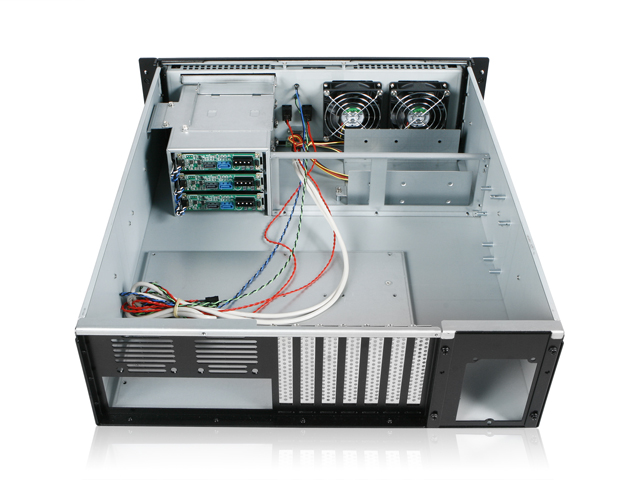

The Rugged Series rackmount chassis are designed to withstand the toughest and compact environment and perform industrial applications that require spill proof with 21?? in depth. The RG-3023H is designed with a spill proof bezel with a key lock, 1.6mm heavy-duty SECC steel, and shock absorbing drive cage to have the maximum protection. This 3U rugged rackmount chassis is designed with 2 front access USB2.0 ports, 2x 3.5?? internal bay, 3x 3.5?? hotswap bays, and 5.25?? slim bay. The IPC Rugged series is the most versatile and tough rackmount chassis for critical application


Model NumberRG-3023H
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 2
Hotswap 3.5": 3
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU Type2U/3U

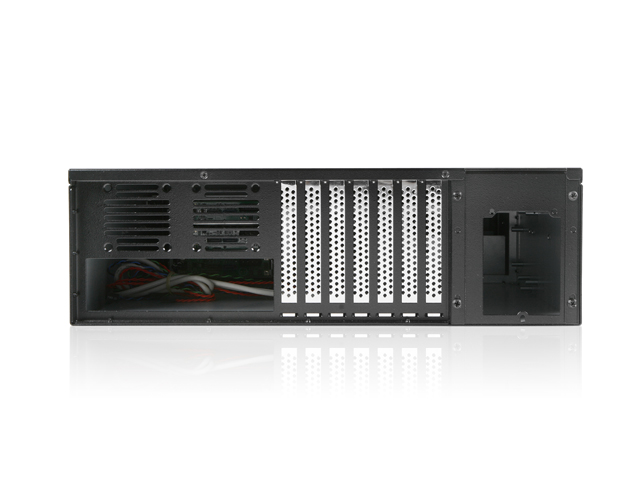

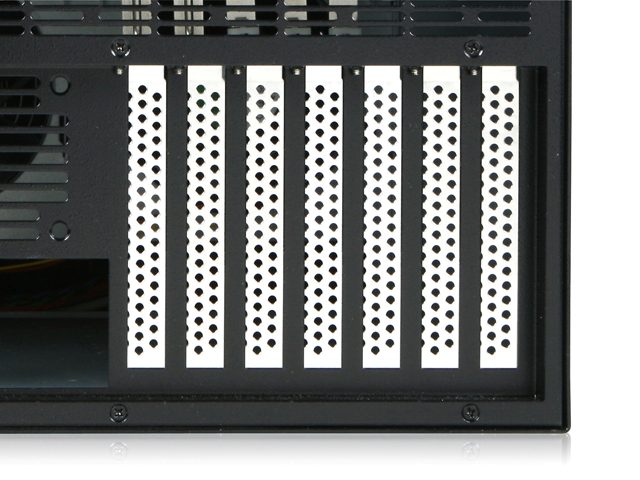

Expansion Slots7
SecurityKey Lock
Material of Main ChassisHeavy-duty SECC 1.6mm Cold-rolled Steel
Color of Main ChassisBlack
Front Connector2x USB 2.0
Air FilterBezel Filter
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan2x60mm, 2x80mm
Dimensions (WxHxD)19.00" x 5.20" x 21.00"
482.6 mm x 132.1 mm x 533.4 mm


Download
There are no downloadable media for this product.
FAQ

QWhat are the Blue SATA port and Black SATA port used for?
ABlue port is primary port for SAS and SATA HDD. Black port is secondary port for SAS HDD.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE
