RG-2210

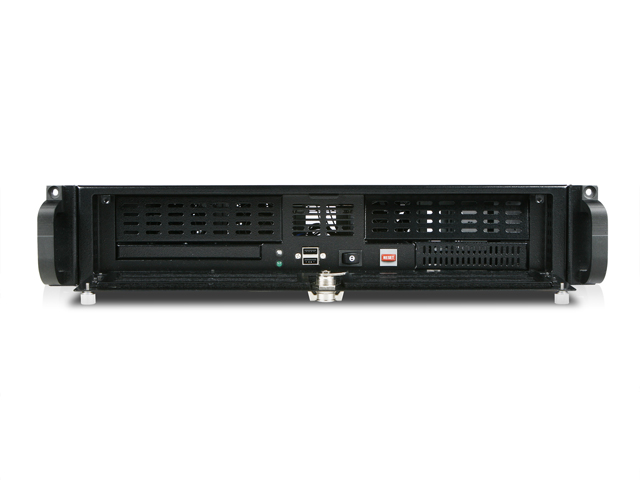

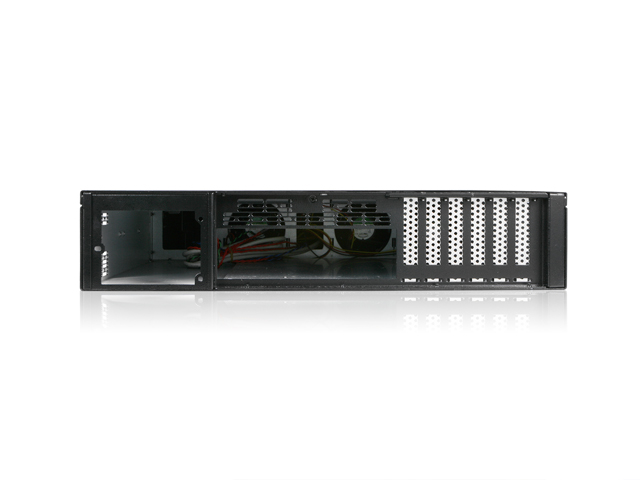

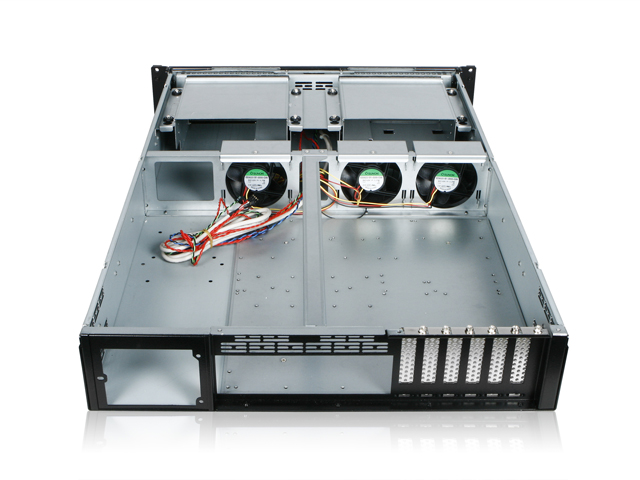

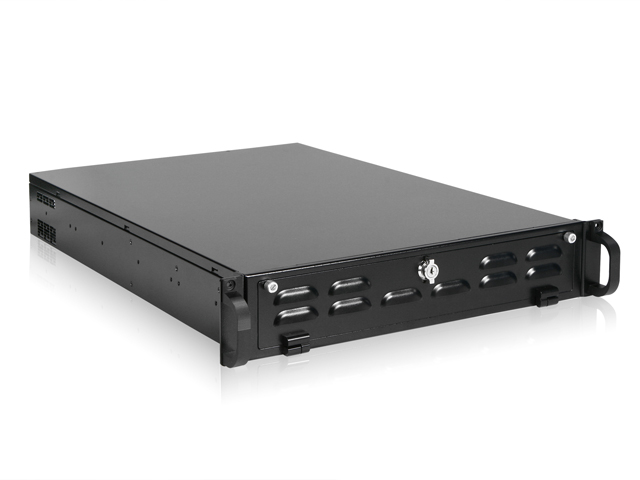

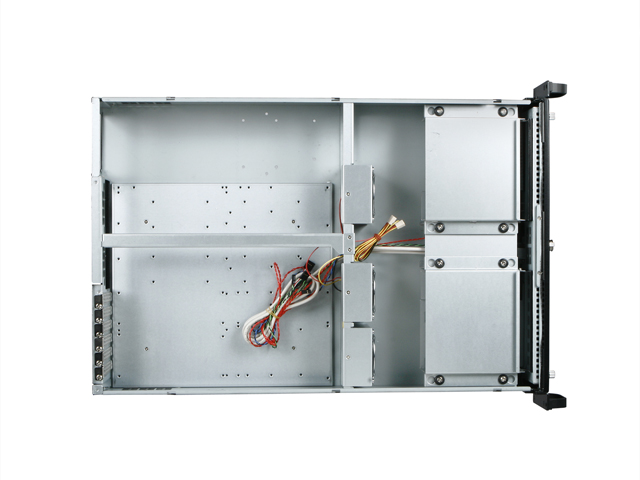

2U Rugged 2x5.25" Bays EATX High Performance Rackmount Chassis

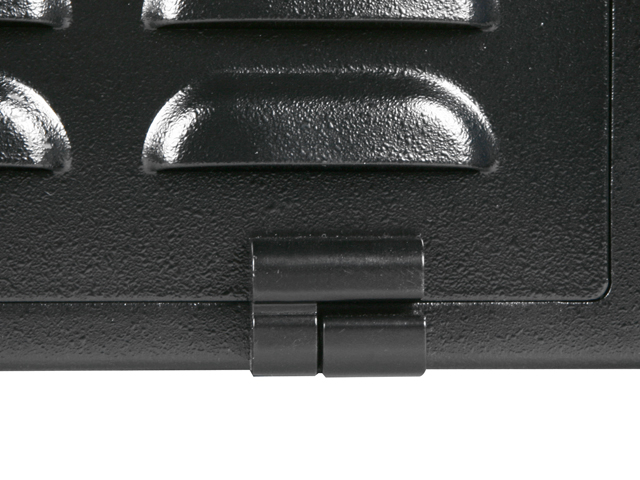

  • Spill-proof bezel with Lock
  • 1.6mm SGCC heavy-duty cold-rolled steel
  • Anti-vibration drive cage design
  • Removable air filter
  • Front access USB 2.0 x2
  • Redundant power supply compatible

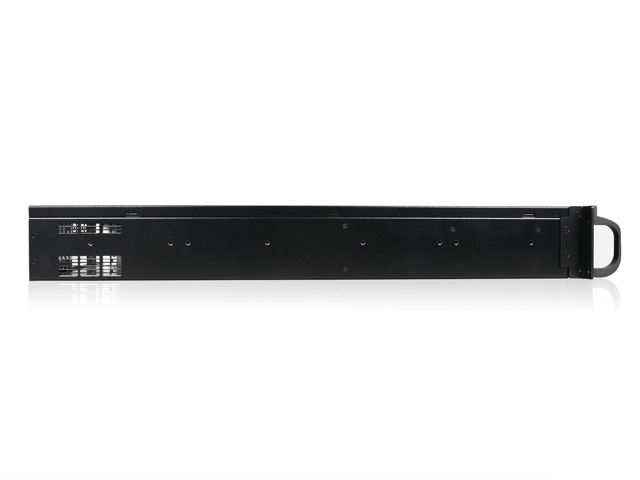

  • Side air ventilation design



Product Introduction
The Rugged Series rackmount chassis are designed to withstand the toughest and compact environment and perform industrial applications that require spill proof with 26?? in depth. The RG-2210 is designed with a spill proof bezel with a key lock, 1.6mm heavy-duty SECC steel, and shock absorbing drive cage to have the maximum protection. This 2U rugged high performance rackmount chassis is designed with 2 front access USB2.0 ports, 2x 5.25?? bay, 3.5?? external bays and 5.25?? slim bay. The IPC Rugged series is the most versatile and tough rackmount chassis for critical application


Model NumberRG-2210
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
5.25" Drives: 2
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU Type2U
Expansion Slots6 (Low profile)
SecurityKey Lock
Material of Main ChassisHeavy-duty SECC 1.6mm Cold-rolled Steel
Color of Main ChassisBlack
Front Connector2x USB 2.0
Air FilterBezel Filter
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan3x80mm
Dimensions (WxHxD)19.00" x 3.50" x 26.00"
482.6 mm x 88.9 mm x 660.4 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P9X79 WSCEBASUS

Z8PE-D18EEBASUS

Z9PE-D16EEBASUS

Z9PR-D12EEBASUS

Z9PE-D16/2LEEBASUS

Z9PE-D8 WSEEBASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

EN2C602CEBASRock

EN2C602-4LCEBASRock

EN2C602/D12EEBASRock

EN2C602-4L/D12EEBASRock

EP2C602EEBASRock

EP2C602/D16EEBASRock

EP2C602-4LEEBASRock

EN2C602-4L/D16EEBASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S7002CEBTYAN

S7040CEBTYAN

S7010EEBTYAN

S7050EEBTYAN

S7052EEBTYAN

S7045EEBTYAN

S7053EEBTYAN

S7012EEBTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE

GA-7PCSLCEBGIGABYTE

GA-7PESH4EEBGIGABYTE

GA-7PESH2EEBGIGABYTE

GA-7PESH3EEBGIGABYTE

GA-7PESH1EEBGIGABYTE

GA-7PESE3EEBGIGABYTE

GA-7PESLEEBGIGABYTE
