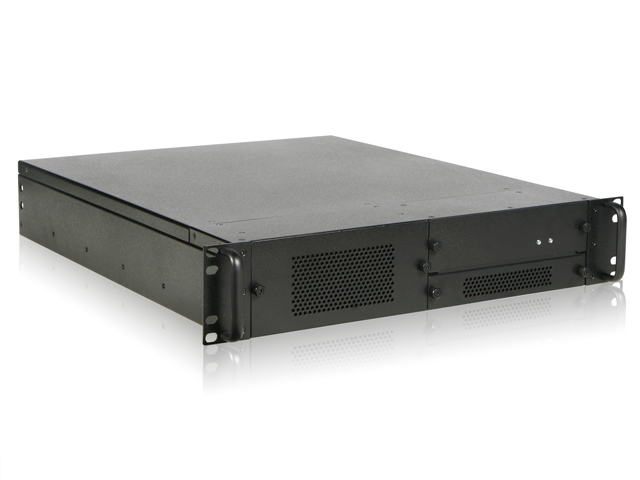

RG-2200T
2U Rugged Rackmount Chassis
  • 1.6mm SGCC with rugged construction

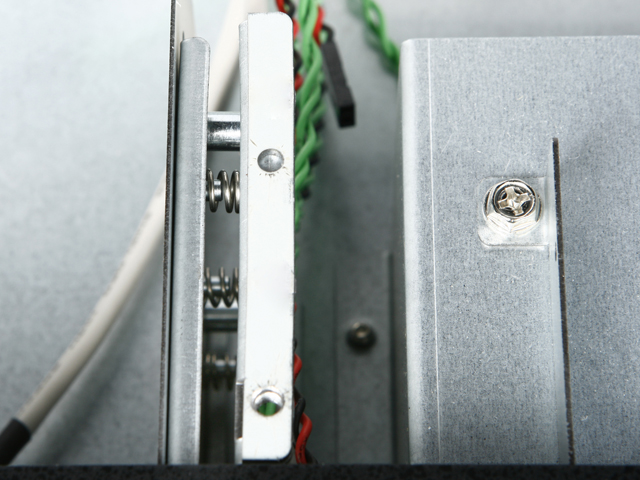

  • Anti-vibration HDD cage design for shock and high vibration environments

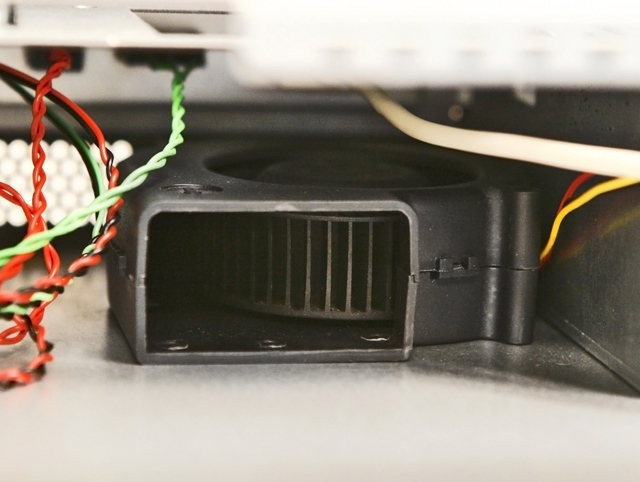

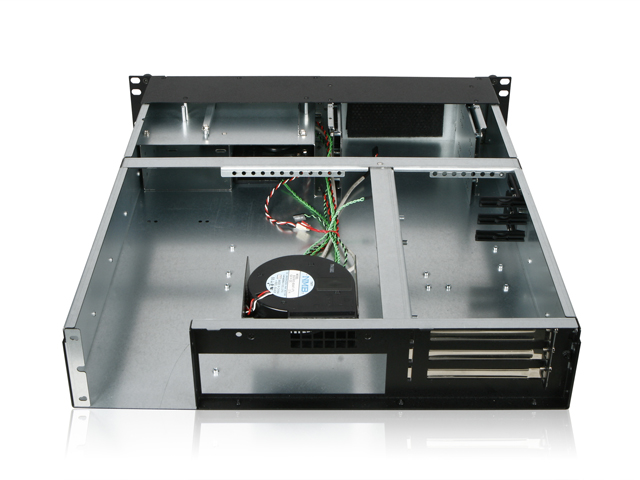

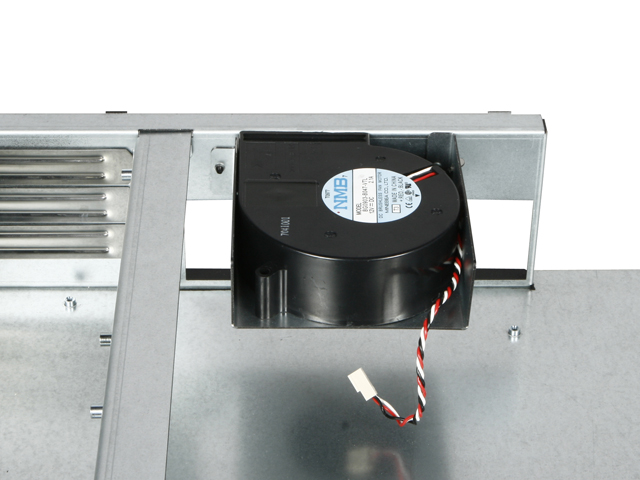

  • Cooling provided by 2x 90mm blower fans in front and back of chassis for high pressure air flow
  • Power and reset buttons mounted behind the removable bezel to prevent unintentional access

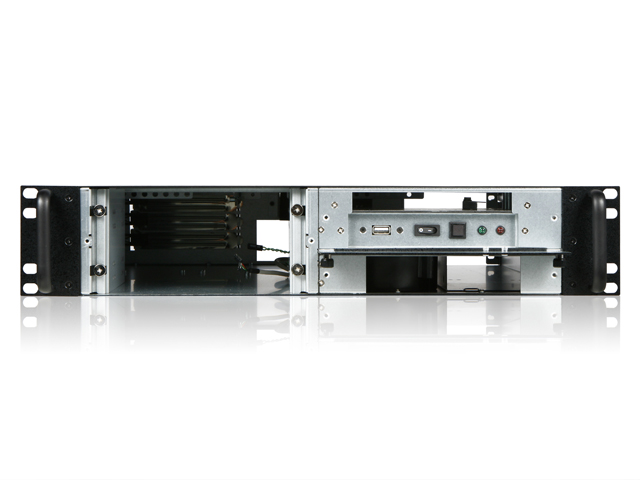

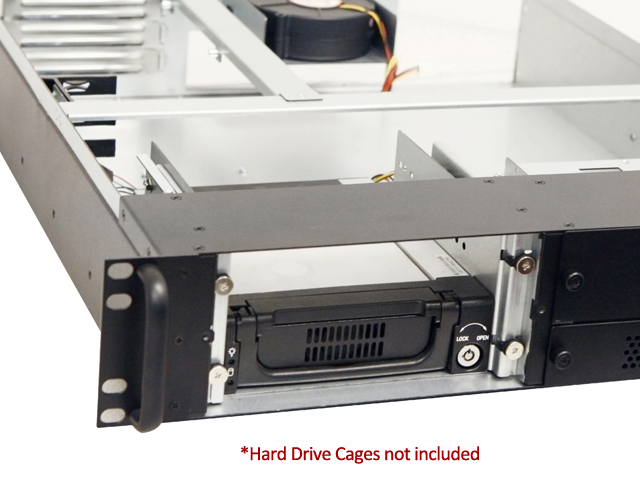

  • Removable front plate. Easy access to drive cage
  • Ease of maintenance with one front hotswap blower fan
  • Compatible with ATX and microATX motherboards
  • Power LED and HDD access indicator are visible through the bezel
  • Compatible with redundant power supply for zero down time



Product Introduction
The Rugged Series rackmount chassis are designed to withstand the toughest and compact environment and perform industrial applications that require spill proof with 21" in depth. The RG-2200T is designed with a spill proof bezel, 1.6mm heavy-duty SECC steel, and shock absorbing drive cage to have the maximum protection. This 2U rugged rackmount chassis is designed with 2 front access USB2.0 ports, 2x 3.5" internal bay, 2x 5.25" bays, and 5.25" slim bay. The IPC Rugged series is the most versatile and tough rackmount chassis for critical application


Model NumberRG-2200T
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 2
5.25" Drives: 2
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower, Reset

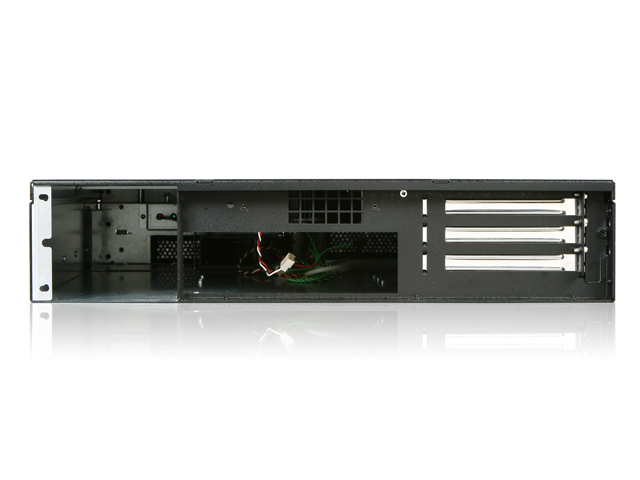

Expansion Slots3
Material of Main ChassisHeavy-duty SGCC 1.6mm
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan2x90mm blower
Dimensions (WxHxD)19.00" x 3.50" x 20.50"
482.6 mm x 88.9 mm x 520.7 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE
