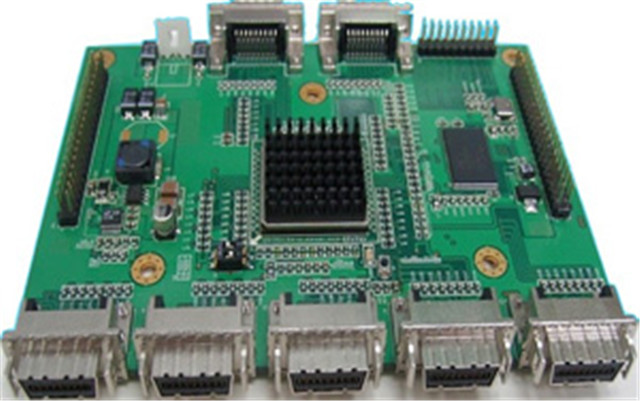

PD-BSS328
Expander 28 port
  • 4 PCB Layer
  • Support LSI expander CHIP LSA62045B1 SAS X28 port
  • Support 28 fully-independent SAS and SATA II ports
  • SSP, SMP, STP protocol support
  • Support 1.5G/3.0G b/s SAS/SATA II data transfer rates
  • Support Port independent auto-negotiation
  • Ports are non-denominational. Initiator or target connect. Provides a low latency connection router with crossbar module to efficiently create and maintain connections
  • Support SATA/SAS HDD spin-up sequencing, configurable on a per-PHY basis
  • Support J1 1 pcs 25 pin infiniband connector 4 port for SAS HBA card input
  • Support J2 1 pcs 25 pin infiniband connector 4 port SAS daisy chain to next expander JBOD use
  • Support J3~J7 5 pcs 25 pin infiniband connector 20 port hard disk for SAS backplane
  • Support JP3 2 X 10P pin header for firmware update
  • Support JP1 2 X 20p pin header for hard disk activity LED bright
  • Support JP2 2 X 20p pin header for hard disk fail LED bright
  • Support single port for SAS expander
  • Support small 4P DC power connector

Product Introduction



Model NumberPD-BSS328
RoHS Compliance VersionYes
Standard Drive Bays None
Dimensions (WxHxD)5.60" x 3.90" x 0.10"
142.2 mm x 99.1 mm x 2.5 mm
