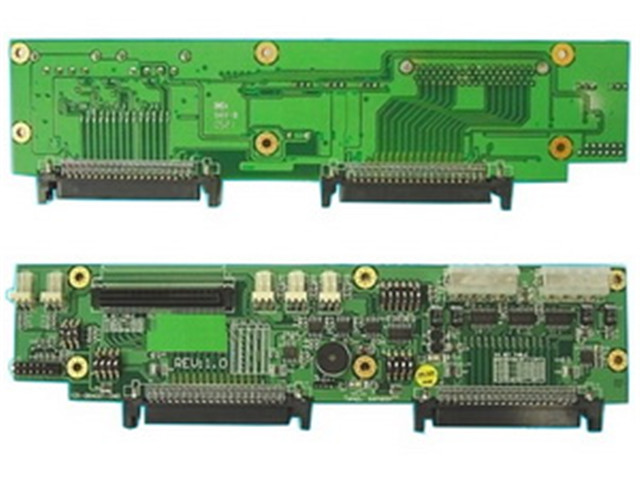

PD-BSC102
1U 2-PORT RAID backplane
  • 4 PCB Layer
  • Support SCSI interface: Ultra 320/160 backward compatibility
  • Support hard disk drive 80pin SCA2 Ultra 320/160 backward compatibility
  • Support SCSI-IN connector. (68 pin female)
  • Support 2-bay hard disk drive inrush current control for Hot-swapping
  • Support 5pcs external fan speed monitoring, fan failure buzzer alarm and red led active function (Buzzer on board)
  • Support temperature monitor for 50? or 60?
  • Support 5P DIP switch for FAN monitor disable and temperature select for 50? or 60? function
  • Support 3P DIP switch for HDD motor spin mode select to Delay Start or Remote Start and terminator enable or disable function
  • Support 2 x power 90 deg connectors in big 4-pin D-type
  • Support external pin header LED's monitoring for HDD access and mute and fail LED
  • Active terminator on board with auto detection for Ultra-320/160 backward compatibility
  • Support HDD ID setting function default is ID0, ID1

Product Introduction



Model NumberPD-BSC102
RoHS Compliance VersionYes
Standard Drive Bays None
Dimensions (WxHxD)9.10" x 2.00" x 0.10"
231.1 mm x 50.8 mm x 2.5 mm
