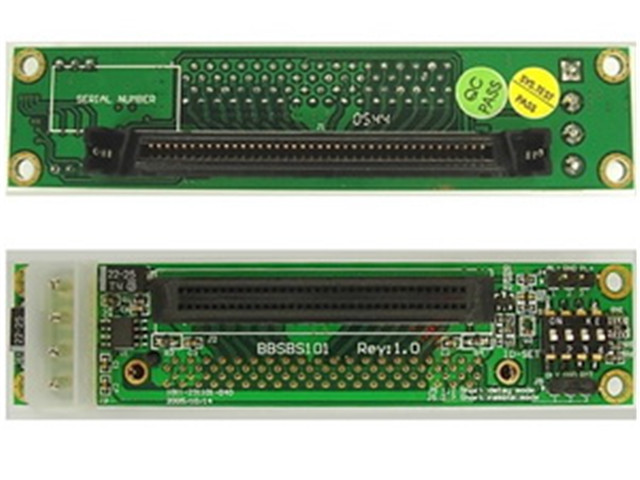

PD-BSC101
1U 1-PORT backplane
  • 4 PCB Layer
  • Support SCSI interface: Ultra 320/160 backward compatibility
  • Support hard disk drive 80pin SCA2 Ultra 320/160 backward compatibility
  • Support SCSI-IN connector. (68 pin female)
  • Support 1-bay hard disk drive inrush current control for Hot-swapping
  • Support hard disk drive Delay_Start or Remote_Start function
  • Support 1 x power connectors in big 4-pin D-type
  • Support 1 external LED?s monitoring for HDD installation, HDD access LED pin
  • Support Dip switch ID setting function, default ID is ID0

Product Introduction



Model NumberPD-BSC101
RoHS Compliance VersionYes
Standard Drive Bays None
Dimensions (WxHxD)4.00" x 0.90" x 0.10"
101.6 mm x 22.9 mm x 2.5 mm
