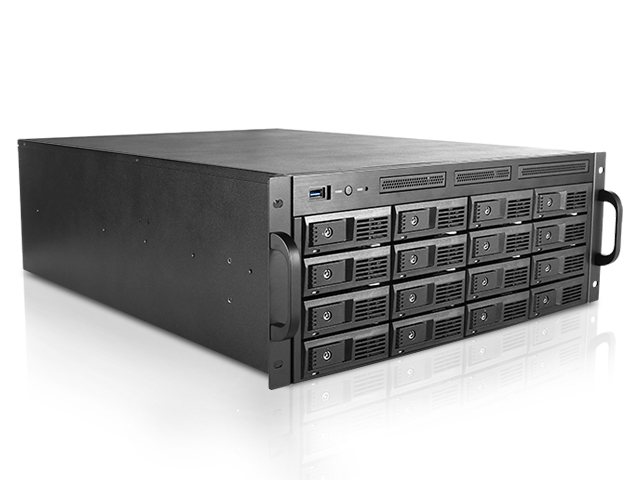

M-4160-ATX 4U 3.5" 16-Bay Trayless Storage Server Rackmount Chassis

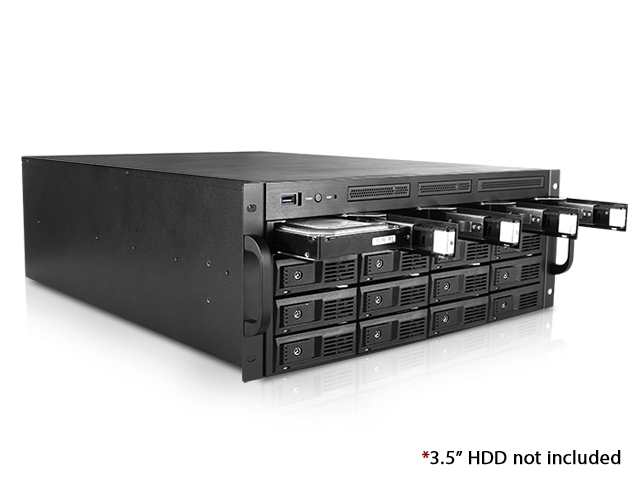

Trayless and Hot-swappable 16x 3.5" Drive Bays
World's first trayless server rackmount

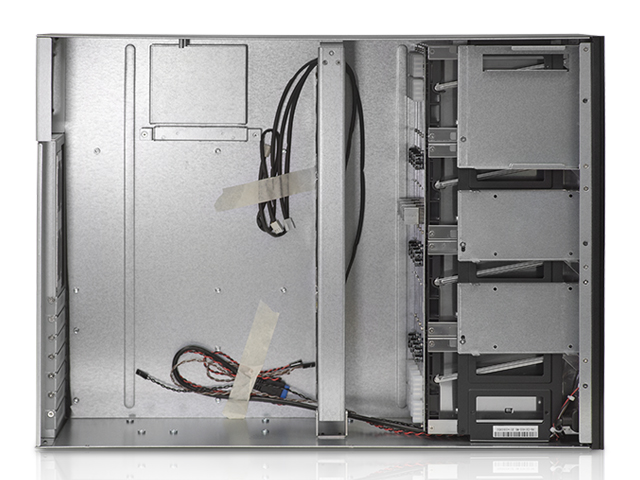

miniSAS (SFF-8087) Backplane
Metal key lock for HDD front bezel
Fully RoHS Compliance
USB 3.0 in front for easy access

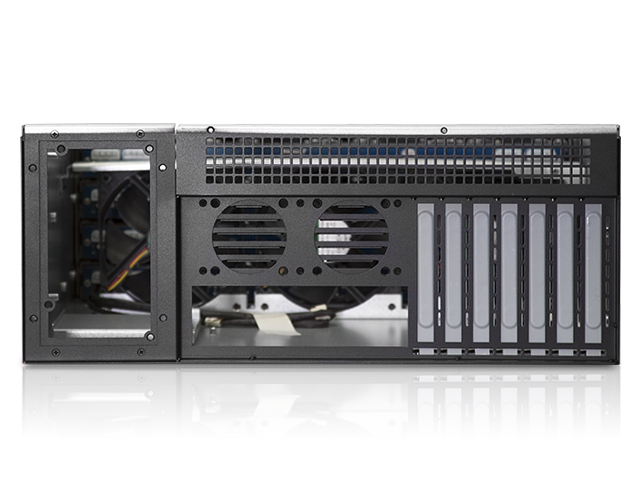

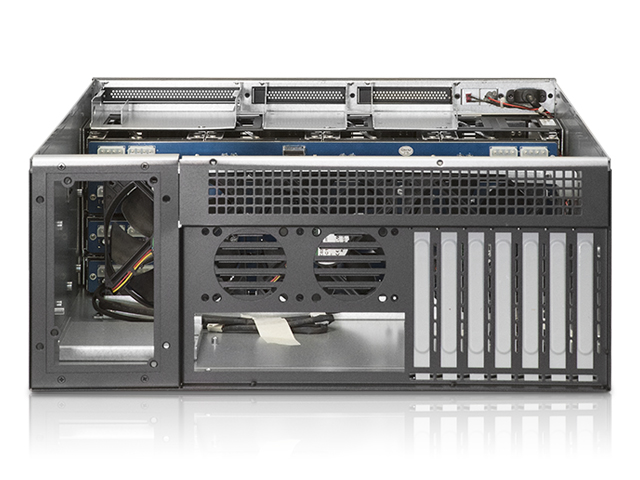

Supports standard ATX power supplies
Compatible with redundant power supplies
High density storage server chassis
Product Introduction
The M-4160-ATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis has four SFF-8087 connectors on the backplane to support the latest SAS and SATA hard drives and also is compatible with ATX and mini redundant power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

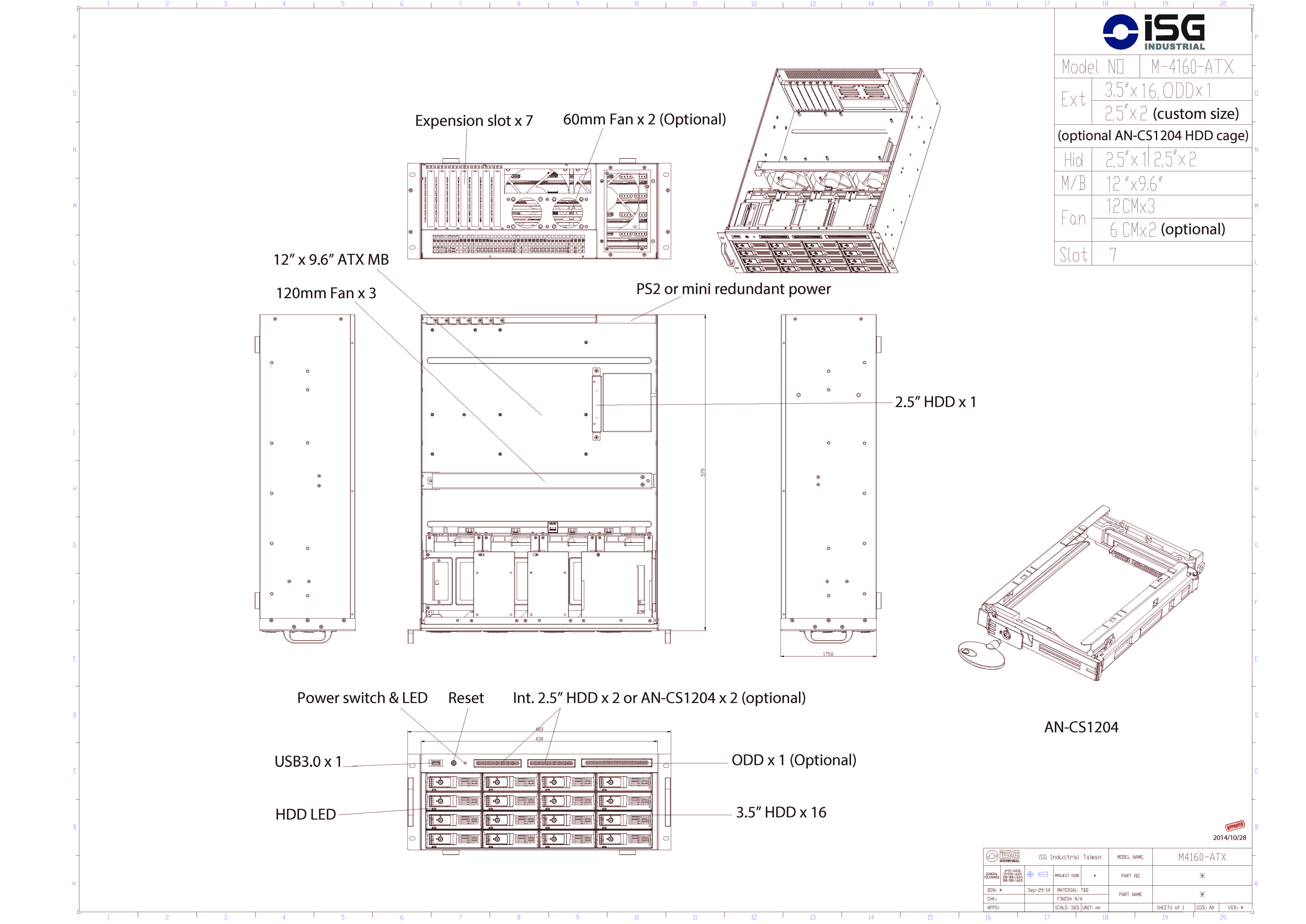

19.00" x 6.92" x 22.83" 482.6 mm x 175.8 mm x 579.9 mm
Notes
- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply.
- HDD backplane is compatible with SAS drives w/o SAS features supported.
