M-3120-JB

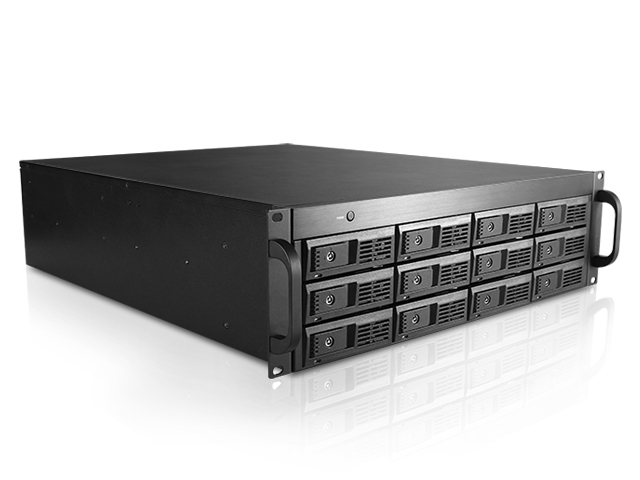

3U 3.5" 12-Bay Trayless JBOD Storage Rackmount Chassis

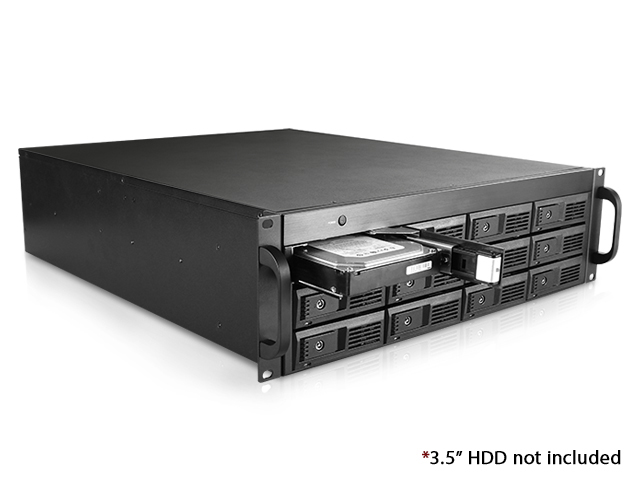

  • Trayless and Hot-swappable 12x 3.5" Drive Bays
  • World's first trayless storage rackmount
  • miniSAS (SFF-8087) Backplane
  • Metal key lock for HDD front bezel
  • Fully RoHS Compliance
  • Centronics cut-outs to support various interface bridgeboards



Product Introduction
The M-3120-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis has three SFF-8087 connectors on the backplane to support the latest SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.


Model NumberM-3120-JB
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 3.5": 12
5.25" Ext. Bay: 1 (at back panel)
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Supported PSU TypeATX PS2

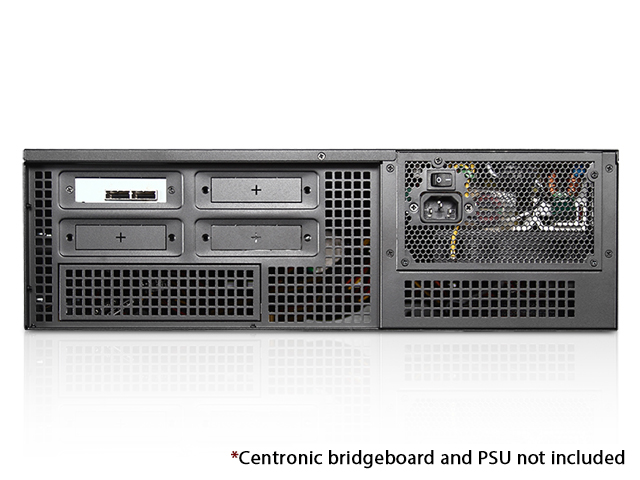

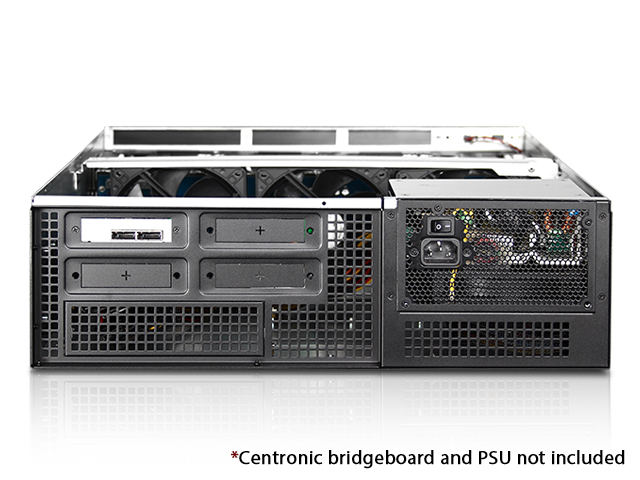

Expansion Slots4 (Centronics)
SecurityKey Lock
Material of Front BezelAluminum plus steel
Material of HandleAluminum
Material of Main ChassisSteel
Color of Front BezelBlack
Color of Main ChassisBlack
Cooling Fan3x80mm
Dimensions (WxHxD)19.00" x 5.20" x 22.83"
482.6 mm x 132.1 mm x 579.9 mm
Notes- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. - HDD backplane is compatible with SAS drives w/o SAS features supported.
