M-280-MATX

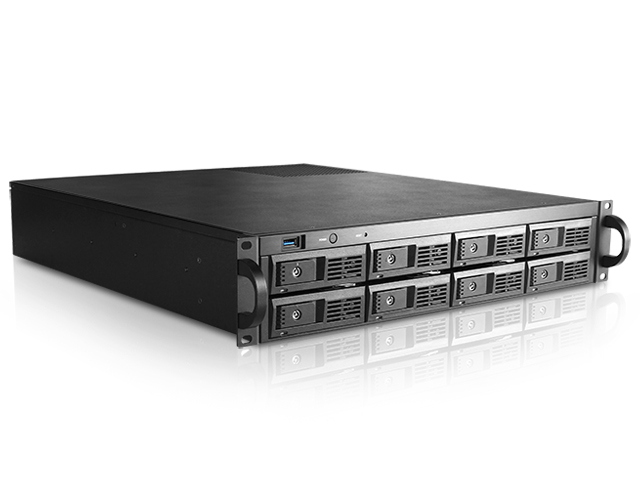

2U 3.5" 8-Bay Trayless Storage Server Rackmount Chassis
  • Trayless and Hot-swappable 8x 3.5" Drive Bays
  • World's first trayless server rackmount
  • miniSAS (SFF-8087) backplane
  • Metal key lock for HDD front bezel
  • Fully RoHS Compliance
  • USB 3.0 in front for easy access
  • Supports standard ATX power supplies
  • Compatible with redundant power supplies
  • High density storage server chassis



Product Introduction
The M-280-MATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis has two SFF-8087 connector on the backplane to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.


Model NumberM-280-MATX
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 8
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypeATX (PS2) / mini Redundant PSU
Expansion Slots4 (Low profile)
SecurityKey Lock
Material of Front BezelAluminum plus steel
Material of HandleAluminum
Material of Main ChassisSteel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector1x USB 3.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan3x80mm
Dimensions (WxHxD)19.00" x 3.47" x 21.69"
482.6 mm x 88.1 mm x 550.9 mm
Notes- may need right angle miniSAS (SFF-8087 to SFF-8087) cables on hdd backplane side - each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. - HDD backplane is compatible with SAS drives w/o SAS features supported.
