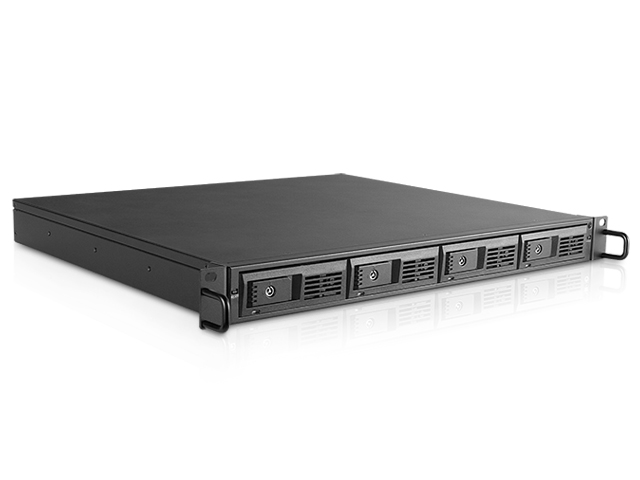

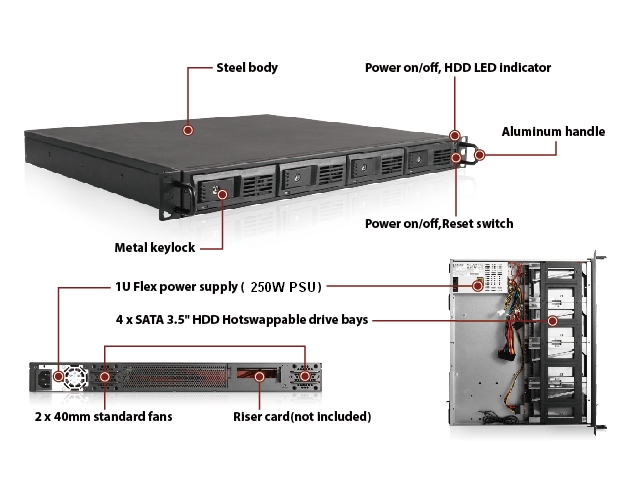

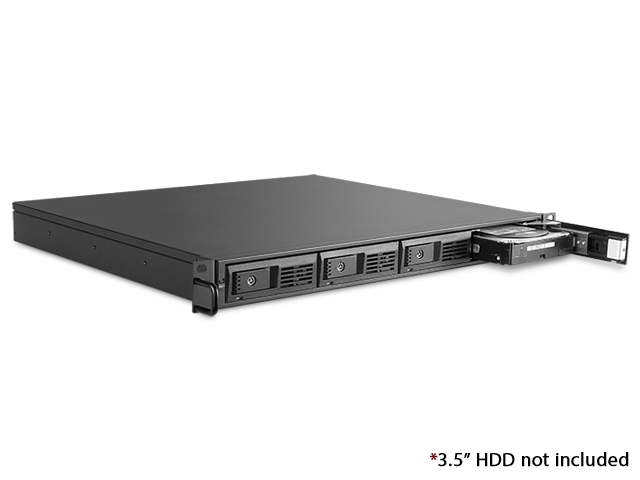

	M-140-ITX 1U 3.5" 4-Bay Trayless Storage Server Rackmount Chassis Trayless and Hot-swappable 4x 3.5" Drive Bays Power and HDD Activity Indicators Peer to Peer 4x SATA Ports Backplane Metal Keylock Fully RoHS Compliant Built-in 250W Flex PSU
Product Introduction The M-140-ITX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis also has a built-in 250W flex power supply and four peer-to-peer SATA ports on the backplane to support the latest SAS and SATA hard drives. The M series chassis are also available in 2U, 3U, and 4U form factors. YouTube video: How to build a NAS with the iSG Industrial M-140-ITX 4x 3.5" Hotswap Trayless mini-ITX 1U chassis https://youtu.be/38PFALEJtj4

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	M-140-ITX
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 3.5": 4
Hotswap HDD Type:	3.5" SATA I/II/III
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	1U Flex
Expansion Slots	1 (Low profile)
Security	Key Lock
Material of Front Bezel	Plastic
Material of Handle	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Motherboard Size	6.7 x 6.7 (mini-ITX)
Cooling Fan	2x40mm
Dimensions (WxHxD)	19.00" x 1.75" x 14.96" 482.6 mm x 44.4 mm x 380.0 mm
Notes	- standard I/O shield will NOT fit any 1U chassis. - power cord is not included.

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis

Compatible Motherboards

Model #

Motherboard Size

Company Name
