EB-415-PM-JB

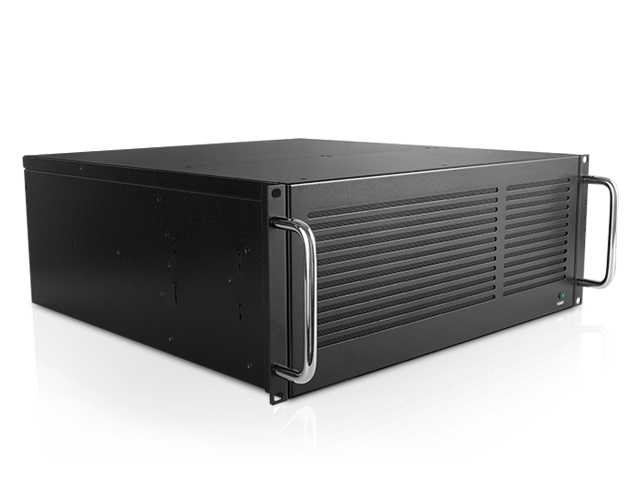

4U 15-Bay Port Multiplier Storage Server Rackmount Chassis JBOD

Product Introduction

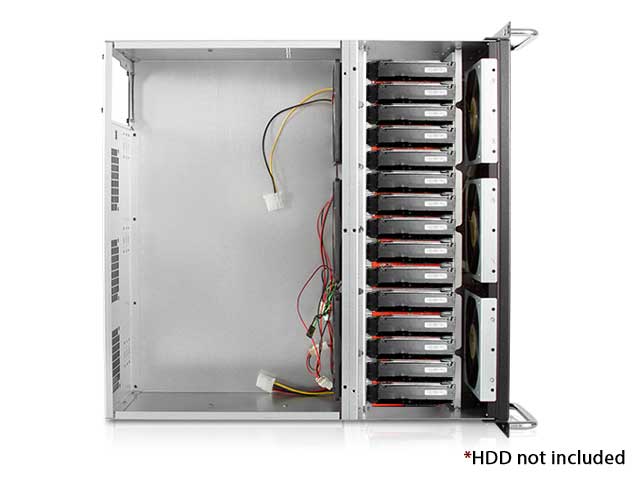

The EB-415-PM-JB storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EB-415-PM-JB a new breed of storage JBOD. As Port Multiplier technology has become a more cost effective solution, we has taken a step forward to prepare the migration of new technology and provide up to 15 HDD drive bays, and also provide redundant power supply to ensure total up time of mission critical JBOD applications.


Model NumberEB-415-PM-JB
RoHS Compliance VersionYes
Standard Drive Bays None
IndicatorsPower on/off
SwitchesPower
Supported PSU TypePS2 ATX
Material of Front BezelSteel
Material of HandleSteel
Material of Main ChassisSteel
Color of Front Bezelblack
Air Filteryes

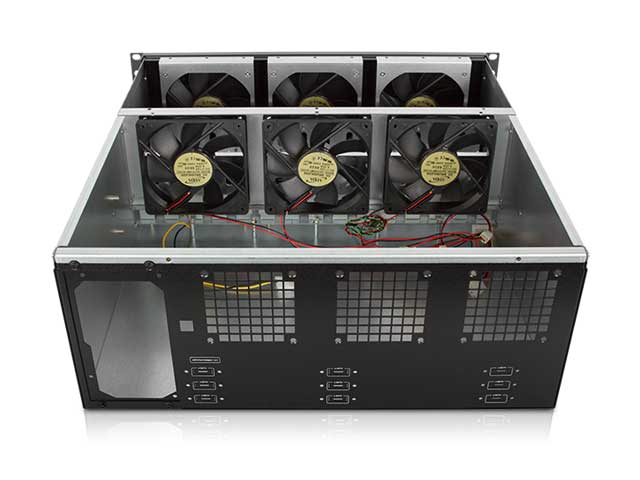

Cooling Fan6x120mm
Optional Fan:3x80mm
Dimensions (WxHxD)19.00" x 6.98" x 18.34"
482.6 mm x 177.3 mm x 465.8 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name

Featured Videos

There are currently no iStarVideos for this Item.
