EB-3201-ITX
Industrial Embedded Chassis

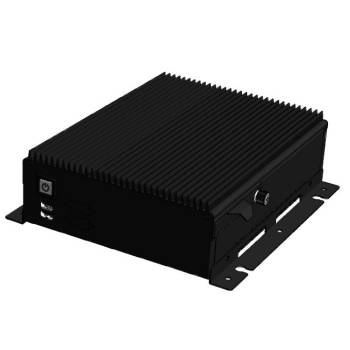

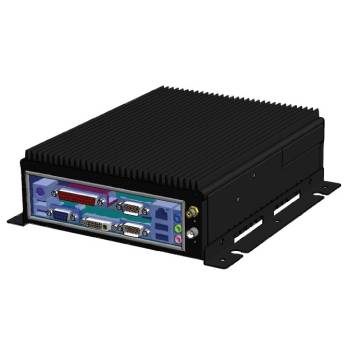

  • compac fanless case for 3.5" SBC. Enough space for all kinds of I/O.
  • This Fan less case can be used for most Mini-ITX MB that CPU TDP is less than 25W.
  • Because each MB has different CPU & NB position, so different MB need design a new radiator parts for CPU and Chip set.
  • It can be upgrade to Car PC (Add PS3012 Power Supply)

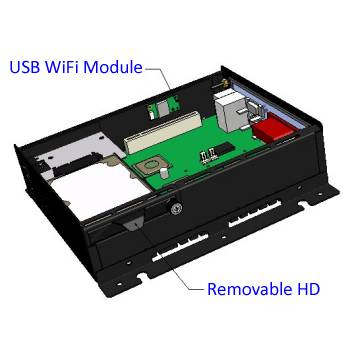

  • EB-3201-ITX has an extension slot for either PCI or PCI-Ex16 Card. It has Removable HDD function.
  • Add wall mount kit with anti-vibration stand-off, it have anti-vibration function
  • Available in Custom Color

Product Introduction



Model NumberEB-3201-ITX
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
IndicatorsPower, HDD
SwitchesPower
Material of Front BezelSECC 1.2mm
Color of Main ChassisBlack/White
Motherboard Size6.7 x 6.7 (mini-ITX)
Dimensions (WxHxD)7.13" x 9.13" x 2.81"
181.1 mm x 231.9 mm x 71.4 mm
NotesExpansion slot: PCI or PCI-E x16 Power supply: PS2105 + 60W Adapter, Option: 84W/150W Adapter MOQ: 30pcs


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name

Featured Videos

There are currently no iStarVideos for this Item.
