EB-3200-ITX
Industrial Embedded Chassis

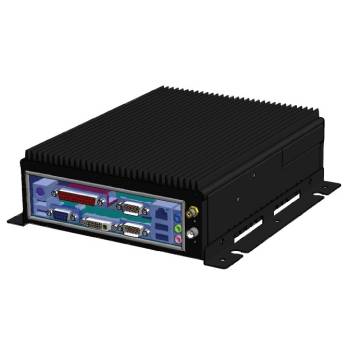

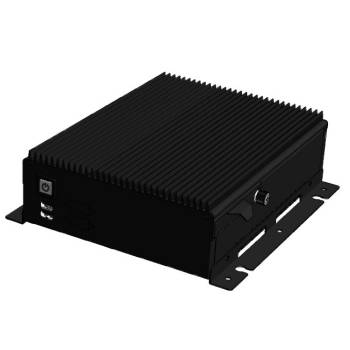

  • compac fanless case for 3.5" SBC. Enough space for all kinds of I/O.
  • Special Design of CPU Heat Sink set. It can fit for most of ATOM CPU MB on the market.
  • It can convert the stand MB I/O shield to Custom Design MB I/O shield

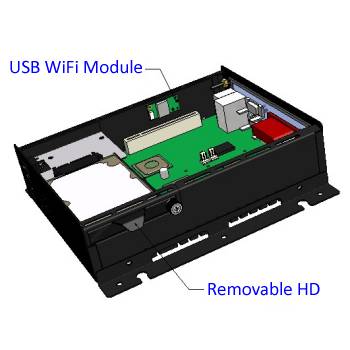

  • It can convert to a Removable Hard Drive System.
  • Space for ISG PS2154 D2D Power Supply.
  • Add wall mount kit with anti-vibration stand-off, it have anti-vibration function
  • Add ISG PS3012 or ISG PS3024 Car Power module, It can convert to a fully function of Fanless Car PC
  • Available in Custom Color

Product Introduction



Model NumberEB-3200-ITX
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
IndicatorsPower, HDD
SwitchesPower
Material of Front BezelSECC 1.2mm
Material of Main ChassisAluminum/Steel
Color of Main ChassisBlack/White
Motherboard SizeAny ATOM Mini-ITX MB (CPU TDP less than 10 Watt)
Dimensions (WxHxD)7.13" x 9.13" x 2.81"
181.1 mm x 231.9 mm x 71.4 mm
NotesDC to ATX power: PS2154, 215W 12VDC to ATX fanless Power Supply

Adapter: Option: 60W 12V Adapter or 84W 12V Adapter

Car PC power: Option: PS3012 Car PC power for 12V Battery (total 96 Watt output) Option: UN3024 Car PC power for 24V Battery (total 108 Watt output)
