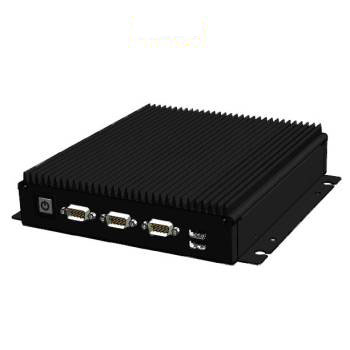

EB-3101-SBC
3.5" Fanless Case, Working Under 55°C

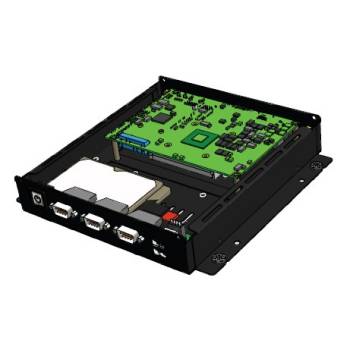

  • 1U Height compac fanless case for 3.5" SBC. Enough space for all kinds of I/O.
  • Fanless Aluminum Chassis Design
  • Available in Custom Color
  • Support 3.5 SBC Motherboard
  • With wall mount function. With anti-vibration stand-off, it have anti-vibration function
  • Operation Temperature -20°C ~ 55°C

Product Introduction



Model NumberEB-3101-SBC
RoHS Compliance VersionYes

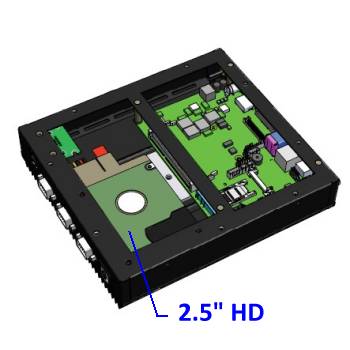

Standard Drive Bays 2.5" Drive (internal): 1
IndicatorsPower, HDD
SwitchesPower
Material of Front BezelSECC 1.2mm
Material of Main ChassisAluminum/Steel
Color of Main ChassisBlack/White
Motherboard Size3.5 (SBC)
Dimensions (WxHxD)8.50" x 7.95" x 1.73"
215.9 mm x 201.9 mm x 43.9 mm
NotesEach SBC will have different I/O port; every project will require different connectors. We can design it for free of charge. It can handle up to 20W TDP CPU.


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name

Featured Videos

There are currently no iStarVideos for this Item.
