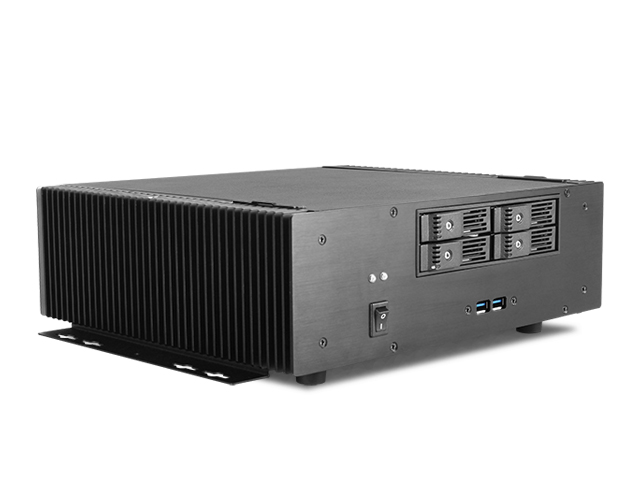

EB-2101-ITX
Build-to-Order - 4 x 2.5" Bays Industrial Embedded Chassis
  • Sleek Aluminum Front Panel with Power Button

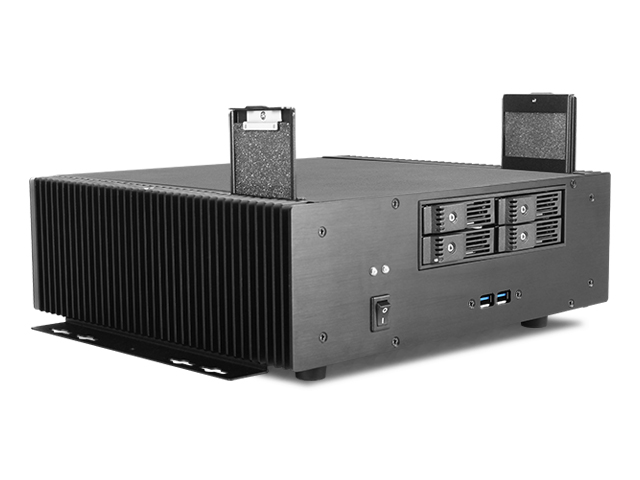

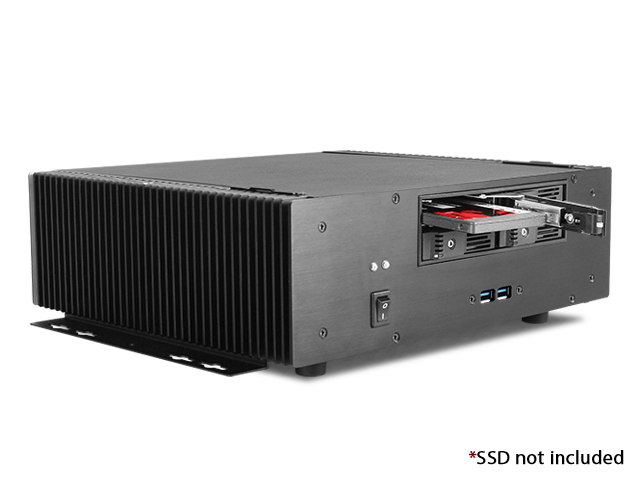

  • 4x 2.5" Hotswap Bays

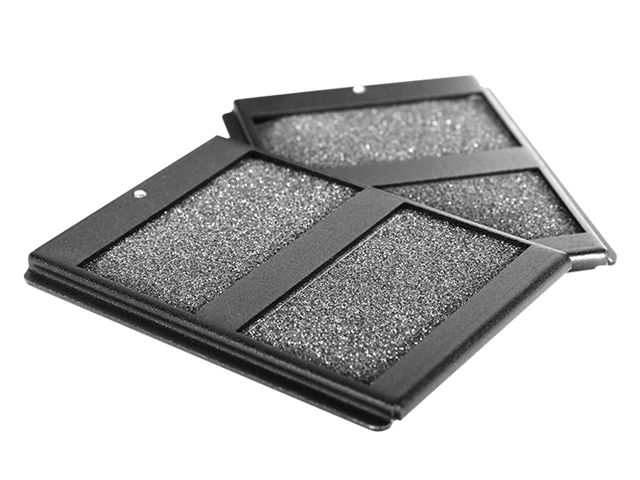

  • Removable Air Filter
  • Available in Custom Color
  • Support mini-ITX Motherboard
  • Optional Wall-mount Kit Available

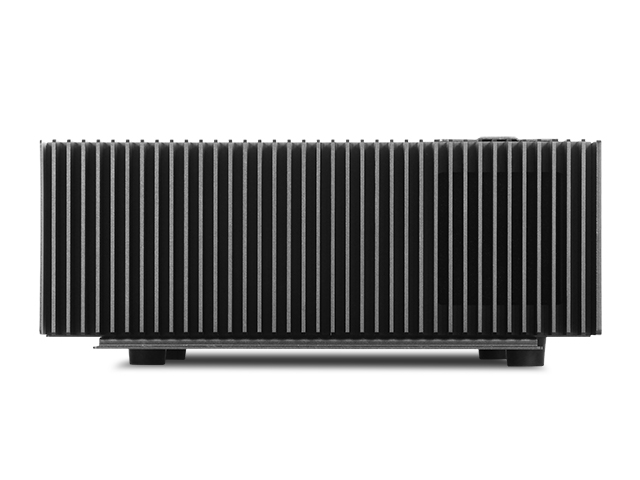

  • Fanless Design - good for CPU power consumption under 50W*



Product Introduction



Model NumberEB-2101-ITX
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 2.5": 4
IndicatorsPower, HDD
SwitchesPower
Supported PSU Type1U Flex
Expansion Slots1
Material of Front BezelAluminum
Material of Main ChassisAluminum & SECC 1.0mm
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 3.0
Air FilterRemovable
Motherboard Size6.7 x 6.7 (mini-ITX)
Cooling Fan2x80mm
Dimensions (WxHxD)12.00" x 3.70" x 10.60"
304.8 mm x 94.0 mm x 269.2 mm
Notesplease contact sales department for an OEM design with cooling fan(s) if the CPU power consumption is more than 50W to 70W


FAQ

QCPU Power Requirement Reference.
APlease refer to the PDF file.


Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
