EA-3M16-JB

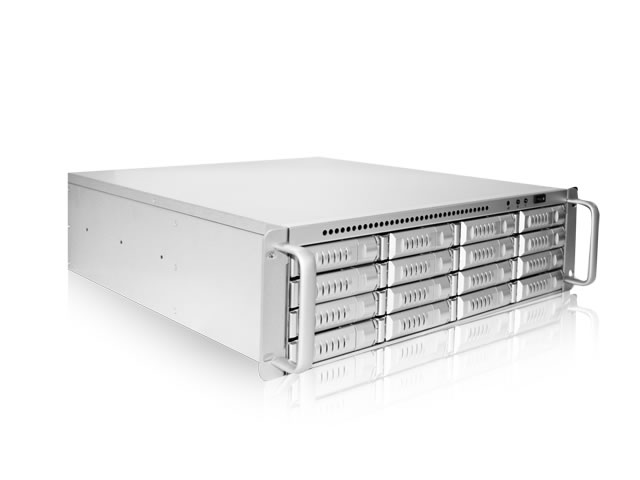

3U 16-Bay Storage Rackmount Chassis
  • Advance Thermal Cooling Design Optimizes Airflow

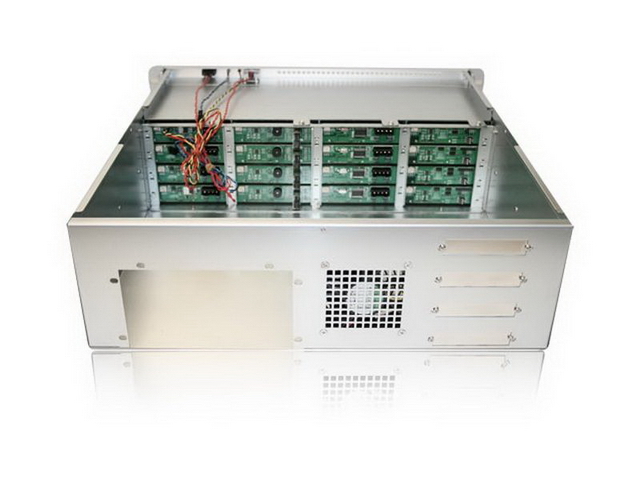

  • miniSAS (SFF-8087) HDD Backplane
  • Power + Fan Failure + HDD LED Indicator
  • Power/Alarm Reset Switch
  • Fully RoHS Compliance
  • Support 6.0Gb/s SAS/SATA Hard Drives



Product Introduction
The EA storage series rackmount not only has the stylish appearance, but the functionality and flexibility make EA series a new breed of disk array. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications. The EA Rack is a 19" rack mount storage chassis designed to fit onto industrial standard computer rack. Designed to provide tremendous configuration flexibility, the Storage Rack is an ideal platform for creating a custom storage solution with multi-terabytes capability for video storage or editing, data archiving, uninterruptible storage, storage farm or any application that requires high performance or high storage capacity or both. Unlike many of the expensive proprietary storage solution in the market, the Storage Rack offer similar performance and capability at much lower cost per GB storage. In addition, the the Storage Rack can also be easily reconfigured, modified or upgraded at any time to meet your new application need without investing into new storage devices or new storage box.


Model NumberEA-3M16-JB
RoHS Compliance VersionYes

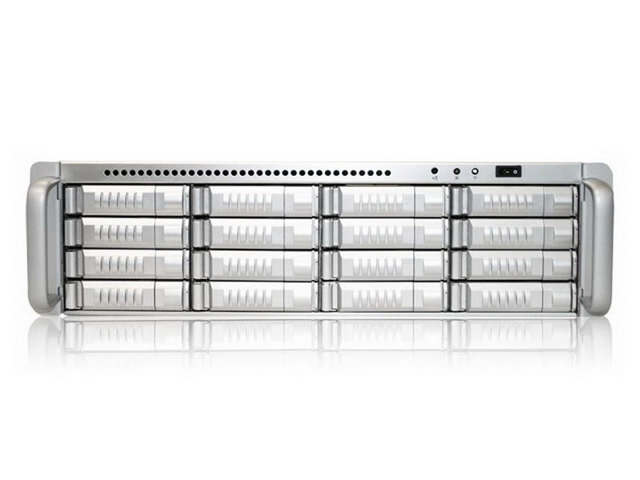

Standard Drive Bays Hotswap 3.5": 16
Hotswap HDD Type:3.5" SAS/ SATA II
IndicatorsPower + Fan Failure + HDD LED
SwitchesPower On/Off, Reset, Mute

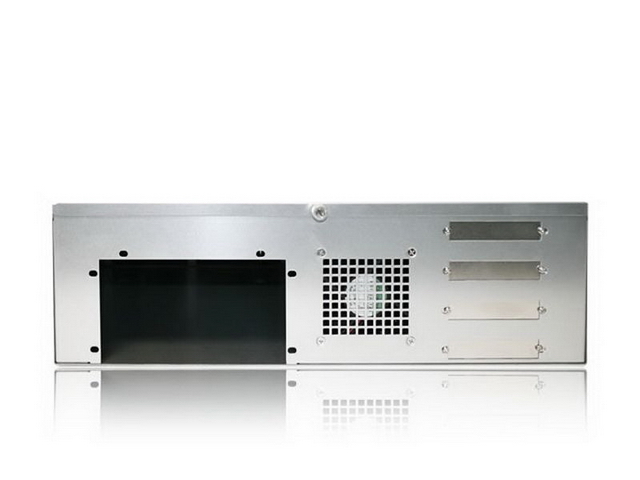

Expansion Slots4
Material of Front BezelTexture-Coated Aluminum
Material of HandleAluminum
Material of Main ChassisHeavy-Duty Cold-Roll Steel with Zinc-Plated Bright Chromate
Cooling Fan1x80mm
Dimensions (WxHxD)19.00" x 5.25" x 19.00"
482.6 mm x 133.3 mm x 482.6 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
CAGE-AAMMM1Build-to-Order - External mini SAS to External mini SAS Cable
CAGE-AAMMMI-HBuild-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
CAGE-AAMSM1External Multilane to External mini SAS Cable
ZAGE-D-8788-DUDual miniSAS Device Adapter
ZAGE-D-8788-SISingle miniSAS Device Adapter
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
