E2M4

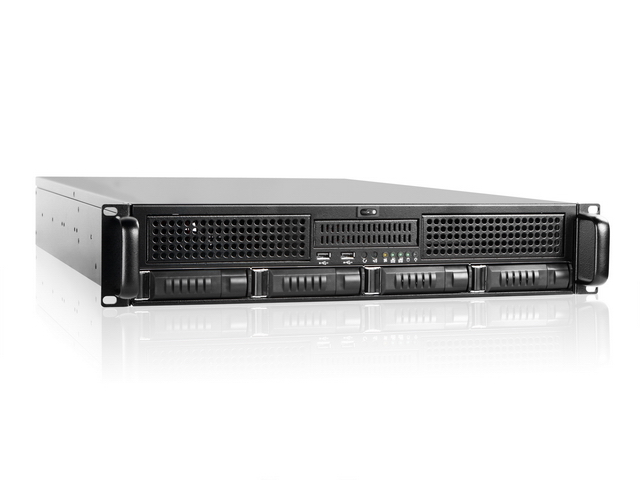

2U 4-Bay E-ATX Storage Server Rackmount Chassis
  • Front Access USB Connector
  • miniSAS (SFF-8087) HDD Backplane
  • Supports E-ATX Motherboard
  • Power + Fan Failure + HDD LED Indicator

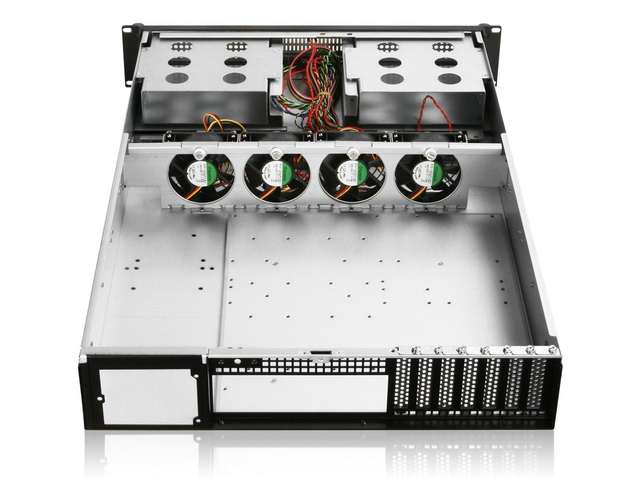

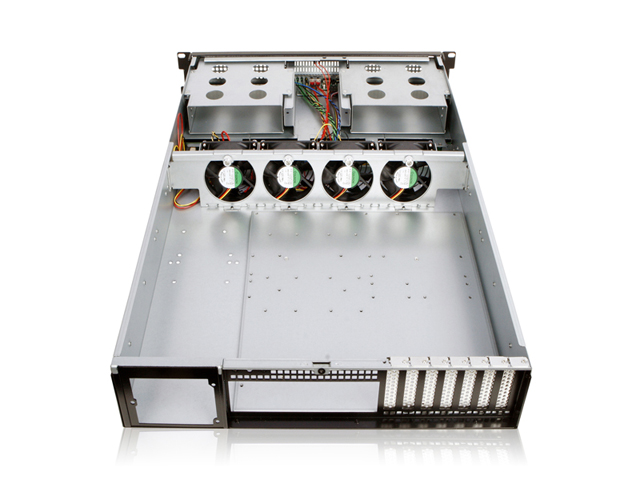

  • 4 Hot-swappable 80mm Cooling Fans with Status Monitor
  • Hard Drive Status Indicator for each Drive Bay
  • Advance Thermal Cooling Design Optimizes Airflow
  • Support 6.0Gb/s SAS/SATA Hard Drives



Product Introduction
The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.


Model NumberE2M4
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
Hotswap 3.5": 4
5.25" Drives: 2
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower + Fan Failure + HDD LED
SwitchesPower On/Off, Reset, Mute
Expansion Slots7 (Low profile)
Material of Main ChassisHeavy-duty SGCC Cold-rolled Steel
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan4x80mm
Dimensions (WxHxD)19.00" x 3.50" x 27.10"
482.6 mm x 88.9 mm x 688.3 mm


FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
CAGE-AAM1MI-HBuild-to-Order - Internal mini SAS to 4 SATA Cable
CAGE-AAMMMI-HBuild-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS

P8B-E(4L)ATXASUS

P8B-XATXASUS

P6T WS ProfessionalATXASUS

P6X58-E WSATXASUS

P8B WSATXASUS

P8C WSATXASUS

P8P67 WS REVOLUTIONATXASUS

P8Z77 WSATXASUS

Z9PA-U8ATXASUS

P9X79 WSCEBASUS

Z8PE-D18EEBASUS

Z9PE-D16EEBASUS

Z9PR-D12EEBASUS

Z9PE-D16/2LEEBASUS

Z9PE-D8 WSEEBASUS

P8B-MXMicro-ATXASUS

C216 WSATXASRock

E3C204ATXASRock

E3C204-4LATXASRock

E3C204-V+ATXASRock

E3C204-V4LATXASRock

H77WS-DLATXASRock

Z77 WSATXASRock

EN2C602CEBASRock

EN2C602-4LCEBASRock

EN2C602/D12EEBASRock

EN2C602-4L/D12EEBASRock

EP2C602EEBASRock

EP2C602/D16EEBASRock

EP2C602-4LEEBASRock

EN2C602-4L/D16EEBASRock

AD2550R/U3S3Mini ITXASRock

S5512ATXTYAN

S7002CEBTYAN

S7040CEBTYAN

S7010EEBTYAN

S7050EEBTYAN

S7052EEBTYAN

S7045EEBTYAN

S7053EEBTYAN

S7012EEBTYAN

S5510MicroATXTYAN

S5515MicroATXTYAN

GA-6UASV3microATXGIGABYTE

GA-6UASL3microATXGIGABYTE

GA-6PXSV4ATXGIGABYTE

GA-6PXSV1ATXGIGABYTE

GA-6PXSV2ATXGIGABYTE

GA-6PXSV3ATXGIGABYTE

GA-7PCSLCEBGIGABYTE

GA-7PESH4EEBGIGABYTE

GA-7PESH2EEBGIGABYTE

GA-7PESH3EEBGIGABYTE

GA-7PESH1EEBGIGABYTE

GA-7PESE3EEBGIGABYTE

GA-7PESLEEBGIGABYTE
