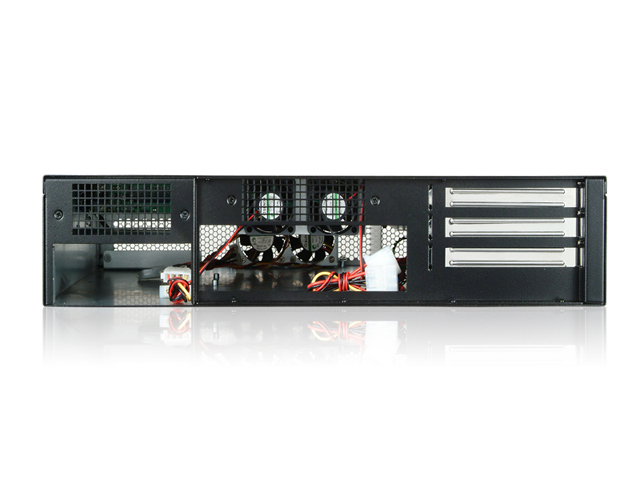

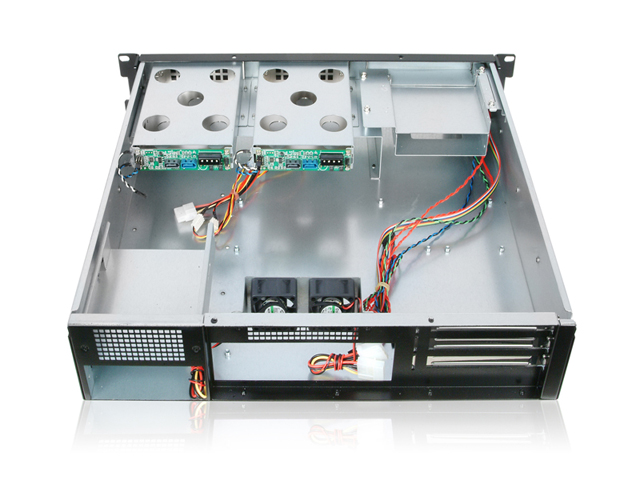

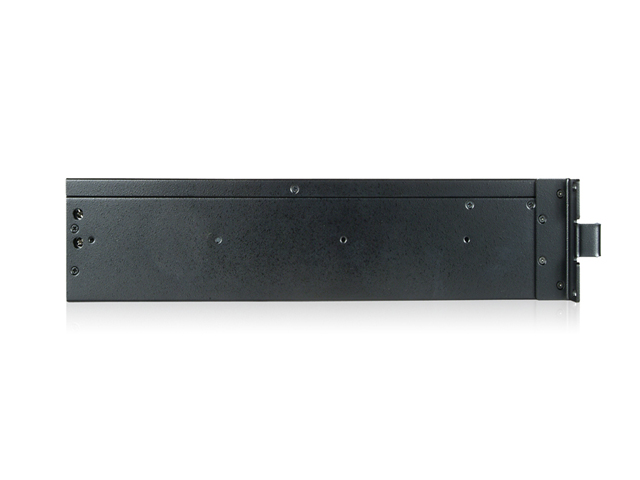

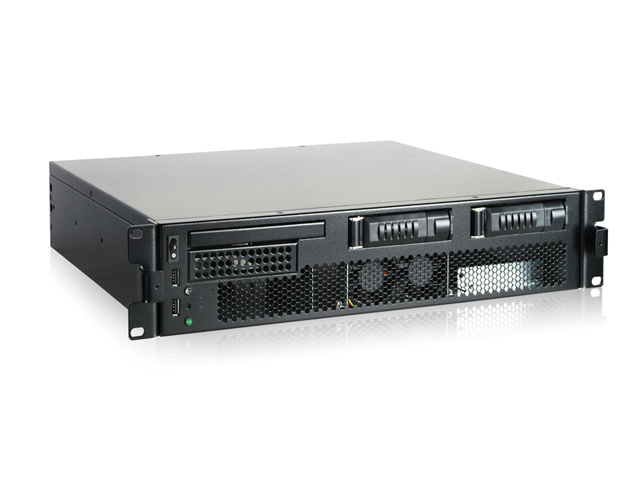

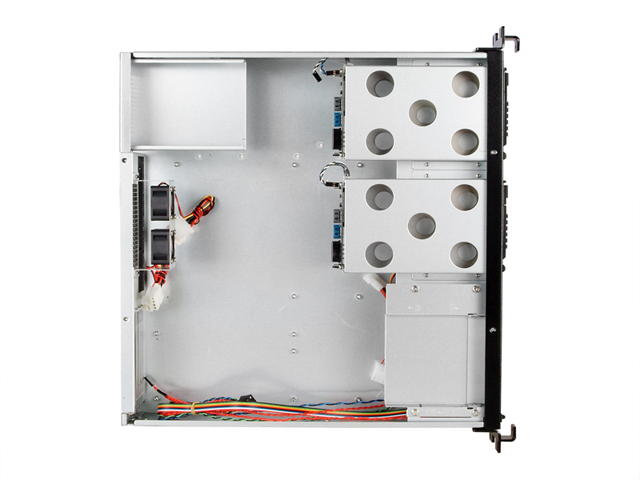

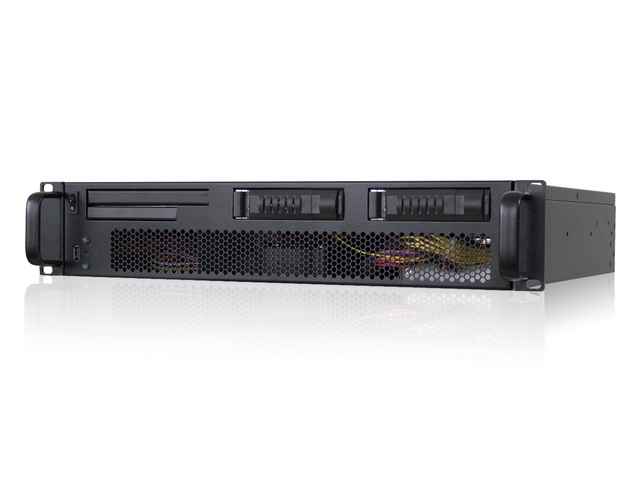

	E2M2R 2U 2-Bay Server Rackmount Chassis Support Redundant Power Supply Ultra Compact 16" Body Depth Fiber Optical Drive Tray Status Indicator Support ATX Motherboard Front Access USB Connector Power & HDD LED Indicator and Power & Reset Switch Fully RoHS Compliance Support 6.0Gb/s SAS/SATA Hard Drives
Product Introduction The E2M2R storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E2M2R a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology to support both latest SAS and SATA hard drives and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	E2M2R
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 1 Hotswap 3.5": 2 Slim 5.25" Optical: 1
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power + HDD LED
Switches	Power On/Off, Reset
Expansion Slots	3
Material of Front Bezel	Texture-Coated
Material of Handle	Aluminum
Material of Main Chassis	Heavy-duty SGCC Cold-rolled Steel
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	2x40mm
Dimensions (WxHxD)	19.00" x 3.50" x 16.00" 482.6 mm x 88.9 mm x 406.4 mm

Download

Product Drawing (PDF)

FAQ

Q	System does not detected HD.
A	Please make sure to connected SATA Cable to Blue color Port from PCB.
Q	What are the Blue SATA port and Black SATA port used for?
A	Blue port is primary port for SAS and SATA HDD. Black port is secondary port for SAS HDD

Optional Accessories

	Model #	Description
	CAGE-SA2SA	Build-to-Order - Internal SATA to internal SATA Cable
	CAGE-4SA2MS	Build-to-Order - 4 SATA to Internal miniSAS Cable
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #	Motherboard Size	Company Name
P8B-C(4L)	ATX	ASUS

P8B-E(4L)	ATX	ASUS

P8B-X	ATX	ASUS

P6T WS Professional	ATX	ASUS

P6X58-E WS	ATX	ASUS

P8B WS	ATX	ASUS

P8C WS	ATX	ASUS

P8P67 WS REVOLUTION	ATX	ASUS

P8Z77 WS	ATX	ASUS

Z9PA-U8	ATX	ASUS

P8B-MX	Micro-ATX	ASUS

C216 WS	ATX	ASRock

E3C204	ATX	ASRock

E3C204-4L	ATX	ASRock

E3C204-V+	ATX	ASRock

E3C204-V4L	ATX	ASRock

H77WS-DL	ATX	ASRock

Z77 WS	ATX	ASRock

AD2550R/U3S3	Mini ITX	ASRock

S5512	ATX	TYAN

S5510	MicroATX	TYAN

S5515	MicroATX	TYAN

GA-6UASV3	microATX	GIGABYTE

GA-6UASL3	microATX	GIGABYTE

GA-6PXSV4	ATX	GIGABYTE

GA-6PXSV1	ATX	GIGABYTE

GA-6PXSV2	ATX	GIGABYTE

GA-6PXSV3	ATX	GIGABYTE
