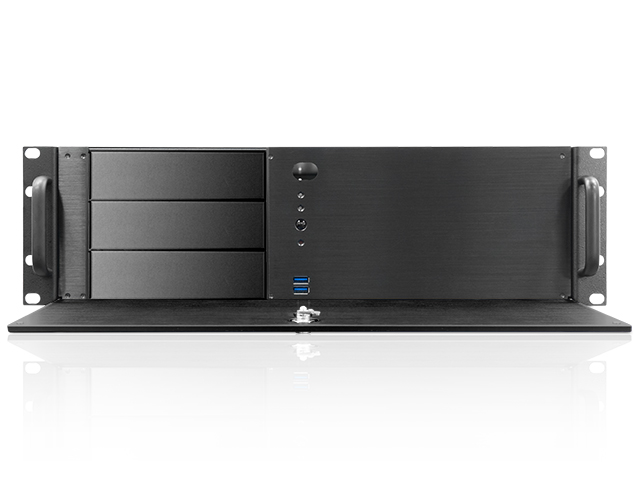

	DN-300-T 3U 5.25" 3-Bay Compact Stylish microATX Chassis Sleek Aluminum Front Door With Magnet Design Rackmount or Desktop Convertible Compatible with ATX PS2 and mini-Redundant Power Supply Three Standard 5.25" Bay Available 2x Front USB 3.0 ports
Product Introduction The DN-105-T, DN-200-T, DN-300-T, DN-400-T series are designed with elegance and functionality fit for Audio/Video industry and Home Theater Personal Computer (HTPC). With the advancement of server racks for office and home, these models are ideal for both rackmount and desktop orientation.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	DN-300-T
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 4 5.25" Drives: 3
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	ATX PS2/ mini-Redundant
Expansion Slots	4
Security	Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 1.0mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan	1x80mm, 1x120mm
Dimensions (WxHxD)	18.98" x 5.25" x 18.25" 482.1 mm x 133.3 mm x 463.5 mm
