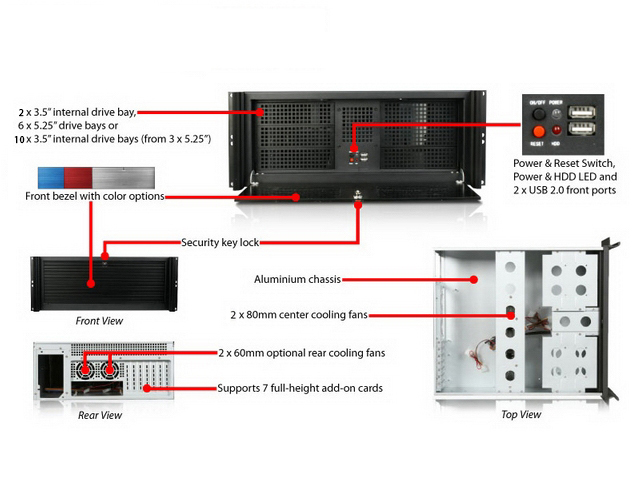

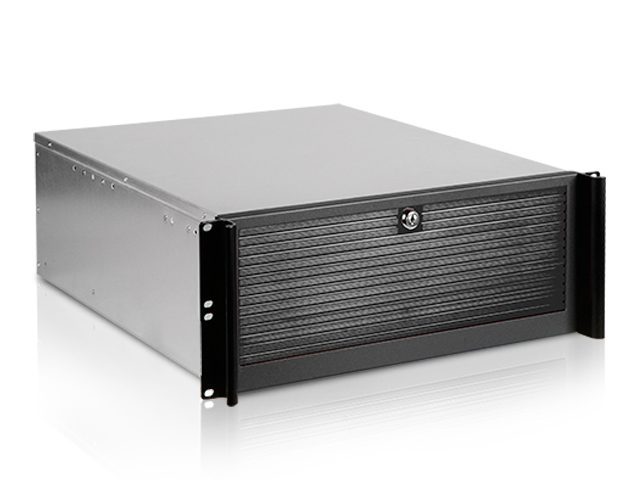

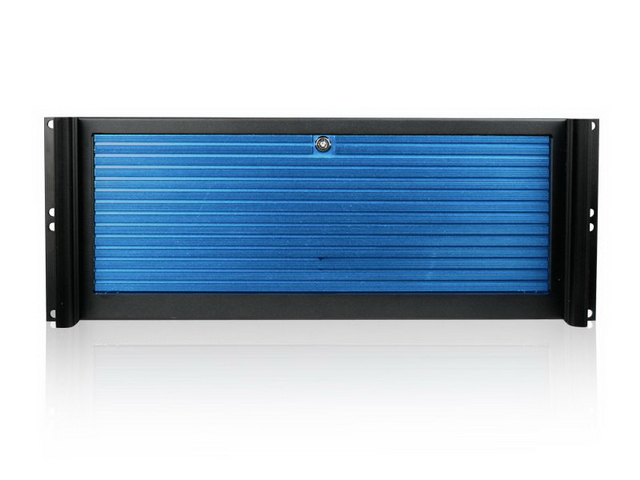

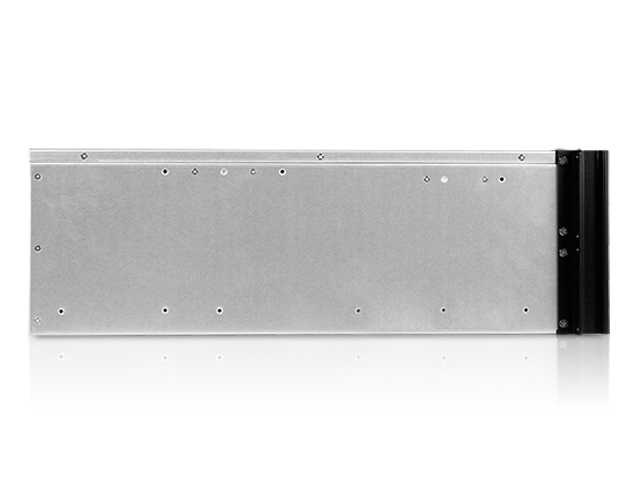

	D-416 4U Compact Stylish Rackmount Chassis Supports Front Access USB2.0 x2 Power and HDD LED Power and Reset Switch Support ATX PS2 Power Supply
Product Introduction D-416 is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416 supports a standard ATX PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-416
RoHS Compliance Version	Yes
Standard Drive Bays	5.25" Drives: 6
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	7
Security	Front Bezel Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Galvanized Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Optional Fan:	80mm x2, 60mm x2
Dimensions (WxHxD)	19.00" x 7.00" x 21.77" 482.6 mm x 177.8 mm x 553.0 mm

Download

Product Drawing (PDF)

FAQ

Q	The difference between the old D-416 and new D-416
A	1. The handle is different: The old handle has threads on it, but the new one is smooth. 2. The fan model # is different.

Optional Accessories

	Model #	Description
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-FDD35	3.5" to 5.25" Floppy Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #

Motherboard Size

Company Name
