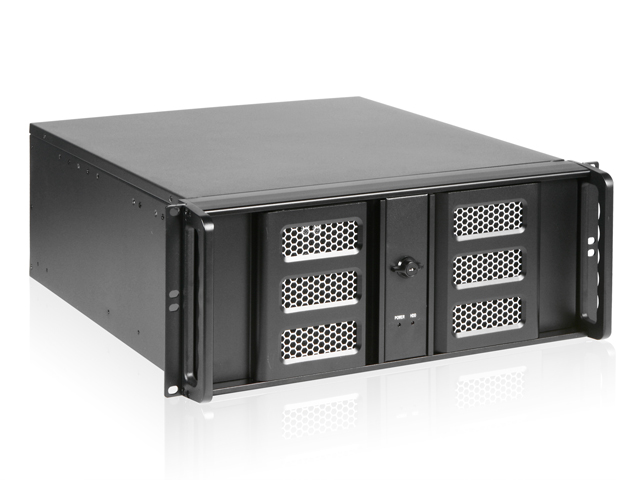

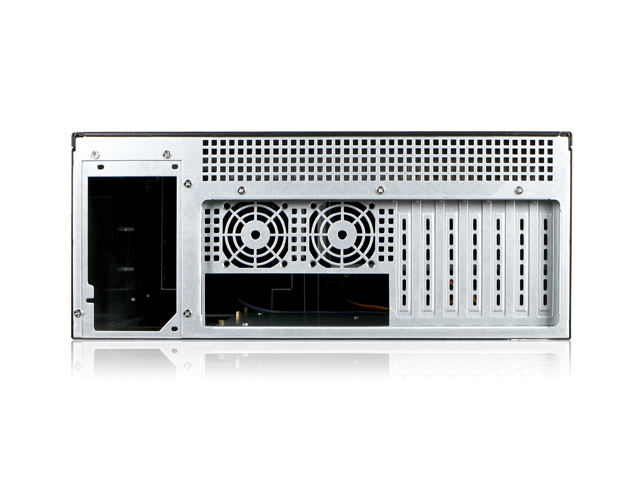

	D-413ASE 4U Compact Aluminum Stylish Rackmount Chassis Industrial Chassis with 17.8" in Depth Front Access USB2.0 Power and HDD LED Power and Reset Switch Support ATX PS2 Power Supply Support 7x Add-on Cards Aluminum Chassis
Product Introduction D-413ASE is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is less than 20" deep in a compact size. In addition, D-413ASE supports a standard ATX PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-413ASE
RoHS Compliance Version	Yes

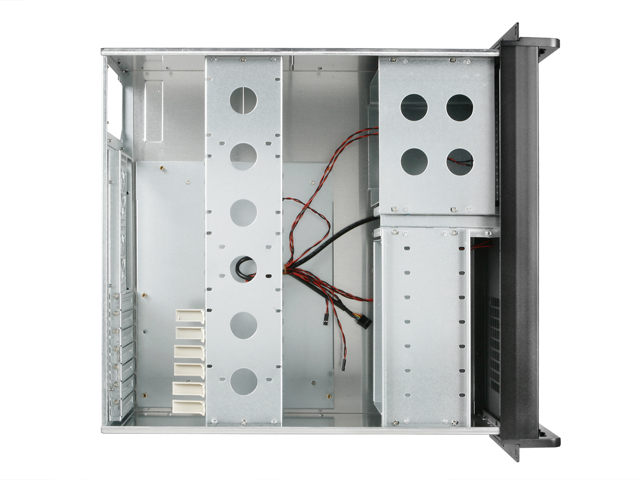

Standard Drive Bays	3.5" Drive (internal): 8 5.25" Drives: 3
Indicators	Power, HDD
Switches	Power, Reset

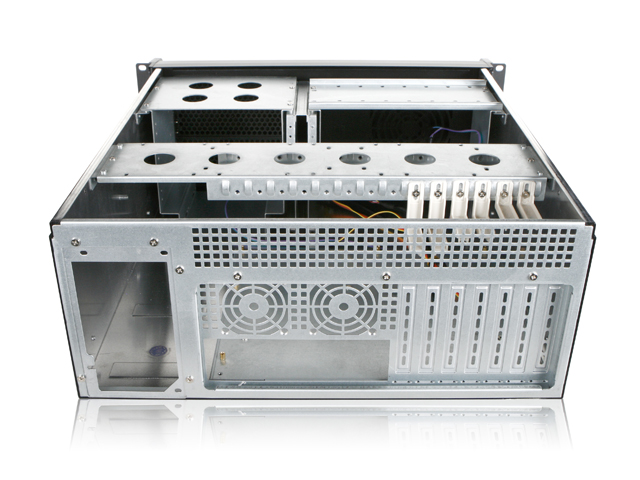

Expansion Slots	7
Security	Front Bezel
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Aluminum
Color of Front Bezel	Black
Color of Main Chassis	Black

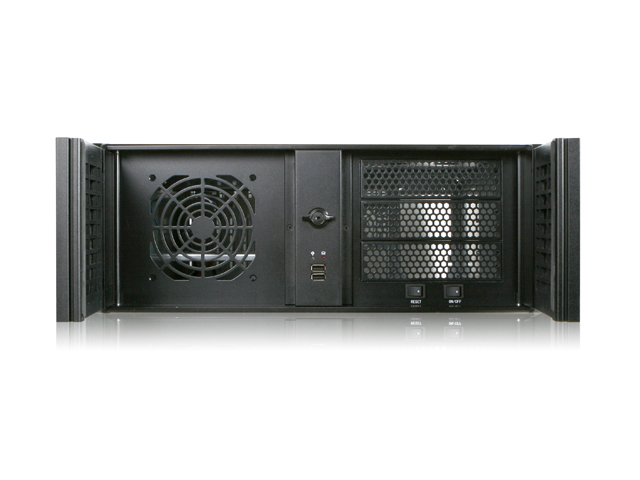

Front Connector	2x USB 2.0

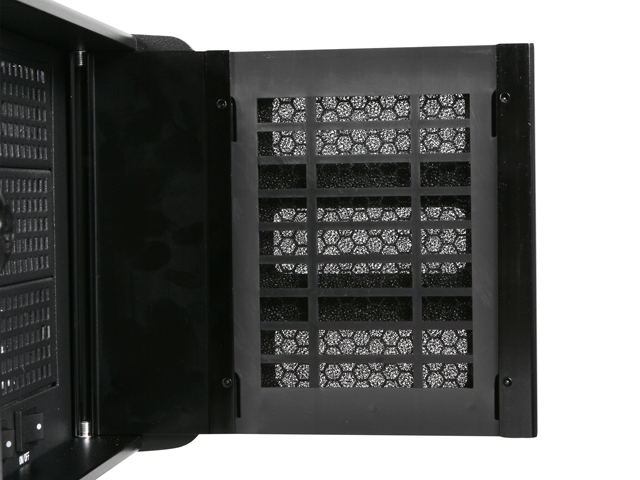

Air Filter	Bezel Filter
Motherboard Size	12 x 9.6 (ATX, microATX)
Optional Fan:	120mm x1, 60mm x2
Dimensions (WxHxD)	19.00" x 7.00" x 20.72" 482.6 mm x 177.8 mm x 526.3 mm

Download

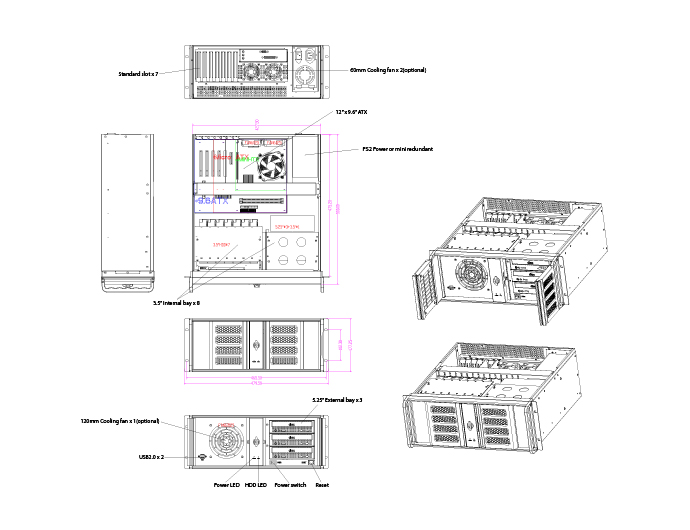

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-FDD35	3.5" to 5.25" Floppy Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD2535F	End of Life - 5.25" Drive Bay Cooling System for Hard Drive
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
