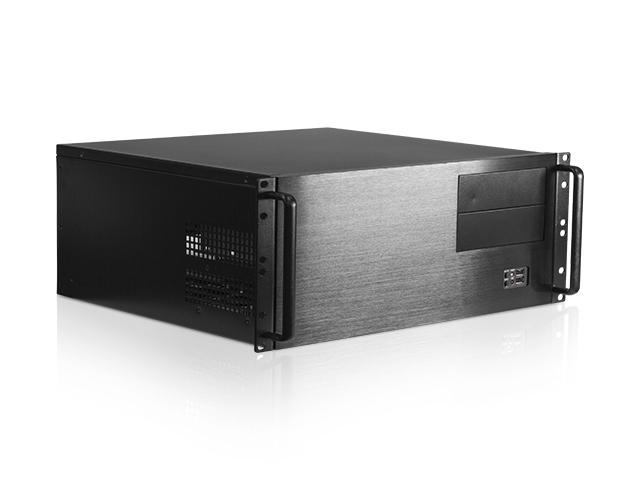

	D-412 4U Compact Stylish Rackmount ATX Chassis Industrial Chassis with 15.5" in Depth Support 7 x Full Height Add-on Cards Support ATX PS2 / mini-Redundant Power Supply Power and Reset Switch Power and HDD LED 80mm x2 Cooling Fan Supports Front Access USB2.0 x2

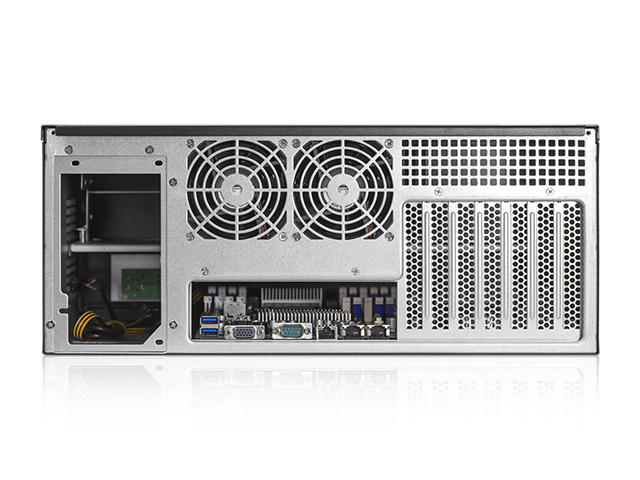

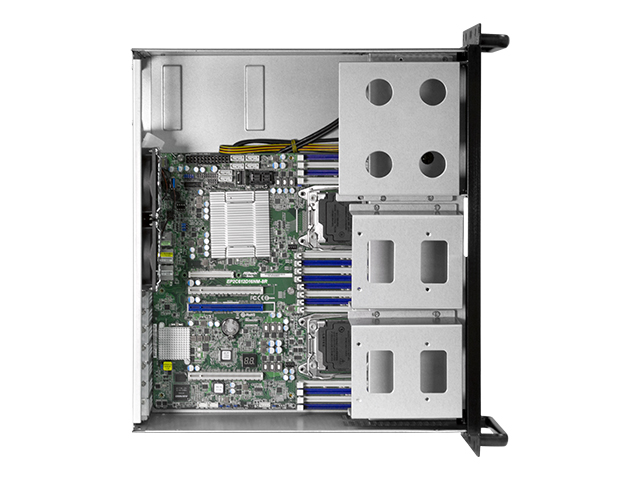

Product Introduction D-412 is a reliable and stable 4U-high 15" depth industrial computer chassis. The full size I/O supports all microATX/ ATX / E-ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is only 15?? deep and has two 80mm cooling fans at rear as standard for air ventilation. In addition, D-412 supports a standard ATX PS2/ mini-Redundant power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-412
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 2 (shared with 3.5 bay) 3.5" Drives: 6 5.25" Drives: 2
Indicators	LEDs for Power ON/OFF & HDD
Switches	Power ON/OFF & Reset
Supported PSU Type	ATX/ miniRedundant PSU
Expansion Slots	7 (up to 220mm deep)
Material of Front Bezel	Aluminum
Material of Main Chassis	Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	Front USB 2.0 x 2 Connector
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	2x80mm
Dimensions (WxHxD)	19.00" x 7.00" x 15.50" 482.6 mm x 177.8 mm x 393.7 mm
Notes	- support ATX PS2 / mini-Redundant power supply up to 200mm in depth.
