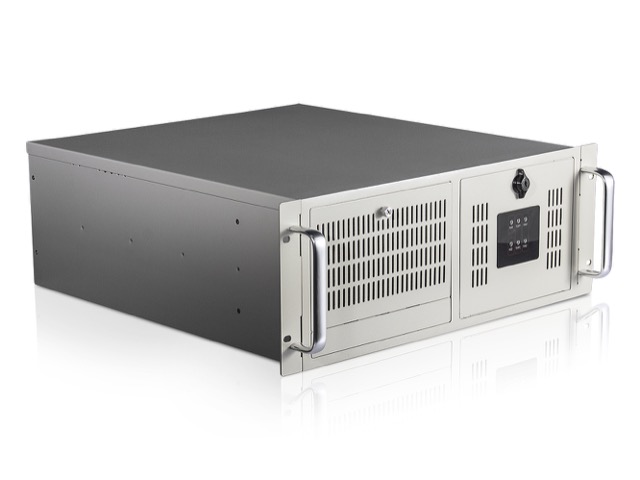

	D-403A-14 4U Compact Rackmount Chassis 120mm x1 Cooling Fan Power and HDD LED Supports 14 Slots Industrial Backplane Front Access USB2.0 x2
Product Introduction The D-403A-14 4U Compact Rackmount Chassis has the durability and flexibility for any situation or task required. The solid steel construction and removable air filter help this chassis stand up to the most rigorous of conditions. The D-403 accepts a full size ATX motherboard or 14 slot industrial backplane. The secure locking 5.25” bay prevents unauthorized access to all of your precious information. The D-403A-14 is the ultimate solution for durable and secure computing.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-403A-14
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drives: 1 5.25" Ext. Bay: 3
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	14
Security	Keylock
Material of Front Bezel	SGCC
Material of Handle	SGCC
Material of Main Chassis	SGCC
Color of Front Bezel	Beige
Color of Main Chassis	Beige
Front Connector	2 x USB 2.0
Air Filter	Yes
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	1x120mm
Optional Fan:	1x120mm
Dimensions (WxHxD)	19.01" x 6.97" x 18.90" 482.9 mm x 177.0 mm x 480.1 mm
