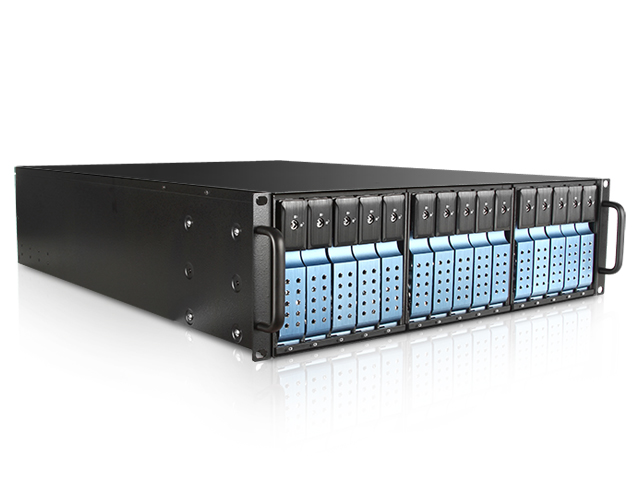

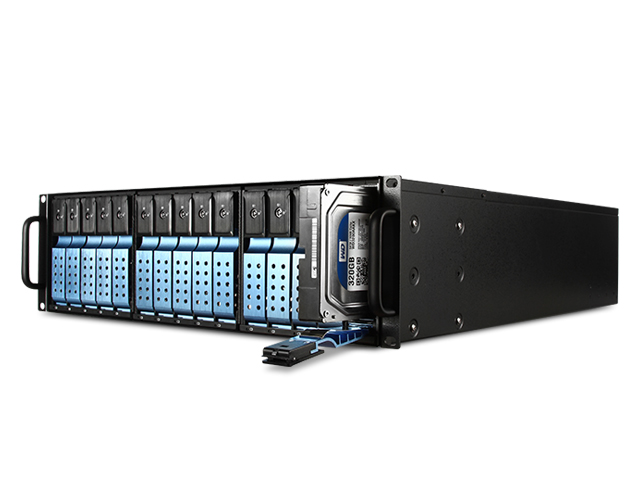

	D-395-3D35 3U 15x 3.5" Bays Trayless Hot-Swap ATX Chassis 15 hot-swappable drive bays in a rackmount 3U Chassis Simultaneously support 6Gb SAS or SATA disk Utilizes industry-standard Audio Video services to monitor enclosure and disk environmental conditions Compatible with ATX Motherboard Power & HDD indicators 2015 Computex d&i awards winner
Product Introduction The D-395-3D35, D-395-3D35-ATX and D-395-3D35-JB series are designed with elegance and functionality. It comes with 15 hot-swappable bays and ideal for high capacity and scalability storage in most popular Audio Video Surveillance environments. With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 3 TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-395-3D35
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 1 Hotswap 3.5": 15
Indicators	Power on/off(real panel)
Switches	Power on/off(real panel)
Supported PSU Type	2U Single/ 2U Redundant PSU
Expansion Slots	7
Security	Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Steel bracket (unable to mount rail.)
Material of Main Chassis	Steel
Color of Front Bezel	Blue
Motherboard Size	ATX
Cooling Fan	5x80mm
Optional Fan:	2x60mm
Ordering Information (Part Number)	Black, Red, Blue, Silver
Dimensions (WxHxD)	18.98" x 5.20" x 23.62" 482.1 mm x 132.1 mm x 599.9 mm
Notes	two 80mm Fan for chassis, three 80mm Fan for HDD Hot-Swap backplane.
