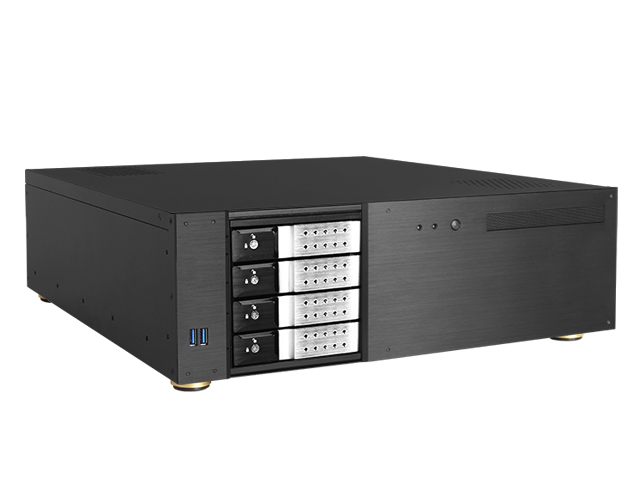

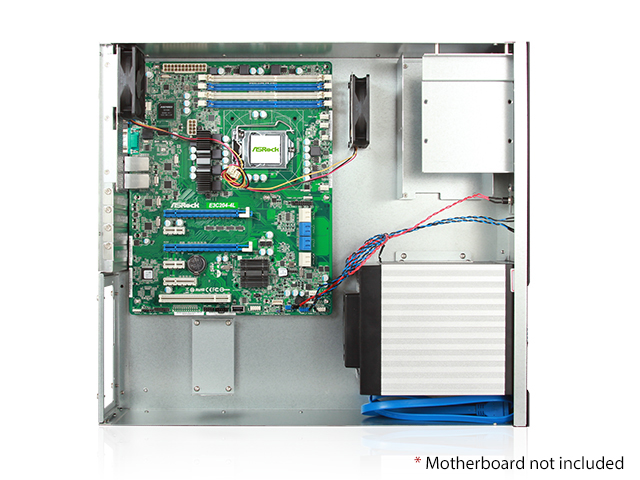

	D-340HN-DT 3U Compact 4x3.5" Bay Trayless Hot-Swap microATX Desktop Chassis 4x Hotswappable and Trayless 3.5" Drive Bays Rackmount or Desktop Convertible Compatible with PS2 and mini-Redundant Power Supply Slim Optical Drive Bay Available Sleek Aluminum Front Panel 2x Front USB 3.0 ports Power & HDD Indicators on Front Panel
Product Introduction The D-230HN-DT, D-260HN-DT, D-340HN-DT, D-350HN-DT, D-380HN-DT, and D-3100HN-DT series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-340HN-DT
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 3 Hotswap 3.5": 4 Slim 5.25" Optical: 1
Indicators	Power, HDD
Switches	Power
Expansion Slots	4
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 0.8mm
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	3x80mm
Optional Fan:	80mm x1

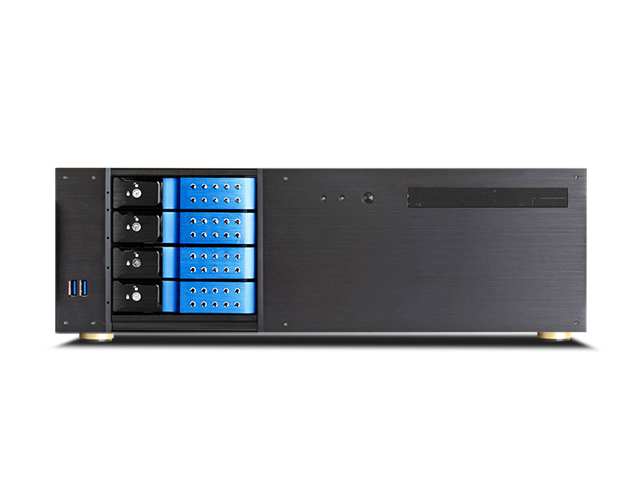

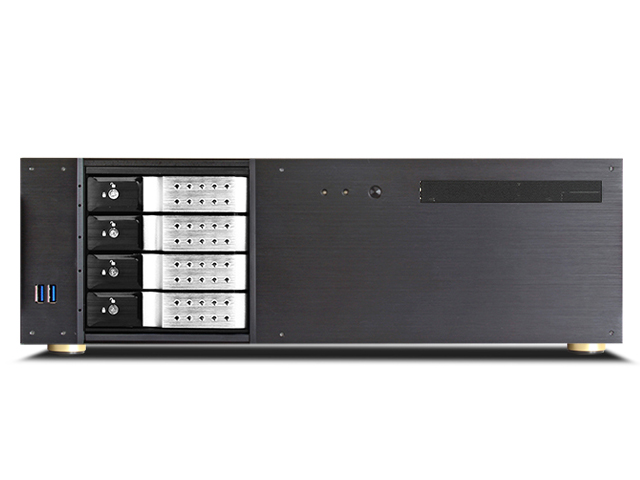

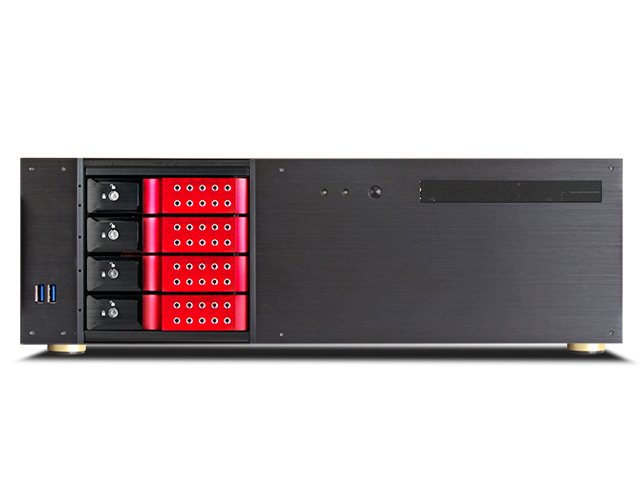

Ordering Information (Part Number)	Black HDD Handle:D-340HN-DT Blue HDD Handle:D-340HN-DT-BLUE Red HDD Handle:D-340HN-DT-RED Silver HDD Handle:D-340HN-DT-SILVER

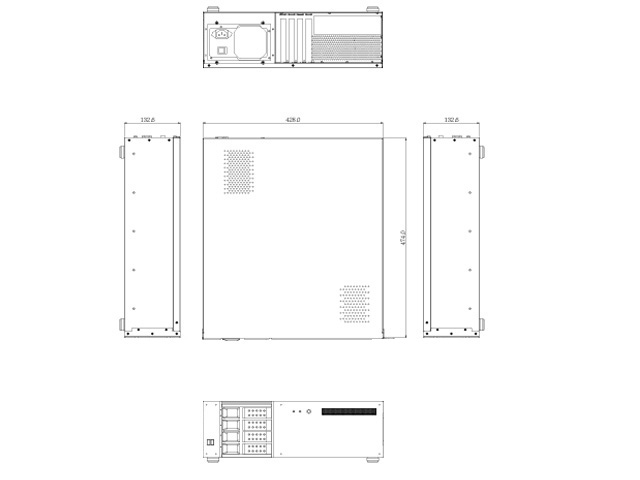

Dimensions (WxHxD)	18.98" x 5.22" x 18.66" 482.1 mm x 132.6 mm x 474.0 mm
Notes	- the first three ATX motherboard slots cannot be used.
