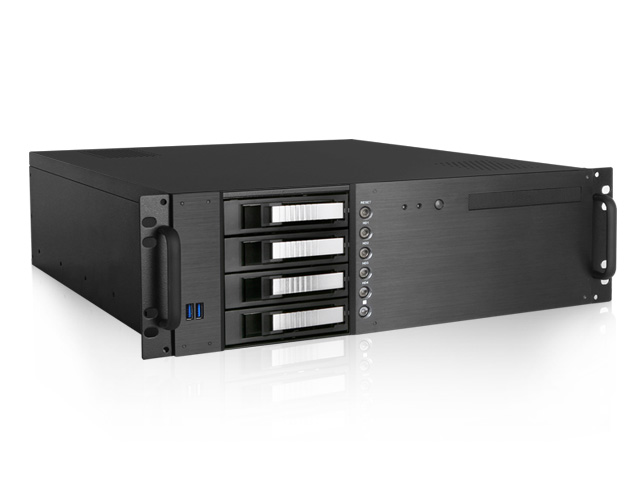

D-340HB-T

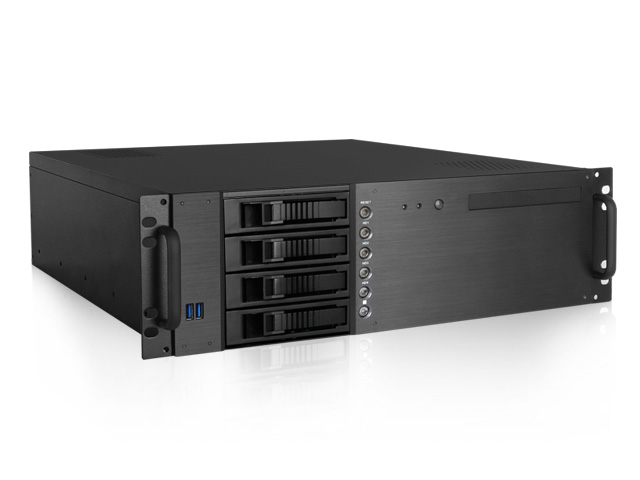

3U Compact 4x3.5" Bay Hot-Swap microATX Chassis

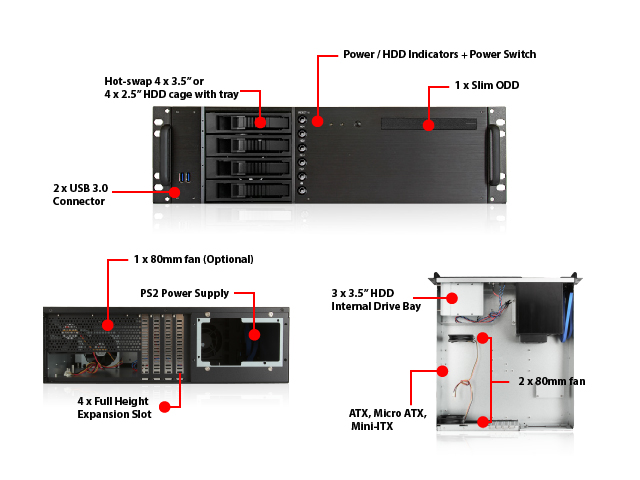

  • 4x Hotswappable 3.5" Drive Bays. Compatible with 2.5" SSD/HDD
  • Compatible with PS2 or mini-Redundant Power Supply
  • Rackmount or Desktop Convertible
  • Slim Optical Drive Bay Available
  • Sleek Aluminum Front Panel
  • 2x Front USB 3.0 ports
  • Power & HDD Indicators on Front Panel



Product Introduction
The D-230HB-T, D-340HB-T, D-350HB-T, D-260HB, D-380HB, and D-3100HB series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the drive cage has tray supporting 3.5" HDD & 2.5" HDD and maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.


Model NumberD-340HB-T
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 3
Hotswap 3.5": 4
Slim 5.25" Optical: 1
IndicatorsPower, HDD
SwitchesPower
Expansion Slots4
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisSGCC 0.8mm
Color of Main ChassisBlack
Front Connector2x USB 3.0

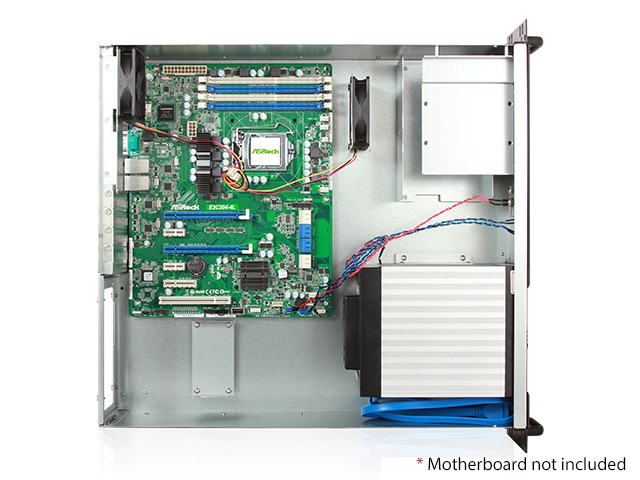

Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan3x80mm
Optional Fan:80mm x1
Ordering Information
(Part Number)

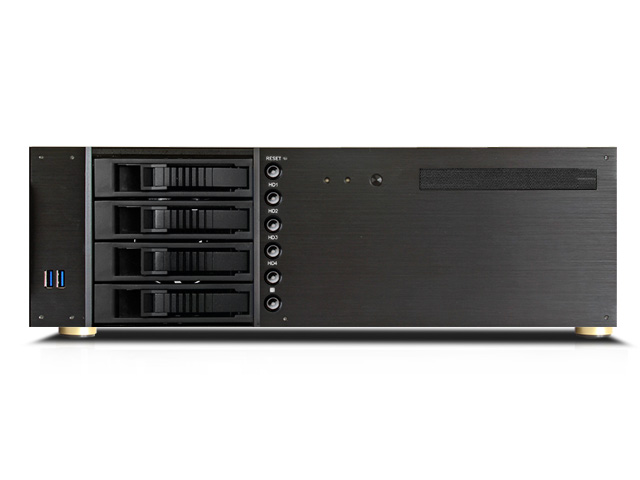

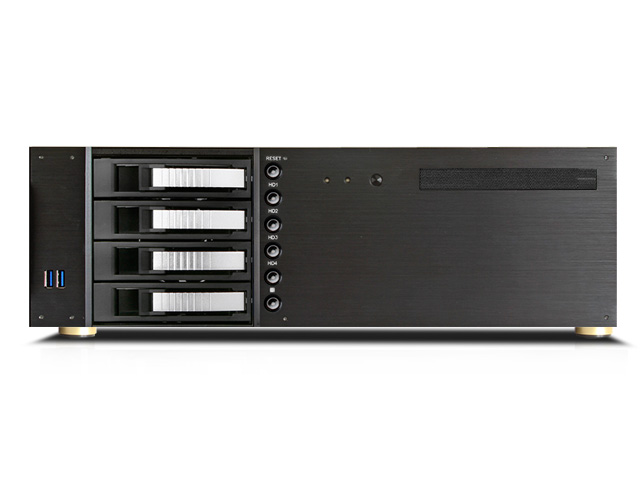

Black HDD Handle:D-340HB-T

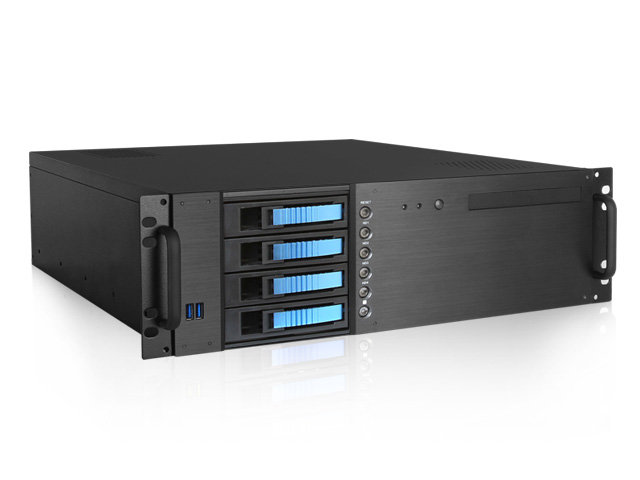

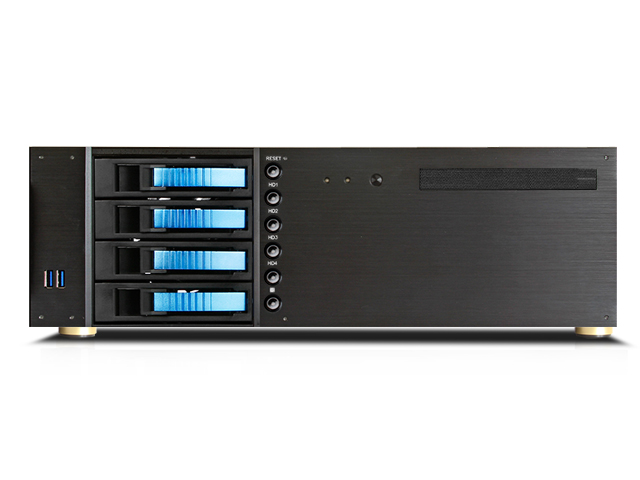

Blue HDD Handle:D-340HB-T-BLUE

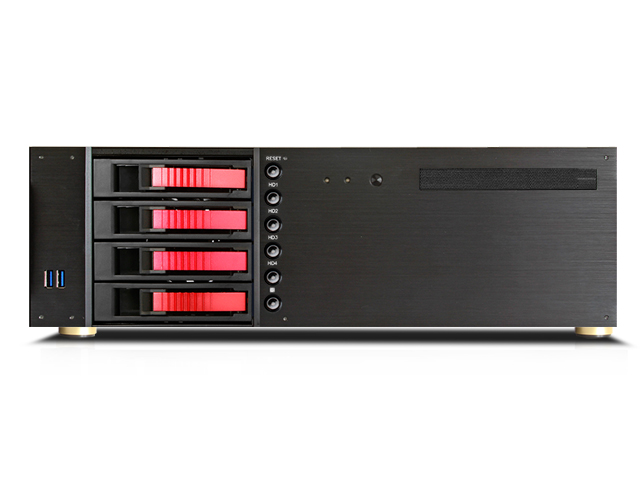

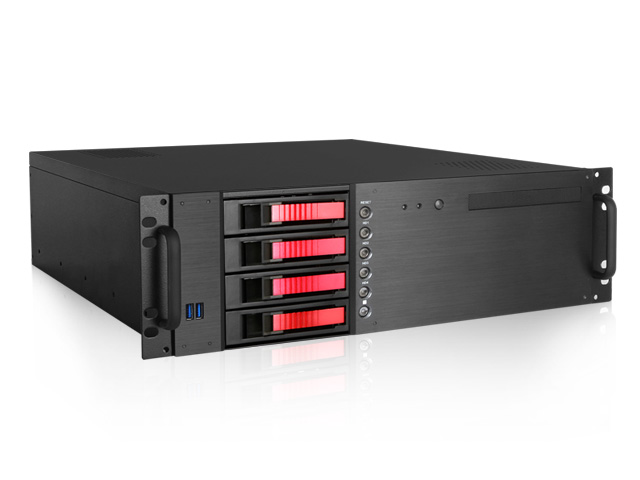

Red HDD Handle:D-340HB-T-RED
Silver HDD Handle:D-340HB-T-SILVER

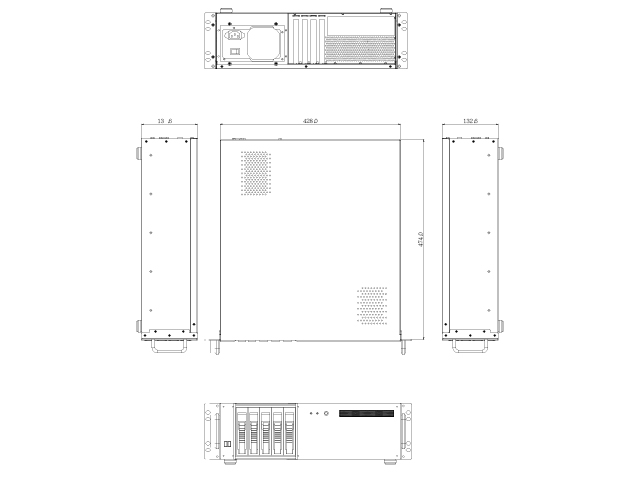

Dimensions (WxHxD)18.98" x 5.22" x 18.66"
482.1 mm x 132.6 mm x 474.0 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
