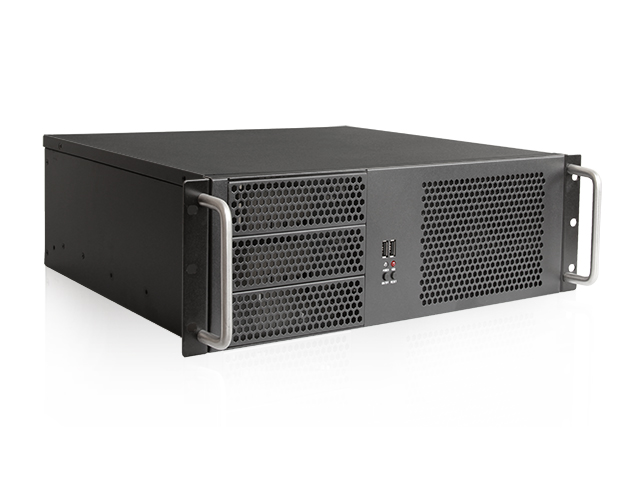

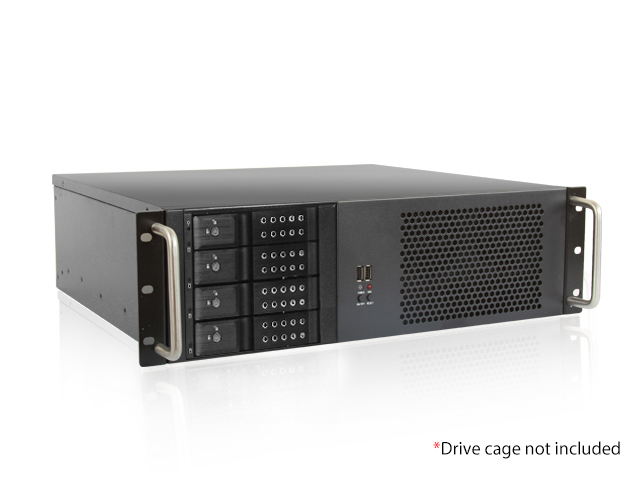

	D-314-MATX 3U Compact Rackmount Chassis compatible with PS2 Power Supply Industrial Chassis with 15" in Depth Supports Front Access USB2.0 x2 Power and HDD LED Power and Reset Switch Support ATX PS2 Power Supply Support 4 x Full Height Add-on Cards

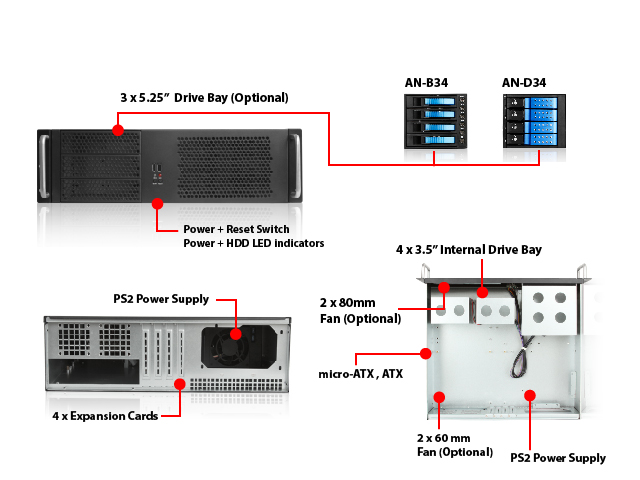

Product Introduction D-314-MATX is a reliable and stable 3U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 15" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-314-MATX
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 4 5.25" Drives: 2+1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	4 (full height & up to 165mm deep with hdds installed)
Material of Front Bezel	SGCC 1.2mm
Material of Handle	Steel
Material of Main Chassis	SGCC 1.2mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	12 x 9.6 (ATX, microATX, mini-ITX)
Optional Fan:	80mm x2, 60mm x2
Dimensions (WxHxD)	19.00" x 5.24" x 16.89" 482.6 mm x 133.1 mm x 429.0 mm
Notes	- when ATX MB installed, the available 5.25" driver bay will reduce to 2 bays, because the ATX MB and the bottom 5.25" conflict. - when Micro ATX MB installed, the 5.25" driver bay will be 3 bays available. - D-314-MATX-U3: USB 3.0 version, please contact sales rep. for more infomation.

Download

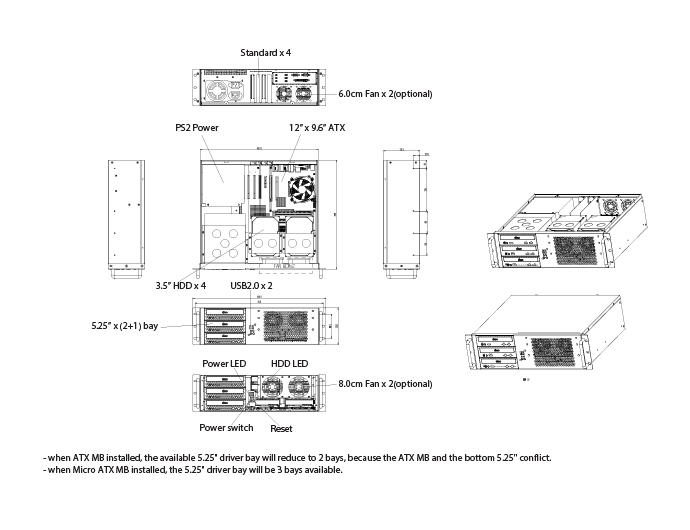

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-FDD35	3.5" to 5.25" Floppy Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD2535F	End of Life - 5.25" Drive Bay Cooling System for Hard Drive
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
